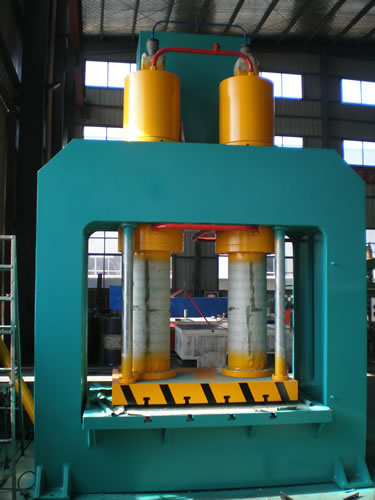

Frame type hydraulic press YHD78
Features:
This kind of machine is mainly suitable for pressing and forming of irregular parts, especially for manufacturing of shipbuilding industry.
Performance Characteristics
1. The computer optimizing structure has the advantage of simple, economical and practical.
2. Cartridge valve integrated system is used to realize hydraulic control. This system has the features of reliable operation, long service life and small hydraulic shock.
3. Individual electrical control system, PLC control
4. Working pressure and slide stroke can be chosen in specified range.
Optional Accessories
1. Movable or rotatable working table
2. Screen protection device
3. Crane lifting device
|
Type |
Master cylinder nominal pressure |
Max. hydraulic pressure |
Opening Height |
Max slide stroke |
Table working ares |
Main motor power |
|
L-R |
F-B |
|
KN |
Mpa |
mm |
mm |
mm |
KW |
|
YHD78-63T |
630 |
25 |
600 |
500 |
1500 |
800 |
7.5 |
|
YHD78-100T |
1000 |
25 |
800 |
500 |
1500 |
800 |
7.5 |
|
YHD78-200T |
2000 |
25 |
800 |
500 |
1500 |
800 |
15 |
|
YHD78-315T |
3150 |
25 |
800 |
600 |
1500 |
800 |
18.5 |
|
YHD78-500T |
5000 |
25 |
800 |
600 |
2000 |
1000 |
22 |
|
YHD78-630T |
6300 |
25 |
800 |
600 |
2000 |
800 |
30 |
|
YHD78-800T |
8000 |
25 |
1000 |
800 |
2200 |
1200 |
44 |
|
YHD78-1000T |
10000 |
25 |
1200 |
800 |
3000 |
1500 |
60 |
