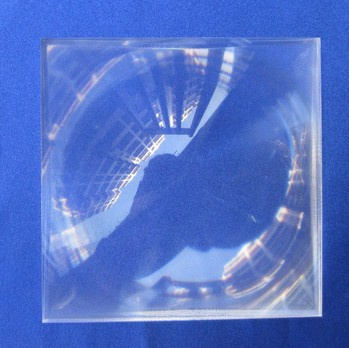

Fresnel Lens Mould (Customization)
| Price: |
US $ 1000.0/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Material of core & core: SAARSTAHL AG 1.2311
Material of mould base: LKM
Cavity: 1x1cavity
Mould life: 500, 000 shots
Lead time: 40 days.
We do raw material producing, mold manufacturing, rapid prototyping, injection molding, compression molding, thermoset plastic molding, extrusion blow molding, precision CNC machining, diamond turning, product assembly and finishing.
| Part No. | Material | Size (mm) | Focal Length (mm) | Thickness (mm) | Groove Pitch (mm) |
| FRL021150 | PMMA | Φ21 | 15 | 1.5 | 0.3 |
| FRL028150 | PMMA | Φ28 | 15 | 2 | 0.4 |
| FRL3030 | PMMA | Φ30 | 30 | 2 | 0.3 |
| FRL3818 | PMMA | Φ38 | 18 | 2 | 0.3 |
| FRL3821 | PMMA | Φ38 | 21 | 2 | 0.3 |
| FRL4426 | PMMA | Φ44.8 | 26.5 | 1.2 | 0.2 |
| FRL5028 | PMMA | Φ50 | 28 | 2 |
|
| FRL5040 | PMMA | Φ50 | 40 | 2 |
|
| FRL5043 | PMMA | Φ50 | 43 | 2 | 0.5 |
| FRL5235 | PMMA | Φ52 | 35 | 2 |
|
| FRL5362 | PMMA | Φ53 | 62 | 2 | 0.5 |
| FRL5672 | PMMA | Φ56.4 | 72 | 2 | 0.3 |
| FRL6490 | PMMA | 64*125 | 90 | 2 | 0.5 |
| FRL8050 | PMMA | Φ80 | 50 | 2 | 0.5 |
| FRL8070 | PMMA | Φ80 | 70 | 2 | 0.5 |
| FRL80120 | PMMA | 80*54 | 120 | 1 | 0.5 |
| FRL84150 | PMMA | 84*57 | 150 | 2 | 0.35 |
| FRL86406 | PMMA | 86*54 | 406 | 1.5 | 0.25 |
| FRL88135 | PMMA | Φ88 | 135 | 2 | 0.3 |
| FRL9050 | PMMA | Φ90.5 | 50 | 2 |
|
| FRL10043 | PMMA | Φ100 | 43 | 2 |
|
| FRL10068 | PMMA | Φ100 | 68 | 2 | 0.125 |
| FRL10090 | PMMA | 100*100 | 90 | 2 |
|
| FRL100120 | PMMA | Φ100 | 120 | 2 | 0.5 |
| FRL11060 | PMMA | Φ110 | 60 | 2 |
|
| FRL120100 | PMMA | 120*120 | 100 | 2 |
|
| FRL13050 | PMMA | Φ130 | 50 | 2 |
|
| FRL15070 | PMMA | Φ150 | 70 | 2 | 0.3 |
| FRL150185 | PMMA | 150*90 | 185 | 2 | 0.3 |
| FRL150190 | PMMA | 150*150 | 190 | 2 |
|
| FRL160205 | PMMA | Φ160 | 205 | 2 |
|
| FRL163120 | PMMA | 163*107 | 120 | 2 | 0.3 |
| FRL170150 | PMMA | Φ170 | 150 | 2 |
|
| FRL18080 | PMMA | Φ180 | 80 | 2 |
|
| FRL198140 | PMMA | Φ198 | 140 | 2 | 0.5 |
| FRL200100 | PMMA | Φ200 | 100 | 2 |
|
| FRL200120 | PMMA | Φ200 | 120 | 2 | 0.5 |
| FRL200140-1 | PMMA | Φ200 | 140 | 2 |
|
| FRL200140-2 | PMMA | 200*200 | 140 | 2 |
|
| FRL200200 | PMMA | Φ200 | 200 | 2 | 0.5 |
| FRL200170 | PMMA | 200*170 | 170 | 2 | 0.3 |
| FRL200260 | PMMA | Φ200 | 680 | 2 | 0.5 |
| FRL201250 | PMMA | 201*201 | 250 | 4 | 1 |
| FRL205120 | PMMA | Φ205 | 120 | 2 | 0.5 |
| FRL220130 | PMMA | Φ220 | 130 | 2 |
|
| FRL220240 | PMMA | Φ220 | 240 | 2 |
|
| FRL220600 | PMMA | Φ220 | 600 | 1 |
|
| FRL235182 | PMMA | 235*235 | 182 | 3 | 0.5 |
| FRL238248 | PMMA | 238*238 | 248 | 4 | 1 |
| FRL238300 | PMMA | 238*238 | 300 | 3.5 | 0.5 |
| FRL240128 | PMMA | 240*180 | 128.3(f1:330 f2:210) | 4 | 0.5 |
| FRL25090 | PMMA | Φ250 | 90 | 2 |
|
| FRL250120 | PMMA | Φ250 | 120 | 2 |
|
| FRL250180 | PMMA | Φ250 | 180 | 2 |
|
| FRL250235 | PMMA | Φ250 | 235 | 3 | 0.5 |
| FRL250290 | PMMA | Φ250 | 290 | 2 |
|
| FRL250370 | PMMA | Φ250 | 370 | 3 | 0.5 |
| FRL260370 | PMMA | 260*260 | 370 | 2 |
|
| FRL268250-1 | PMMA | 268*249 | 250 | 3.75 | 1 |
| FRL268265-1 | PMMA | 268*249 | 265 | 3.75 | 1 |
| FRL268250-2 | PMMA | 268*256 | 250 | 3.75 | 1 |
| FRL268265-2 | PMMA | 268*257 | 265 | 3.75 | 1 |
| FRL268265-3 | PMMA | 268*265 | 265 | 3.75 | 1 |
| FRL268100 | PMMA | Φ268.5 | 100 | 2.2 | 0.5 |
| FRL270250 | PMMA | 270*250 | 250 | 3 | 1 |
| FRL270254 | PMMA | 270*254 | 250 | 3 | 1 |
| FRL270310 | PMMA | 270*270 | 310 | 2 |
|
| FRL277406 | PMMA | 277*212 | 406 | 2 | 0.5 |
| FRL280128 | PMMA | 280*280 | 128.3(f1:330 f2:210) | 4 | 0.5 |
| FRL280220-2 | PMMA | 280*280 | 220 | 2 | 0.5 |
| FRL280220-4 | PMMA | 280*280 | 220 | 4 | 0.5 |
| FRL280330 | PMMA | 280*280 | 330 | 4 | 0.5 |
| FRL280400 | PMMA | Φ280 | 400 | 2 |
|
| FRL280410 | PMMA | Φ280 | 410 | 2 |
|
| FRL300260 | PMMA | Φ300 | 260 | 2 |
|
| FRL300310 | PMMA | 300*300 | 310 | 2 |
|
| FRL300220 | PMMA | Φ300 | 220 | 2 |
|
| FRL300300 | PMMA | 300*300 | 300 | 3 |
|
| FRL300406 | PMMA | 300*250 | 406 | 2 | 0.5 |
| FRL3002000 | PMMA | 300*300 | 2000 | 3 |
|
| FRL305365 | PMMA | 305*305 | 365/365 | 4 | 0.4 |
| FRL305368-1 | PMMA | 305*305 | 368/368 | 4 | 0.5 |
| FRL305368-2 | PMMA | 305*305 | 368/368 | 4 | 0.5 |
| FRL310132 | PMMA | 310*310 | 132(f1:330 f2:220) | 4 | 0.4 |
| FRL310182 | PMMA | 310*310 | 182/406 | 3.8 | 0.5 |
| FRL310214 | PMMA | 310*310 | 214/326 | 4 | 0.5 |
| FRL310220 | PMMA | 310*310 | 220 | 2 | 0.5 |
| FRL310330 | PMMA | 310*310 | 330 | 2 | 0.5 |
| FRL310350 | PMMA | 310*310 | 350 | 5 | 1 |
| FRL318220 | PMMA | 318*250 | 220 | 2 | 0.5 |
| FRL318317 | PMMA | 318*250 | 317 | 2 | 0.5 |
| FRL330350 | PMMA | 330*330 | 350 | 3 |
|
| FRL340350 | PMMA | 340*236 | 598 | 4 | 0.3 |
| FRL340350 | PMMA | 340*340 | 350 | 5 | 1 |
| FRL345350 | PMMA | 345*345 | 350 | 5 |
|
| FRL350350 | PMMA | 350*336 | 350 | 5 | 1 |
| FRL350370 | PMMA | 350*350 | 370 | 3 |
|
| FRL358350 | PMMA | 358*350 | 350 | 5 | 1 |
| FRL372800 | PMMA | 372*282 | 800 | 2 | 0.2 |
| FRL3721150 | PMMA | 372*280 | 1150 | 2 | 0.2 |
| FRL380450 | PMMA | Φ380 | 450 | 2 |
|
| FRL385800 | PMMA | 385*315 | 800 | 2 | 0.5 |
| FRL395550 | PMMA | 395*320 | 550 | 2 | 0.3 |
| FRL395220 | PMMA | 395*395 | 220 | 2 | 0.5 |
| FRL395330 | PMMA | 395*395 | 330 | 2 | 0.5 |
| FRL400120 | PMMA | 400*200 | 120 | 2 | 0.5 |
| FRL400330 | PMMA | 400*320 | 330 | 2 | 0.2 |
| FRL400500 | PMMA | 400*320 | 500 | 2 | 0.3 |
| FRL400650 | PMMA | 400*320 | 650 | 2 | 0.6 |
| FRL420480 | PMMA | Φ420 | 480 | 3 | 0.8 |
| FRL420220 | PMMA | 420*420 | 220 | 2 | 0.3 |
| FRL420330 | PMMA | 420*420 | 330 | 2 | 0.3 |
| FRL420520 | PMMA | 420*260 | 520 | 4 | 0.3 |
| FRL430900 | PMMA | 430*380 | 900 | 2 | 0.3 |
| FRL431630 | PMMA | 431*401 | 630 | 2 | 0.5 |
| FRL488120 | PMMA | 488*488 | 120 | 3 | 0.5 |
| FRL490540 | PMMA | Φ490 | 540 | 3 | 0.8 |
| FRL500200 | PMMA | 500*220 | 200 | 4 | 0.3 |
| FRL520620 | PMMA | 520*520 | 620 | 3 | 0.8 |
| FRL1000880 | PMMA | 1000*1000 | 880 | 3 | 0.5 |
| FRL11001100 | PMMA | 1100*1100 | 1100 | 5 | 0.5 |
| FRL11001300 | PMMA | 1100*1100 | 1300 | 5 | 0.5 |
| FRL1212150 | PMMA | 1212*13 | 150 | 3.5 | 1 |
| FRL13281100 | PMMA | 1328*747 | 1100 | 2 | 0.14 |
| FRL13281100 | PMMA | 1439*809.5 | 2000 | 5 | 0.5 |
| Prod Model: |
GFL-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
PMMA |
| Customization: |
Yes |
| Shaping Mode: |
Plastic Molding Die |
| Process Combination Type: |
Single-Process Mode |
| Installation: |
Fixed |
