FRP Horizontal Tank and Septic Tanks Winding Machine
Performance Feature

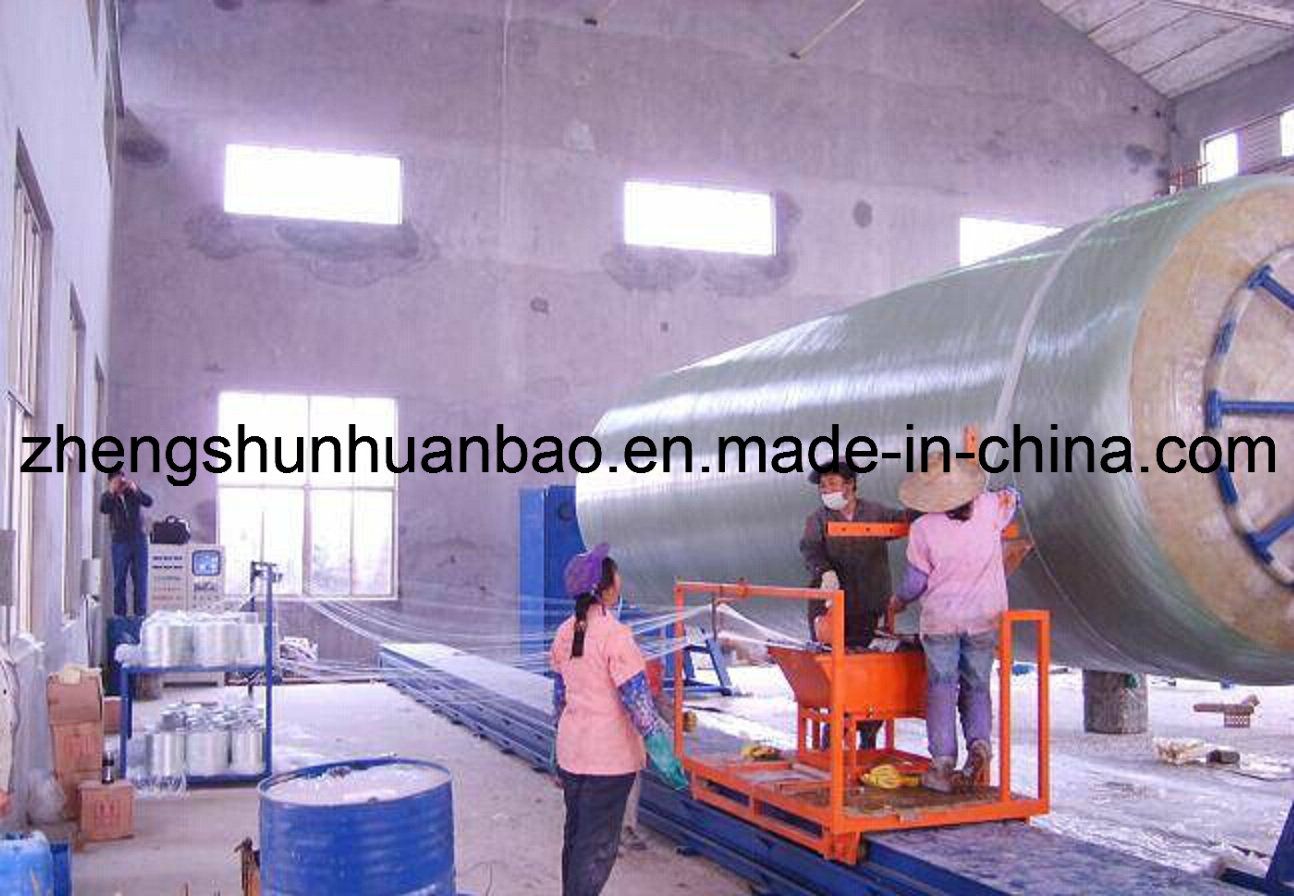

Horizontal winding machine of FRP vessel is mainly used to produce and manufacture the FRP horizontal winding molded vessels as well as the related winding molded products, such as FRP storage tank, fermentation tank, integral septic tank, large FRP chimney, FRP transportation tank, FRP tank for water treatment and etc.
It is divided into DN4000MM and DN4000-DN10000mm winding machine. The winding machine below DN4000mm is used in the workshop for producing vertical and horizontal tanks. While the DN4000-DN10000mm winding machine is fit for manufacturing on site. It can save the manufacturing cost and transportation problem effectively.
Series FRP tank machine of FWLS type is mainly used to produce the FRP winding molded products.
Horizontal Winding Machine of FRP Tanks |
Equipment No Item Name | FWWS-2500 | FWWS-4000 | FWWS-10000 |
Pipe diameter,IDmm | Φ500-Φ2500 | Φ800-Φ4000 | Φ4000-Φ10000 |
Product length,mm | ≤12000 | ≤12000 | ≤12000 |
Winding angle | 45 º90 º | 45 º90 º | 45 º90 º |
Max weight of product ,kg | 8500 | 12000 | 28000 |
Rotating speed of main shaft ,r/min | ≤45 | ≤35 | ≤18 |
Transmission method | Pinion and rack | Pinion and rack | Pinion and rack |
Control method | manualsemi automaticautomatic | manualsemi automaticautomatic | manualsemi automaticautomatic |
Coordinate speed of vehicle ,m/min | 45 | 45 | 45 |
Precision of lining up yarn ,mm | ±1 | ±1 | ±1 |
Repositioning accuracy ,mm | 0.2 | 0.2 | 0.2 |
Max speed of pulling yarn ,m/min | 90 | 90 | 90 |
Max width of yarn tape ,mm | 200 | 200 | 200 |
Winding type | Reciprocating cross, hoop direction | Reciprocating cross, hoop direction | Reciprocating cross, hoop direction |
Winding roving capacity,each | 60 | 60 | 80 |
Resin type | Unsaturated polyester, vinyl ester, etc. | Unsaturated polyester, vinyl ester, etc. | Unsaturated polyester, vinyl ester, etc. |
Yarn framea kind of inner pulling yarn | Tension adjustable yarn frame of mechanical type | Tension adjustable yarn frame of mechanical type | Tension adjustable yarn frame of mechanical type |
Impregnation groove,stainless steel | Roller impregnation or immersion impregnation | Roller impregnation or immersion impregnation | Roller impregnation or immersion impregnation |
Production capacity ,kg/h | 800 | 1200 | 2000 |
Total installed capacity , kw | 10.5 | 12.5 | 18.5 |
Areas covered by production linelength × width × heightm | 18×9×2.5 | 18×9×3 | 20×15×7 |
Option Collocation
Resin pre-accelerated agitator tank
Pneumatic glass fiber chopped spray gun
Adjustable resin pump
Adjustable catalyst flowmeter
Company information
Hebei Zhengshun Environmental Protection Equipment Co.,Ltd is a leading manufacturer and expoter about frp machines and frp products in China.Our factory in the FRP Base Hengshui city,Hebei province.We can produce the machine and products according to customers requirements and give you the best service.
We can supply frp tank winding machine,frp pipe winding machine,frp grating machine,frp pultrusion machine,frp grating,frp water tank,frp cooling tower,frp pipe and other frp products.Welcome contact us and visit our factory
1.Q:Are you factory or trading company ?
A:We are Factory produce frp machines and frp products.
2.Q:If can customzied by customers requirements?
A:yes,we can produce the machine with customized size.
3.Q:How about the payment?
A:50% T/T in advance and the blance should be paid before delivery.
4.Q:What is the guarntee?
A:Gurantee is one year
5.Q:If you can training?
A:yes ,we can training in our factory also can send engineers to your factory training.
Hengshui is a big base of FRP products in Hebei, China. We-Zhengshun are one leader manufacturer and exporter of FRP products, we are also in charge of installation engineering and maintenance service. With so many years technological know-how, we are in capacity of manufacturing according to special design request, aiming to supply high-quality products and good performance.
Our main products are FRP pipeline, cooling tower, gas scrubber, fan series, air-conditioning equipments, molding grating, water tank, anticorrosion project HVAC systerm. At the moment, we have FW-4000 computer-control enlace machine, extrusion machine, bending machine, rolling machine, cutter, patterns of cool tower, air-blower, chairs, pultruded, spraying, RTM equipment, etc. All kinds of quality control equipments are superior in all over the world.
Our factory has obtained ISO9001: 2000 Quality System Certificate, British Royal UKAS certificate, ISO14001 certificate, ISO1800 certificate, National Grade II Installation Certificate of Anti-corrosion, Mechanical and Electronic.
At the moment, Zhengshun products have been supplied to overseas especially Europe and Southeast Asia. On the request of domestic and international market, we constantly challenge with new technological development and provide high quality and reliable products and services.
