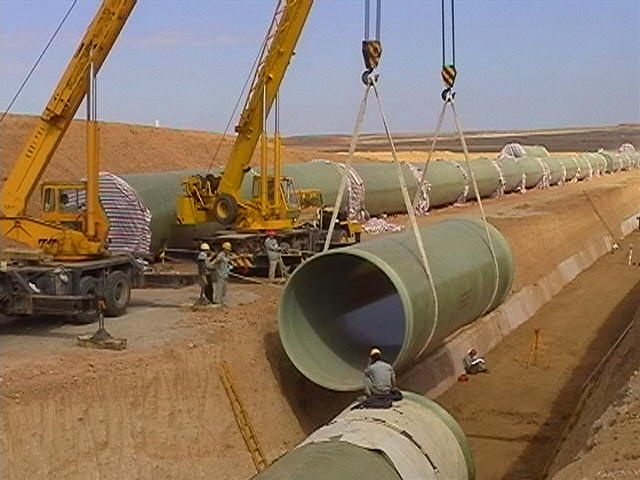

FRP Pressure Pipe
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Meter |
| Pay Type: |
L/C,T/T |
Zhongyi FRP Co., Ltd manufactures filament wound pipe, pipe fittings and flanges of different diameter in accordance with standards published by ASTM, ANSI, AWWA, ASME. Pipe, pipe fittings and flanges are manufactured from corrosion resistant epoxy vinyl ester, polyester, isophthalic resins.
Pipes & ducts
Pipes & ducts are manufactured using the "Dual helix" filament winding process on computer controlled machines. By adjusting the relative speed of mandrel rotation and glass distribution head movement, helical reinforced layers with different angles can be wound. In order to increase the pipe stiffness, especially on large diameter pipes, silica sand can be added to parallel layers of wall.
Nominal diameter
Nominal size of pipe and fitting is based on internal diameter. The range of available sizes is 15 to 4000 mm.
Nominal pressure classes:
Pipes and fittings are classified according to nominal pressure. Standard pressure classes are 2.5,4, 6, 10, 16, 20 and 25 bars. Intermediate or higher-pressure classes are considered on request or depending on the design parameters and conditions
Nominal lengths
Pipes have a length of six meters up to DN150 and 12 meters for bigger diameters.
Fittings
A wide range of fittings as elbows, reducers, tees, caps, flanges etc. is available.
Fittings are manufactured by the hand lay-up, contact molding and spray-up process. In hand lay-up and contact molding processes veil and alternate layers of mat and woven roving saturated with resin are applied on the mold. In spray-up process continuous strand roving is fed through a chopper gun, combined with catalyzed resin, and sprayed onto the mould surface.
Prefabrication spools
Prefabricated spools save installation time as well as costs, freeing the designer from being limited to standard fittings and allowing junction sizes shapes to be specified and manufactured as a better alternative to a complex series of joints.
| Prod Model: |
DN15--4000MM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Hebei Acme ZhongYi Composites Co., Ltd is a private joint-stock enterprises specilized in FRP products and it established in Sep 2003. The corporate headquarters is located in Wumashan Industrial Zone, Zanhuang County, Shijiazhuang City, Hebei province and it covering an area about 60000 square meters. In Nov 2010, the company set up a branch in Weichang County, Chengde City, covers an area of 54000 square meters, in DEC 2012 it completed and put into operation. There are more than 200 employees and 25 technicians among them. Our company has an experienced production team, advanced production technology, production equipments and complete inspection methods. In the year of 2006, it successfully passed the GB/T ISO 9001: 2000 quality management system. It passed the GB/T ISO 9001: 2008 quality management system and GB/T ISO 14001: 2008 environment management system authentication in Jun 2014.
The company is mainly engaged in design, manufacturing and installation of all types of FRP products:
FRP pultruded profiles;
FRP Pipes;
FRP Tanks;
Had lay-up products;
SMC Products;
Moulded Gatings;
Carbon fibre products;
Integrated communication of embellished antenna.
At present, the company has 3 production lines of micro control FRP winding pipe; 2 production lines of FRP Tank; 6 production lines of pultrusion profiles; 11 sets equipment of Moulded Grating, 3 production lines of integrated communication of embellished antenna and 3 Sets equipment of 315 tons SMC products. In Oct 2011 we establish "Equipment department" is mainly engages in researching and manufacturing equipment for new composite materials. In Sep 2012, we independent research and development of automatic surface slotting production line for FRP pultruded rod and it can slot 300000 pieces one day.
"Acme" is taken the meaning from English"Acme(Top)", which is the gold of "remarkable management, keep improving" that the Acme people always pursue. The company will never change the idea of " first-class quality, credit above all; , bring in the domestic and international advanced technology constantly, strengthen products quality, strive to develop the high precise products to meet the market demand, serve the society better with all circles together.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
