Fs1325m China Supplier Stone Series CNC Router

Fs1325m China Supplier Stone Series CNC Router
Price: US $ 10000-30000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
FS1325M china supplier stone series cnc router


1.Working Area 1300*2500*200mm

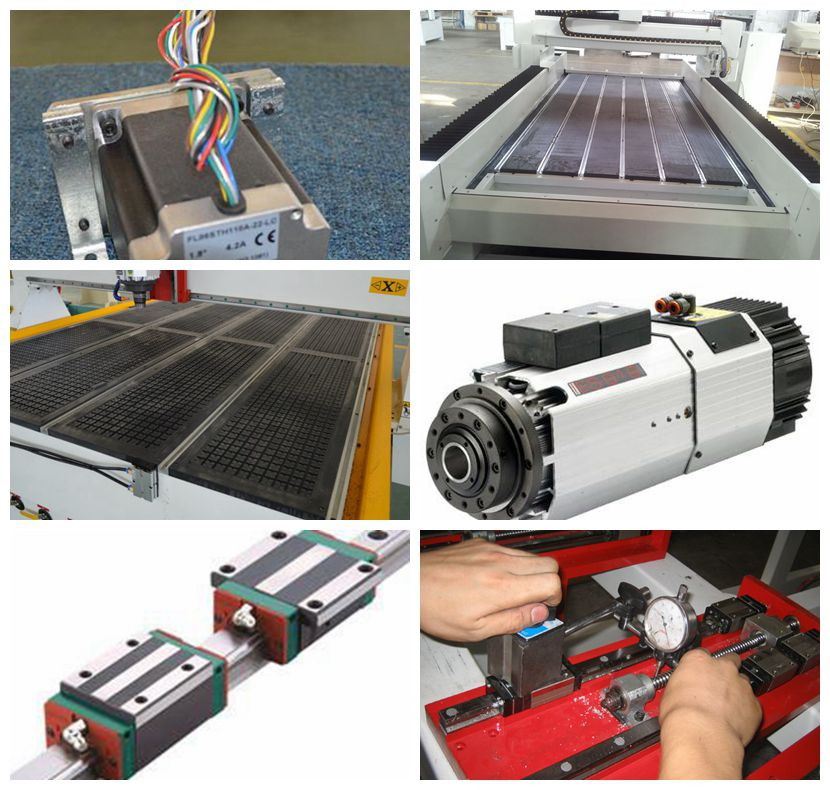

2.Heavy duty Structure


3.4.5KW water cooling spindle with NSK Bearing


4.NC Studio Control system


5.HIVIN Linear Guide for X,Y,Z three-axis X,Y,Z


axis and with water roof, dustproof system for three axis


6.Delta inverter from Taiwan


7.YAKO Stepping driver and motors


8.Schneider electronic components.


9.Art Cam software


10.Wooden box package




1.AC Servo motors


2.T-Slot vacuum table


3..Oil mist cooling system


Technical parameters

1Performance parameterFSM1325
2X,Y Working area1300mmx2500mm
3Z Working area200mm
5Processing precision±0.02mm
6Reposition precision±0.01mm
8Table structurealuminium
9X,Y,Z structureX,Y,Z ball screw
10CommandG code*.u00*.mmg.plt
11Max power Consumption (Without spindle)4.0KW
12Spindle power3.0KW / 4.5KW water cooling spindle
13Max processing speed7000mm/min
14Max travelling speed12000mm/min
15Working voltageAC380V/50Hz
16Spindle speed0-24000rpm/min
17Drive motorStepper
18Operation systemPCI CARD control
19Gross weight1200KG
High quality and competitive price

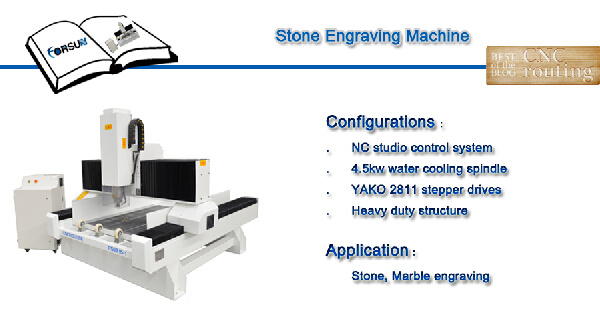

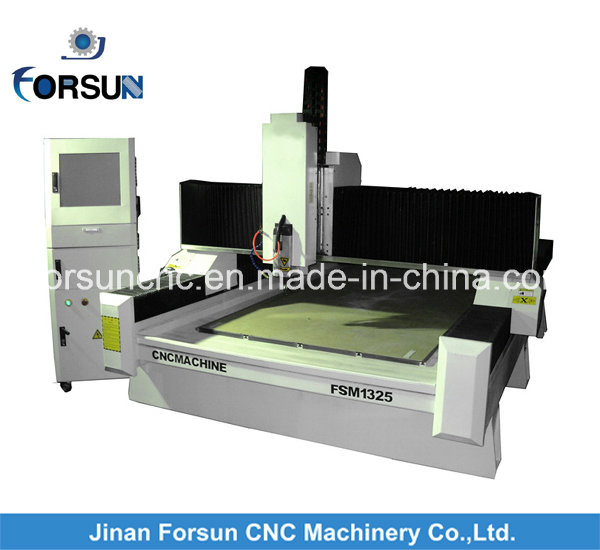

Machine picture
Working sample:

1.   Wooden Package

2.   Terms: FOB ,C&F,CIF

3.   From Tianjin, China To_______,

4.   Delivery Time: within 15-20 working days after received payment

5.   Payment: T/T,30% prepaid,,the balance paid before the delivery
More details, pls contact with us.

Prod Model: FS1325M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Voltage: AC380V/50Hz
Controller: Nc Stusio
Motor: Stepper Motor
Spindle: 4.5 Water Cooling Spindle
Operation System: PCI Card Control
Spindle Speed: 0-24000rpm/Min
X,Y Working Area: 1300mmx2500mm
Performance Parameter: Fs1325m
Application: Stone Industry
Current: AC
Function: Lettering
Application Material: Marble
Automation: Automatic
Control: CNC
Motor Power: 3kw
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
