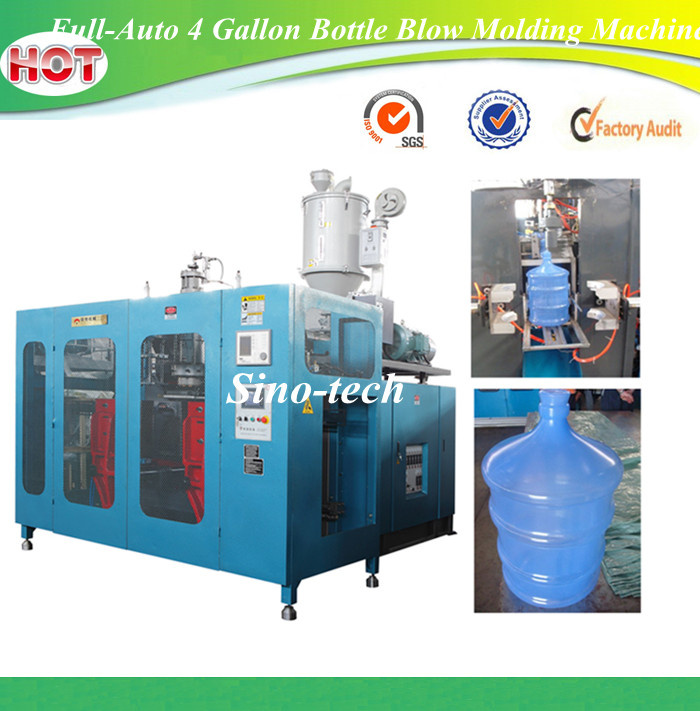

Full-Auto 4 Gallon Bottle Blow Molding Machine
| Price: |
US $ 25000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Full-auto 4 Gallon bottle blow molding machine
1. New design
2. Power saving
3. Investment cost saving
4. And high speed
Bottle blow molding/moulding machine(TCY901D)
D means double station
Y means two-way guide rail clamping structure
"1"means number of die-head
Bottle blow molding/moulding machine (Voltage: 380V/50Hz)
| Bottle blow molding/moulding machine |
| Specifications |
| TCY901D |
| Material |
| PE,PP,PVC,PA |
| Max container capacity | L | 20 |
| Number of die | set | 1 |
| Output(dry Cycle) | pc/hr | 300 |
| Machine Dimension(L*W*H) | M | 5.0*4.1*2.8 |
| Weight | Ton | 12.5 |
| Clamping Unit |
|
|
| Clamping force | KN | 105 |
| Platen opening stroke | mm | 200-550 |
| Platen size | mm | 500*550 |
| Max mould size(W*H) | mm | 550*500-300*800 |
| Mould thickness | mm | 210-320 |
| Power |
|
|
| Max drive | KW | 63.5 |
| Total power | KW | 92.4 |
| Fan power for screw | KW | 0.9 |
| Air pressure | Mpa | 1 |
| Air consumption | m³/min | 0.9 |
| Average energy consumption | KW | 35 |
| Extruder unit |
|
|
| Screw diameter | mm | 90 |
| Screw L/D ratio | L/D | 25 |
| Plasticising capacity | Kg/hr | 140 |
| Number of heating zone | Zone | 4 |
| Extruder heating power | KW | 20 |
| Extruder driving power | KW | 45 |
| Die-head |
|
|
| Number of heating zone | Zone | 3-5 |
| Power of die heating | KW | 7-9 |
| Max die-pin diameter | mm | 220 |
| Center distance of double die | mm | 240 |
| Center distance of tetra-die | mm | 120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Production Name: |
Full-Auto 4 Gallon Bottle Blow Molding Machine |
| Type: |
Extrusion Blow Molding Machine |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Raw Material: |
PP,PE,HDPE... |
| Certification: |
CE,SGS,ISO9001 |
