Home Mould Products Full Auto Blowing Molding Machine 3.5L Barrel/Bottle/Box (HWBR-55)

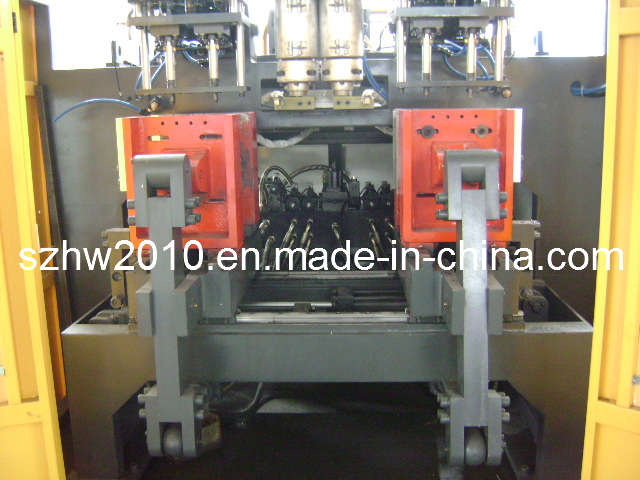

Full Auto Blowing Molding Machine 3.5L Barrel/Bottle/Box (HWBR-55)

Full Auto Blowing Molding Machine 3.5L Barrel/Bottle/Box (HWBR-55)
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
1. Electrical system: Japan Mitsubishi PLC and man-machine interface (Chinese or English), color touch screen. All the technical parameter setting, modification, indication, trouble shoot and so on function can be realized on the touch screen, all the components are long lasting.
2. Hydraulic system: Proportional pressure control, with imported Yuken hydraulic components, providing reliable control.
3. Plasticiser system: High-efficient mixing screw to ensure the melt to be good quality.
4. Speed-adjusting system: Invertors and alloy hard gear-surface reducer guarantee the speed to be smooth adjustment, longe lasting.
5. Mold-clamping, mold-moving system: Horizontal mold-moving system with high precision, less stress and high speed.

HWB55/R
Product max volume(L): 3.5
PC/h: 800*2
Screw diameter(mm): 55
Screw(L/D) ratio: 24-30
Plasticising capacity(kg/h): 45-55
Drive power(kw): 15
Segment of temperature control: 3
Heat power(kw): 7.8
Ascend and descend scope(mm): 0-280
Clamping force(kn): 56
Platen opening stroke(mm): 130-370
Platen size(mm): 290*360
Mold thickness(mm): 135-210
Single die Max diameter of die head(mm): 100
Power of die heating(kw): 2.2
Number of heating zone: 3
Double die Max diameter of die head(mm): 65
Power of die heating(kw): 2.2
Number of heating zone: 3
Center distance(mm): 130
Triple die Max diameter of die head(mm): 30
Power of die heating(kw): 2.8
Number of heating zone: 4
Center distance(mm): 80
Quad die Max diameter of die head(mm): 20
Power of die heating(kw): 3
Number of heating zone: 5
Center distance(mm): 60
Accumulator die Max diameter of die head(mm): 100
Power of die heating(kw): 6
Number of heating zone: 3
Accumulator(L): 1
Energy consume Total power(kw): 34
Average energy consume(kw): 22
Compress air quantity(min): 100
Cool off water energy consume(min): 100
Size L*W*H(m): 2.6*2.2*2.5
Weight(T): 4.8
Prod Model: HWBR-55
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic: Yes
Computerized: Yes
Making Method Of Parison: Extrusion-Blow Molding
Kind: Full-Electric Controlled
Processing Technics: Blow Molding Machine
Type: Plastic Machinery Accessory
Suzhou Huawang Machinery Co., Ltd. is a professional manufacturer of plastic extrusion blow molding machinery. Our company is located in Zhangjiagang, which is a well-know international garden city in Jiangsu Province, China. We enjoy a convenient location and we are near Shanghai, Suzhou, Wuxi and Changzhou.
Our company has a modern factory and offices. We have many skilled employees engaged in the manufacture of our blow molding machines and we pay particular attention to technical innovation and employee training. We strive to become an international enterprise in order to meet high quality requirements of the international market.
We produce 3 series of automatic blow molding machines: HWB single stations, double stations and fixed open-clamping machines. We can design machines according to the requirements of our customers.
Our ambition is endless, and we endeavor to provide you with the best service. We will be your reliable partner to create a prosperous future!
