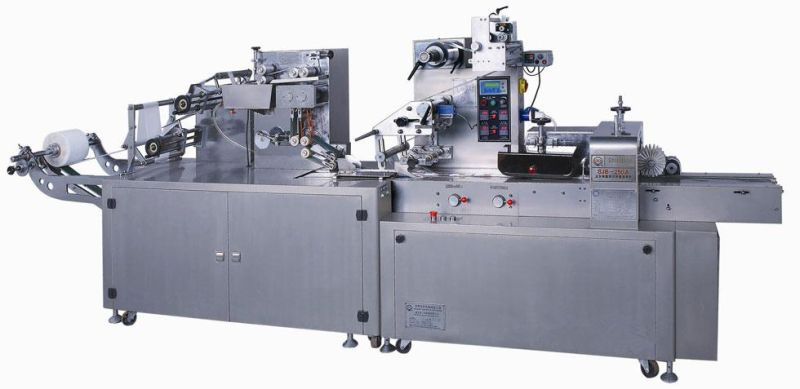

1). The device has a tidy construction, has a stable and reliable performance, and its operations are easy to master.
2). The running of this device is controlled by the micro-computer controller.
3). It is equipped with the OMRON photoelectric tracing system of high precision.
4). The place sealed and cut by it is very precise and the temperature of the seals are controlled separately and it is apt for many kinds of packaging materials the seal looks fair and is firm.
5). With the continuous adjusting of speed by frequency conversion, no interval will occur in the changes.
6). Has realized the full automatic processing of the following procedures, which are: Material folding, moulding; Cut of; Feeding; Medicine liquid(disinfector)spraying and packaging.
7). It has a full automatic circular system combining the functions of the display of the medicine liquid content, spraying, medicine liquid flow control, and the collecting.
8). The flow of the medicine liquid can be adjusted by manual freely.
9). When the code printer is equipped, the producing date serial number can be printed automatically.
| Production capacity | 35-120 bags/min |
| Size of the tissue |
|
| ()Length(folio) | 80-130mm(folio) |
| ()Width(folio) | 50-70mm (foilo) |
| ()Length(unfold) | 160-260mm (unfold) |
| ()Width(unfold) | 150-260mm (unfold) |
| Size of the bag |
|
| Length | 120-160mm |
| Width | 60-70mm |
| Width of the packing film | <=200mm |
| Total power | 220V 50Hz 0.75kw |
| Heater power | 220V 50Hz 1.2kw |
| N.W. | 1000kg |
| Overall dimension(L×W×H) | 4330×660×1600mm |
| Noise of the machine | <=78(DB) |
| Precent pass of finished | 97% |
| sealing press | 15 N/m 2N/m2 |
| Power | 220V 50HZ |
| Used for | Hydro-entangled nonwoven-cloth |
