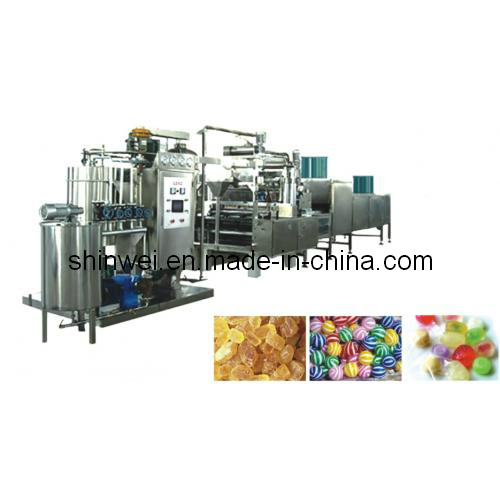

Complete Hard Candy Depositing Line with PLC control
FEATURES:
The processing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
1) PLC /computer process control available;
2) An LED touch panel for easy operating;
3) The standard production capacity is from 150kgs/h to 600kg/h;
4) The main parts is made of hygienic Stainless Steel
5) Optional (mass) flowing controlled by Frequency inverters;
6) In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7) Dosing pumps for the automatic injection of colors, flavors and acids;
8) Use AUTOMATIC STEAM CONTROL SYSTEM instead of manual steam valve which controls a stable steam supply to the microfilm cooker;
9) "two-color stripe depositing", "twocolor double layers depositing", "central filling", "clear" hard candies and etc. Can be made.
10) Moulds can be made according to the candies samples provided by the customer.
Contact us:
Tel: +86-21-57450158, 57459003
Fax: +86-21-57459003
Mobile: +86-13524622057
Add: No. 7151, Puwei Road, Huqiao, Fengxian, Shanghai, China, 201417
Http://www.sh-xinwei.net www.shinweigroup.com
|
Model |
GD150 |
GD300 |
GD450 |
GD600 |
|
Output(kg/h) |
150 |
300 |
450 |
600 |
|
Max candy weight |
6g |
6g |
6g |
6g |
|
speed |
55~65 n/min |
55~65 n/min |
55~65 n/min |
55~65 n/min |
Steam consumption
Steam pressure |
250kg/h, 0.5~0.8MPa |
300kg/h, 0.5~0.8MPa |
400kg/h, 0.5~0.8MPa |
500kg/h, 0.5~0.8MPa |
Compressed air consumption
Compressed air pressure |
0.2m3/min,
0.4~0.6MPa |
0.2m3/min,
0.4~0.6MPa |
0.25m3/min,
0.4~0.6MPa |
0.25m3/min,
0.4~0.6MPa |
|
Electric power needed |
18kW/380V |
27kW/380V |
34kW/380V |
42kW/380V |
|
Total length(m) |
15 |
17 |
17 |
20 |
|
Gross weight |
3500 kg |
4000 kg |
4500 kg |
5000 kg |
SHINWEI MACHINERY was from a company named Shanghai fengxian guyue food machine factory since year 1982which is a state owned enterprise for confectionery, chocolate, biscuit and packaging machinery. The founder of SHINWEI machinery is Mr. Wangzhiwei who is the director of guyue food machine factory till year 1995, after that year, the collective was restructured to Ltd and SHINWEI MACHIERY was established.
Nowadays, SHIWNEI always stand in the leader position in food machinery innovation and developing, the factory area is more than 6000square meters, five modern workshop, over 100 employees and has CNC machine, computer controlled lathe ect, in year 2005, SHINWEI PASSED ISO9001 authentication and most of the products passed European CE authentication. SHINWEI exported its products to east European, south America, Middle East, southeast Asia ect. District since year 2000, good quality products and perfect service makes SHINWEI have very good reputation and popularity.
SHINWEI MACHINERY provides not only the good quality production line for different kinds of confectionary production, but also the whole solution from making research, factory design, machinery installation and production, packing design ect. We are happy to cooperate with the new investor in food industry or experienced manufacturers. For more solution or information, please contact us or visit our website: http://www.sh-xinwei.net
With many years innovation and developing in food machinery design and manufacturing, SHINWEI always createa new and hi-tech products, such as the candy depositing line, after developing, the candy depositing line is controlled by servo driven equipment. SHINWEI's products is consists of hard candy, lollipop, soft chewy candy, jelly gummy candy, toffee candy, mashmallow, liquorice, chewy gum, bubble gum, chocolate production line and different kinds of packing machines, ect...
With many years innovation and developing in food machinery design and manufacturing, SHINWEI always createa new and hitech products, such as the candy depositing line, after developing, the candy depositing line is controlled by servo driven equipment.
SHINWEI's products is consists of hard candy, lollipop, soft chewy candy, jelly gummy candy, toffee candy, mashmallow, liquorice, chewy gum, bubble gum, chocolate production line and different kinds of packing machines, ect...
