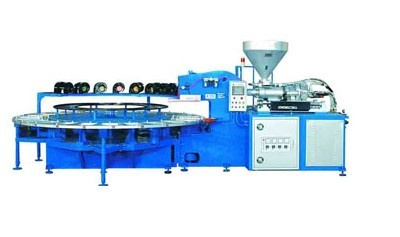

The machine is specially applied to manufacture single color sports shoes, leisure shoes, slippers and sandals for both male and female with PVC.
1. Full computer control, humanized man-machine interface, and easy operation;
2. Compared with the same kind of equipments, it saves energy and increases efficiency
3. Compared with the same kind of equipments; It has larger injection capacity and clamping force.
4. The rotation of workstation is characterized by continuously variable speed, lower noise and steady.
5. Preparing device and injection device are controlled proportionally, besides, the speed, material capacity and pressure are adjustable, which ensures the quality of products.
6. People are free to choose work stations according to different requirements of production.
Item Unit Parameter
Injection Capacity cm3 565
Heating Power kw 7
Temperature Control point 4
Rotating Speed of Screw r. P. M 1-180
Injection Stroke (Max. ) mm 200
Power of Oil Pump kw 22
Clamping Force kN 500
Number of Working Station (Max. ) stations 24
Mould Size (Max. ) mm 460*220*220
Machine Size mm 5350*3200*1740
Gross Weight kg About8000.
Established in 1990, Ruian credit Limined company have two Factory, one is ruian jinguang PU equipment factory. professional manufacturer of PU Pouring Machine, PU shoe mould and any other leather cutting machine. another factory is ruian ruishen manufacture factory. specialzied in manufacture film blowing machine. plastic bag making machine. printing machine and non woevn fabric making machine and so on. Our products are mainly exported to countries such as Pakistan, Mexico, Russia, and India, Middle-East, Sri Lanka and South Africa and on on.
Welcome to establish business relationship with us. We look forward to sharing our success with you!
