Home Mould Products Fully Auto Wire Tinning&Soldering Wire Machine

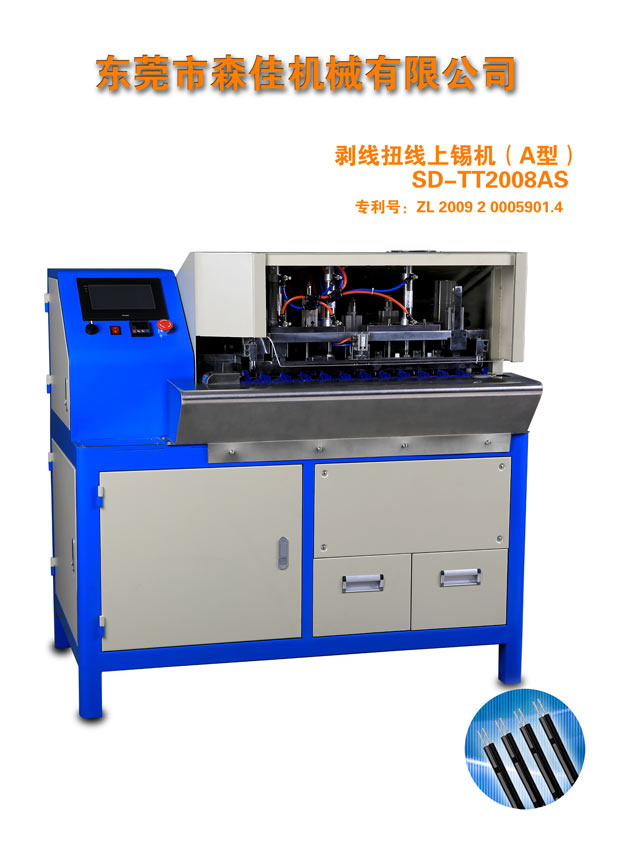

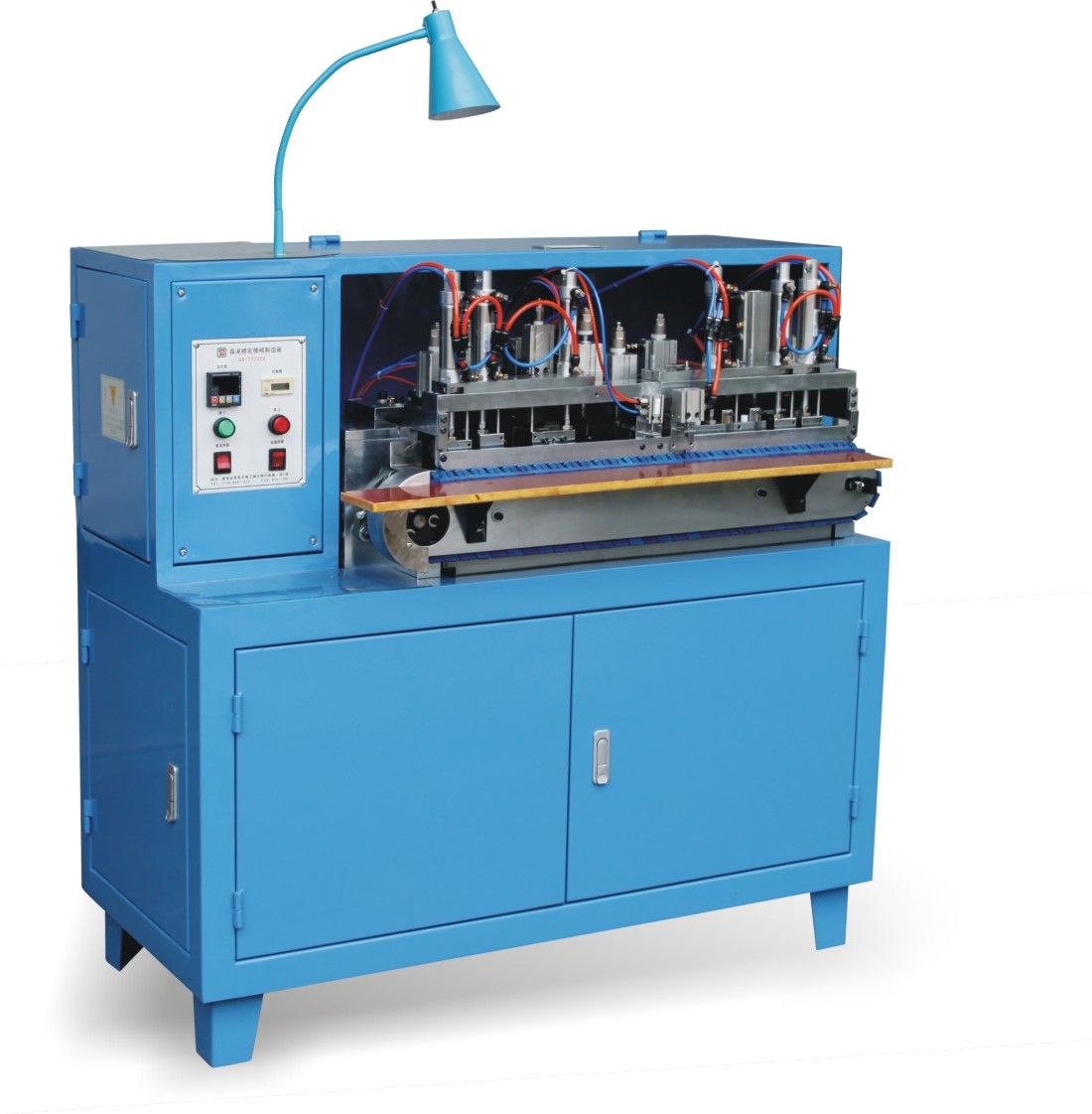

Fully Auto Wire Tinning&Soldering Wire Machine

Fully Auto Wire Tinning&Soldering Wire Machine
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Features: Automatic Wire Stripping Machine adopt the advanced technology from Japan & Germany.

Two-Lane Model can cut & strip two wires at the same time because of two lane.

Can do wire separate, strip, twist, tin & cut at one time because we put all the moulds together in one machine.

This machine's stripper moud can do stripping for single conductor cable wire double-conductor cable wire Collects above 5 function together which is 4 working positions saved compared with orginal hand working mode.

Strong points: 4 workings positions saved as below
1 person do cable/wire separation? X NO NEED
1 person do cable/wire stripping? X NO NEED
1 person do cable/wire twisting? X NO NEED
1 person do cable /wire tinning & cutting? X NO NEED

Safety Stable Quality ---------Senjia machine bas been in this industry for 8 years(since 2004) and now has been the leading company in this industry.

Easy Operation High Efficiency.
Applicable Wire/Cable: SPT-1, SPT-2------------America StandardH03VVH2-F---------------European Area/ Australia StandardH05WH2-F---------------- European Area/ Australia StandardRVV, VFF-------------------------
Japan Standard.

Dongguan Senjia Machine Co., Ltd. Is a hi-tech enterprise specialized in research, design, production and sale of AC. DC power plug cables and automatic equipment for processing of cable teminal. It has been in this industry for 8 years(started at 2004 begun with the company name Senda Machine) and now has been the leader company in this field. The company owns a team of professional mechanical and engineering technicians to ensure the high and stable quality. Currently the company's products have been exporting to markets of Singapore, Indonesia, Thailand, India and Brazil.

Prod Model: SD-TT2008A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Of Machine: SD-Tt2008A
Wire Stripping Size: 6mm-12mm
Max Size Of Slitting: 20mm-60mm
Pressure Of Air Source: 0.5-0.8mpa
Voltage: AC220V/50Hz
Soldering Size: 3mm-12mm
Weight: 250kg
Dimension: 1075mm*520mm*1125mm
Precision: High Precision
Certification: ISO
Demoulding: Automatic
Heating System: Electric
Mould Life: >1,000,000 shots
Automatic Grade: Automatic
Condition: New
Customized: Customized
Warranty: 12 Months
Function: Tinning
Dongguan Senjia Machinery Co., Ltd. is a hi-tech enterprise specialized in research, design, production and sale of AC. DC power plug cables and automatic equipment for processing of cable terminals. Since its inception, having been adhering to its business principle of "placing quality in the first place, being trustworthy and innovative and satisfying customer's needs"and the operating philosophy of "placing service as the top priority and striving for perfection", the company will do its best to cooperate with friends from all walks of life sincerely and create a brilliant future together. The company has introduced form Japan, Germany advanced technology and owns a group of excellent mechanical and engineering talents, who are dedicated to development and production of labor and power saving, environmentally friendly and output improving automatic equipment with technologies introduced from Japan and Germany. And professional service personnel ensure smooth production and timely delivery of products for customers. Service philosophy of Senda Company is to become the most trustworthy cooperative partner of our customers. Rich professional expertise, stringent quality management and increasing demands of customers enable rapid development and growth of company. In recent years, on the basis of satisfying demands of domestic market, the company has been developing international market actively. Currently the company's products have been exporting to markets of Germany, Italy, Russia, Turkey, Singapore, Malaysia, Indonesia, Thailand, Vietnam, India and Brazil.
