[Wuxi Suhang] Fully Automatic Cable Tray Making Machine
Equipment capabilities:
This combination cable tray roll forming machine can produce many kinds of specification electric cable bridges and other structure product.
Product speed by punching: 2.5~5m/min
Continuous rollforming speed: 5~12m/min
Material thickness: 1~2.5mm
Material require: Q235 cold roll steel
Production line has two operating mode: Automatic and manual, may realize the linkage and the partition revolution work.
Main composition of machine:
This combination cable tray roll forming machine consists of the decoiler, flatting, punch die, servo feeding, guider, main roll forming machine, following cutting, encoder, electrical control cabinet; Etc.
Each part major technical parameters
1) Drive decoiler
Material width: ≤ 850mm
Material weight: 6000kg
Material inner diameter: 460~510mm
Material outer diameter: 1200mm
Drive power: No power, manual, passive decoiler
2) Flatting
Working rolls: 11 rolls, up 4/down 5, the residual 2 rolls is clamp deliver rolls.
Flatting bound: Material thickness 1~2.5mm, material width 100~850mm
Flatting speed: 3~10 m/min
3) Continual punching mould
Amount: Each kind of width specification 1 set dies, total 6 sets
Die require: Cr12 quench
4) Servo feeding set
Multistage type feeding, memory ten group of memory functions
Man-machine contact surface numerical control system
5) Holds material (use in cushion section)
The roller type, the both sides have the bearing support, 3 sets, use in holding the material and under the deposited material spacing.
6) Guider
A pair of horizontal roller and two pairs of vertical guide rolls, total 1 sets.
7) Main roll forming machine
Rack structure: Dragon Gate type memorial arch frame
Rolling steps: 16 steps
Forming variety: Bridge frame
Material max width: 850mm
Material max thickness: ≤ 2.5mm
Forming width: 100~600mm
Forming height: 50~150mm
The diameter of the roller axis: 85mm
Roll mould material: Gcr15, quenching treatment: HRC58-62°
Drive type: 15kw frequency conversion electromotor
Autocephaly distribute gear case
8) Hydraulic cutting
Hydraulic pumping station: 11kw
Blade cuttimg, blade material Cr12, quench treatment
9) Electrical control
Operation control cubicle
Amount: 1 set
Frequency conversion: 3sets(in main control cubicle, control decoiler, flatting and roll forming machine)
PLC control: 1 set
Touchscreens
All electrical element is the Mitsubishi original installation brand

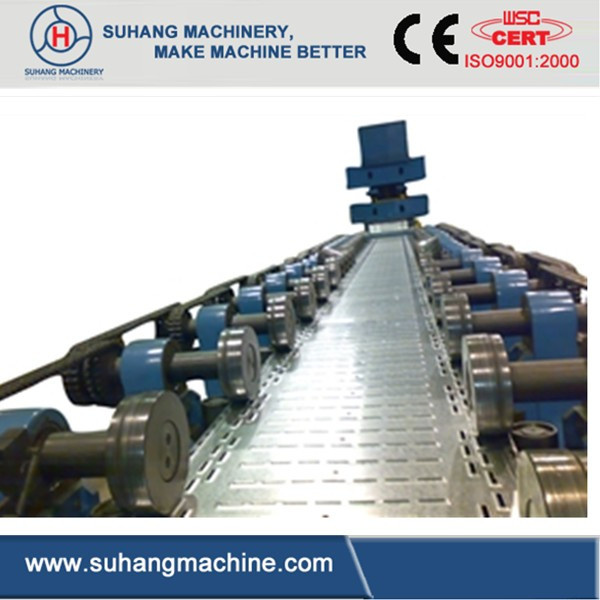

Machine Picture
