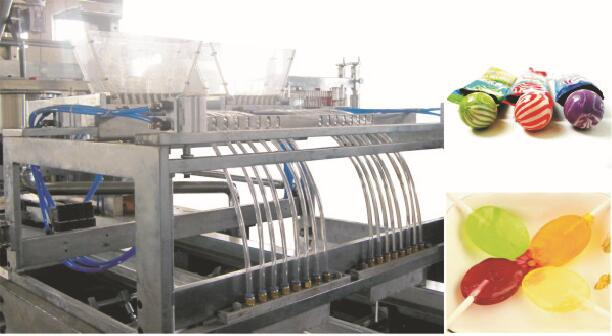

Fully-Automatic Deposited Lollipop Processing Machine

                                                              Deposited Lollipop Production Line

Application:single color/double color/stripe colors lollipop, layer candy, and central filled lollipop
Model: SH150B/300B/450B/600B
Capacity:150/300/450/600 kg/hr
Certificate: ISO,CE,BV,SGS




Product Description:

The SHB series lollipop depositing line is an advanced equipment to produce lollipop. The operation is controlled by a PLC/program for the vacuum cooking, feeding, and depositing. It can be in-line injection, dosing and pre-mixing for the proportional addition of liquid colors, flavors, and acids. The line is composed of cookers, storage tank, micro-film cooker, depositing, moulds and industrial cooling tunnel. It can produce two color striped, two color layers, one color and central-filled lollipop.The line is a full-automatic plant equipped with an automatic stick insertion system.
Moreover, just change the moulds ,tt is available to produce both hard candy and lollipop on the same depositing line.




Parameter:

MODEL	SH150	SH300	SH450	SH600
Capacity(kg/hr)	150	300	450	600
Max candy weight	26g	26g	26g	26g
Lollipop Diameter	Flat:18-28mm            Ball:Max 25mm
Depositing speed	55-65n/min	55-65n/min	55-65n/min	55-65n/min
Stick Specification	60-100mm	60-100mm	60-100mm	60-100mm
Compressed air requirement	0.2m3/min, 0.4-0.6Mpa	0.2m3/min, 0.4-0.6Mpa	0.2m3/min, 0.4-0.6Mpa	0.2m3/min ,0.4-0.6Mpa
Working condition	Temp:20-25ºC  Humidity:55%	Temp:20-25ºC  Humidity:55%	Temp:20-25ºC  Humidity:55%	Temp:20-25ºC  Humidity:55%
Total Power	18kw/380V	27kw/380V	34kw/380V	38kw/380V
Total Length	17m	19m	19m	22m
Total Weight	3500kg	4000kg	4500kg	5000kg

Our Services

1.We will provide guarantee of the equipment permanently whatever within guarantee period or not, we will react during 48 hours after received the fax required to ensure the recovery of buyer's production line first.
2.We will despatch engineers to working place of buyer and guide the workers to install and operate the equipment, and to install the water,electric appliance,and steam connecting with the machine, the buyer should pay the technicians return fly tickets and visa and accommodation and food with 30usd/day allowance.
4.We will dispatch the professional to help buyer major fixing.
5. We will provide the parts of equipment permanently based on the principle of reasonable price and quick delivery to guarantee the machine's function in normal.
6.We will provide the technical guiding and support
