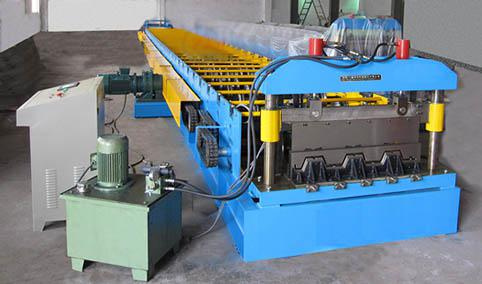

Fully Automatic Hydraulic Cutting Deck Floor Roll Forming Machine

Fully Automatic Hydraulic Cutting Deck Floor Roll Forming Machine
Price: US $ 40000-50000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Fully Automatic Hydraulic Cutting Deck Floor Roll Forming Machine

Features
1. High wave, high strongness, high atuomation
2. Passed by CE and ISO9001
3. Adopt PLC system and easy to handle

The panel produced by this machine has high strength with big wave. It adheres well to concrete. It is used on high buildings. It not only saves steel mold plate, but also saves investment.
The deck floor panels forming by this machine is used for high building surface panels, it has so many good advantages, such as high wave, high strongness, high atuomation, low cost.

Machine Components:
Unpowered Decoiler, Main forming machine, Forming cutter, Computer control system, Hydraulic station, Product Rack

Working Flow
Decoiling guiding and feeding roll forming cut to length run out table

We can design and manufacture the machine according to clients' request! Please send us the enquiry with Profile Drawing.
NumberItemsUnit\TypeRF-FD
1Steel Thicknessmm0.8-1.2
2Steel feeding widthmm1000-1250
3Forming Speedm/min10-15
4Roller standsstand30-36
5Roller Material
45# steel, coated with chrome
6Hydraulic cutting PowerKw18
7Hydraulic pressureKw5
8Hydraulic pressure MpaMpa12
9Power Supply
380V, 50HZ,3 phase
10Tolerancemm1.5
11Material of cutting
Cr12
12Control system
PLC with touch screen
13Machine net weightT16

Prod Model: RF-DF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Hydraulic Cutting Deck Floor Roll Forming Machine
Condition: New
Brand Name: Suhang
Voltage: 380V
Power(W): 30kw
Dimension(L*W*H): 15m*1.5m*1.2m
Weight: 15ton
Warranty: 1 Year
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.

Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.

Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.

Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
