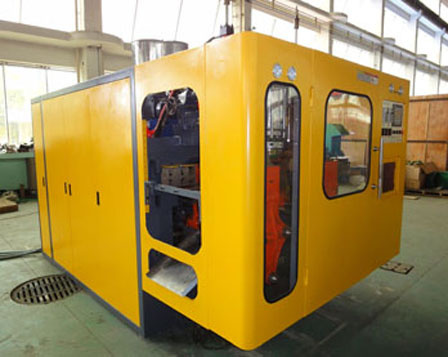

Fully automatic hydraulic extrusion blow molding machine with store material function, a wide variety of materials can be used for the machine, which are suitable for producing multi-type products for mass production.
(1)The clamping system is a high-precision single-station linear guide.
(2)extrusion system using a hard gear reducer and inverter imported.
(3)The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.
(4)The control system consists of PLC and Human-machine interface imported from Siemens Germany: Siemens touch screen, PLC an automatic temperature control module and imported electrical parts. This can deploy tri-die heads, four-die heads and six die heads.
(5)Especially it can used for washing, commodity, and parts of vehicle, toys and some related products for mass production. This machine has a high efficiency so as to produce more plastic products.
|
Single work station automatic large machine Technical parameters |
PLU-75SH |
PLU-80SH |
PLU-85SH |
PLU-90SH |
PLU-100SH |
PLU-120SH |
|
Product max volume |
12-15l |
20-25l |
25-30l |
30-50l |
80-120l |
220l |
|
(PC/h) |
900 |
900 |
900 |
600 |
300 |
200 |
|
Screw diameter(mm) |
75 |
80 |
85 |
90 |
100 |
120 |
|
Screw ratio (L/D) |
25 |
25 |
28 |
30 |
30 |
30 |
|
Plasticizing capacity (Kg/h) |
80-100 |
80-100 |
90-120 |
120-180 |
150-200 |
180-220 |
|
Accumulator volumes |
2.5L |
3.2L |
4.6L |
4.6L |
16L |
24L |
|
Segment of temperature control |
5 |
5 |
5 |
6 |
8 |
8 |
|
Ascend and descend scope(mm) |
200 |
200 |
250 |
300 |
400 |
500 |
|
Clamping force(KN) |
50 |
80 |
100 |
300 |
500 |
1000 |
|
Platen opening stroke(mm) |
130-380 |
130-380 |
270-820 |
450-1100 |
550-1400 |
800-1800 |
|
Platen size(mm) |
500*600 |
700*800 |
800*800 |
900*900 |
1150*1200 |
1420*1600 |
|
Mold thickness(mm) |
400-600 |
600-800 |
600-800 |
700-900 |
800-1000 |
1300-1800 |
|
Max diameter of die head(mm) |
200 |
300 |
300 |
400 |
500 |
640 |
|
Extruder motor power(kw) |
22 |
37 |
37 |
55-75 |
55-75 |
90-132 |
|
Die head heating power(kw) |
15 |
20 |
25 |
25 |
25 |
40 |
|
Extrusion heating power(kw) |
15 |
20 |
25 |
32 |
32 |
40 |
|
Oil pump power (kw) |
15 |
15 |
30 |
37 |
37-45 |
37-45 |
|
Servo motor power (kw) |
4 |
4 |
4 |
5.5 |
5.5 |
15 |
|
General power (kw) |
71 |
96 |
121 |
154.5/174.5 |
154.5/182.5 |
222/272 |
|
Averate consumption power(kw) |
56.8 |
76.8 |
96.8 |
108 |
108 |
155 |
|
General dimension(LWH) |
2.3*3.5*3.2 |
4.4*2.6*3.8 |
5.2*2.9*4.6 |
5.8*3.2*4.8 |
6.2*3.6*5.3 |
7.8*3.6*5.4 |
|
Weight |
8.5t |
9.5t |
10.8t |
13.5t |
22t |
38t |
