Vacuum Dryer Machine
Product Features:
1. All jointed corner is arc processing, and press forming by mold. So, it is without dead corner and easy to clean.
2. The special door and the hinged structure ensure the sealing effect, reduce pollution, avoid the door going down.
3. The vacuum nozzle and nitrogen export are equipped with filter can prevent the air rush into the material directly if the vacuum system failure.

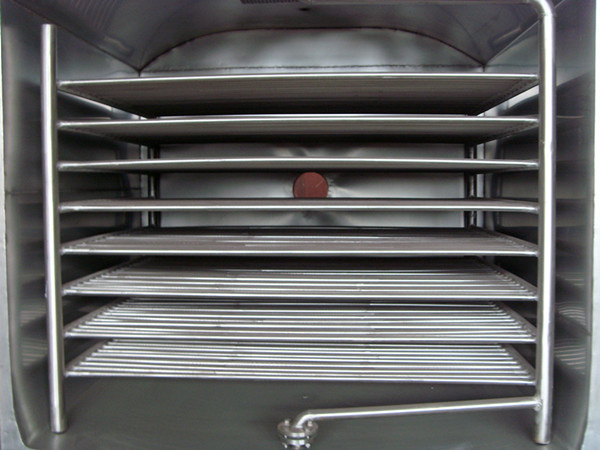

4. Tube type or plate type heat exchange method, The heating structure of outside frame can make the heating evenly. The internal temperature difference is small and the drying efficiency is highly improved.

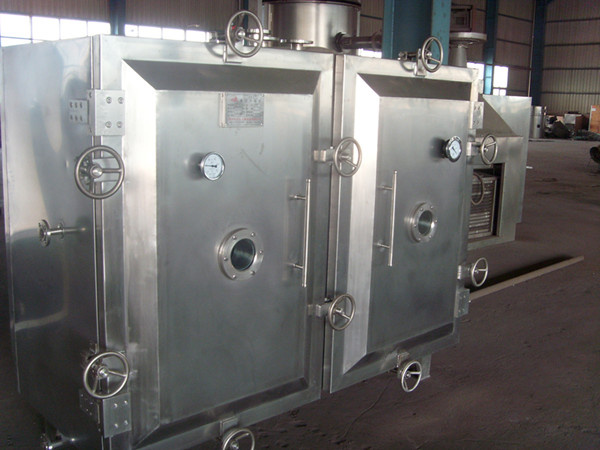

5. It is designed with double doors and double carts, easy for operation, and reduce the space usage of the door opening.
6. Special external connection that avoids any heating leakage and the material will not be polluted when the operation is fault.
7. This product is in accordance with the requirements of GMP.
8. Our company can provide the relevant documents and service supports of the GMP verification.
Model | FZGF-4 | FZGF-6 | FZFG-8 | FZGF-10 | FZGF-12 | FZGF-16 | FZGF-24 | FZGF-32 | FZGF-40 | FZGF-48 | FZGF-60 | FZGF-72 |
Overall size (mm) | 850×950×1250 | 850×950×1250 | 1050×900×1450 | 1050×900×1500 | 1050×900×1650 | 950×1300×2050 | 1050×1900×2050 | 2060×1560×2050 | 2060×1560×2300 | 2060×2000×2050 | 2060×2000×2300 | 2060×2460×2200 |
Layers of baking shelf | 2 | 3 | 4 | 5 | 6 | 4 | 6 | 8 | 10 | 12 | 15 | 18 |
The spacing of layer (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Size of baking tray (mm) | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 |
Quantity of baking tray | 4 | 6 | 8 | 10 | 12 | 16 | 24 | 32 | 40 | 48 | 60 | 72 |
Working pressure inside the pipe of baking frame (MPa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
Operation Temperature of baking frame | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 |
Vacuum degree inside the empty chamber (MPa) | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 |
Under the condition of -0.1MPa, and temperature of 110, evaporation rate of water (Kg/m2@hr) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
with the condenser. The power of vacuum pump (Kw) | 2X-15A 2.0KW | 2X-15A 2.0KW | 2X-30A 3.0KW | 2X-30A 3.0KW | 2X-30A 3.0KW | 2X-70A 7.5KW | 2X-90A 11KW | 2X-90A 11KW | 2X-90A 11KW | 2X-90A 11KW | 2X-90A 11KW | 2X-90A 11KW |
Without the condenser, the power of vacuum pump (Kw) | SZ-0.5 1.5KW | SZ-0.5 1.5KW | SZ-1 2.2KW | SZ-1 2.2KW | SZ-1 2.2KW | SZ-2 4KW | SZ-2 5.5KW | SZ-2 5.5KW | SZ-2 5.5KW | SZ-2 5.5KW | SZ-2 5.5KW | SZ-2 5.5KW |
The weight of machine | 800 | 900 | 1100 | 1300 | 1400 | 2100 | 2500 | 2800 | 3000 | 3200 | 3500 | 3800 |
