Gallon Preform Injection Moulding Machine (LSF-258)

Gallon Preform Injection Moulding Machine (LSF-258)
Price: US $ 28260/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

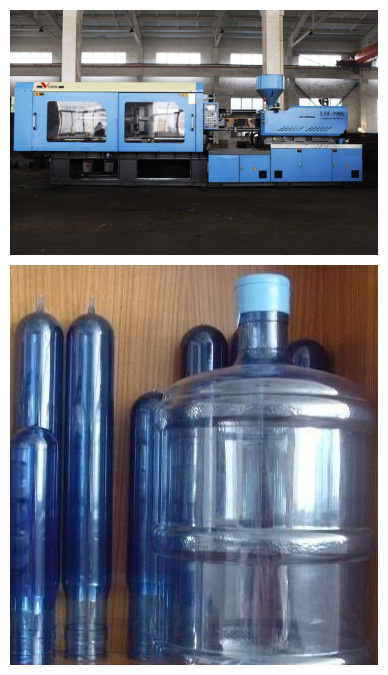

Gallon preform injection moulding machine

We are professional manufacturer of pet preform Injection Molding Machine, different model of machine for different production capacity, our machines are known for features like durability & sturdy construction.

Production capacity;
1000-5000PCS/h for all sizes and weights
OEM for preform molds

Faster response stable high rigidity
Accurate flexible low rejection rate
Molding data memory system
Energy saving, Durable
High rigidity, long working life
Energy saving 20% to 80%
Timely after-sales services

Some of the important features:
Clamping system: Faster response, steable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.

Other Information
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai

  Unit LSF-258
Screw Diameter Mm 50 55 60
Screw L/D Ratio L/D 24 21.8 20
Short Size Cm3 504 610 726
Injection weight G 459 555 661
Injection Rate g/s 121 146 174
Plasticizing capacity g/s 32 41 49
Injection Pressure Mpa 223 184 155
Screw Speed Rpm 0-190

Clamp Force KN 2580
Space Between Tie Bars mm 560*530
Toggle Stroke mm 505
Max. Mold Height mm 560
Min. Mold Height mm 200
Ejector Stroke mm 150
Ejector Tonnage KN 65
Ejector Number P 9

Max. pump Pressure Mpa 16
Pump motor powder Kw 22
Heater Power Kw 16
Machine Dimension(L*W*H) M 5.5*1.6*2.1
Machine Weight T 7.6
Prod Model: LSF-258
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: Custom
Type: Preform Injection
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Changzhou Longsheng Machinery Co., Ltd locates in Zhonglou Scientech Industry Park of Changzhou, mainly produces and sells Plastic Injection Molding Machine, with high technology and reliable quality, our products are selling all over the world. We compare the price with the same quality, while compare quality with the same price, compare the service with the same quality and price, we regard it as our management tenet. We always integrate the optimized design associated with manufacture and good sales service together. We adopt 24hours-networking for sales service, all lifecycle services for products, smile is our characteristc service.

Ways to success, start from Longsheng. Longsheng Possesses solid strength, devoted to create a brand name ---Longsheng Machinery Series. The Clamp Force of our machines range from 600KN to 16800KN, Shot Weight range from 63G to 10000g, Plastic Injection Molding Machine is widely applied in the areas of automobile, mechanical, chemical, electrical, daily supplies, toys, etc.

With good quality, professional service and sincere credit, Longsheng will go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefit. Try to create a prosperous future with our customers as we always do.

Innovation is the sole of development for a company. The Sea Accepts All Things, Deriving More Things. The development of Longsheng is course of creative and exceed itself all the time. Study is the vital force of the enterprise, the Longsheng advocate study, and offer all-sided training to improve its staff. Devoted to everything on hand is the management concept of Longsheng, owning concentration and persistence, the enterprise could progress, the staff can improve themselves.
