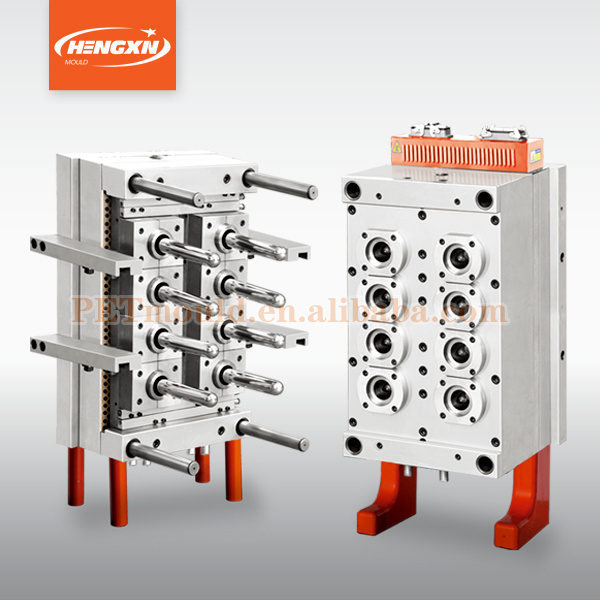

Gallon Preform Mould for Water Bottle

Gallon Preform Mould for Water Bottle
Price: US $ 2500/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Gallon Preform Mould forwater bottle

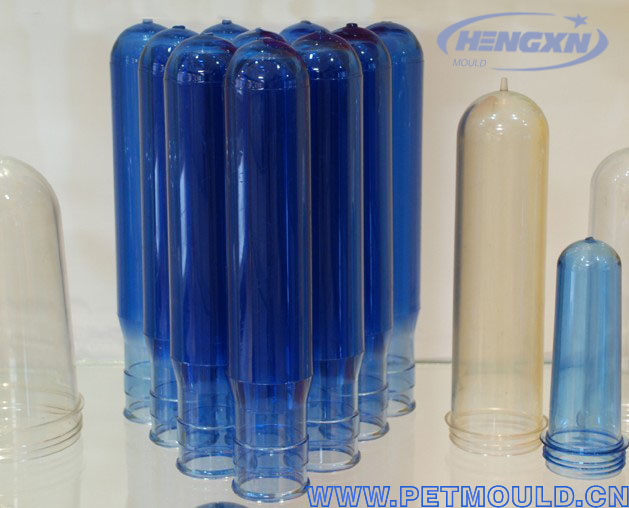

5Gallon preform mould for 18.9L water bottle

3Gallon mould for 10L water bottle



Specifications

hot runner 5 gallon preform mold with material of p20 and 2316,we offer the goods with 1 million time produce and one year guarante.

                                                     Brief Introduction



  • Keep 500°C about 36 hours in vacuum station to eliminate the stress, make sure the molding board steady after long time use.
  • Slipper block use HUSKY type, with material of steel P20, which is highly anticorrosion, all the move parts used advanced ion nitration treatment, the surface hardness is HRC48-52.

Spare Parts(screw, coin and cavity)

All uses material steel 2316, with high anticorrosion and hardness is HRC46-48.



Hot Runner: use SKH61 temperature resistance material, with hardness HRC≥46

  1. The hot nozzle use Italy ROTFIL or german HOTSET heating coil to make sure the quality.
  2. Plastic injection opening use high hardness QBE2 beryllium copper, with good conduct heat, anti wear and steady.
  3. Plastic injection opening heat insulation cap use American Dupont.
  4. Piston and cylinder use import wear ring, the piston use material 2136, the sealing element used import sealing element, with material of poly four vinyl chloride.

HOT RUNNER SYSTEM



The hot runner adopts the PID controlling system. It has the function of the self repair and self protection. Which can prolong life of the heating element. The temperature difference under controlling within 1°C difference. It will make sure that raw material can not be burnt insider of the hot runner. The wastage will be kept less than 1% the new sprayer design make the mould are easy for maintaining, the ejected part of the sprayer, the heating part, the heat insulation part, thermocouple part can be changed without disassembling the mould which can save a lot of the time and save the maintaining cost.

                             PET PREFORM MOULD PARTS



  1. Cores: stainless steel with titanium-nitrate core surface finish
  2. Locking rings: with air-assisted preform ejection.
  3. Neck rings: stainless steel, water cooled
  4. Cavities: highly polished and chromed surfaces
  5. Gate inserts: stainless steel with highly polished surfaces


Mould Cavity Mould size
1 cavity 400*400*700
2 cavities 480*380*760
4 cavities 560*550*760
Prod Model: HX--1010
Markets: South America,Southeast Asia,Africa,Eastern Asia
Steel: S136 From Sweden
Material: Steel
Application: Commodity
Zhejiang Taizhou Huangyan Hengxin Mould & Plastic Co., Ltd (Hengxin) was established in 1992.

Hengxin occupies more than 10, 000 square meters workshop and has more than 100 employees.

Hengxin is specialized in PET perform mould, cap mould, bottle blowing mould, household mould.

With many years rich experience, Hengxin become one of Chinese leading and famous suppliers of PET preform mould. Especially we design and manufacture self-lock PET perform mould and shut-off nozzle PET perform mould by ourselves.

Hengxin moulds have been well received abroad in Italy, Russia, Africa, Southeast Asia and the Middle East as well as at home.

We also set up several agencies for supplying business consultation, technology support and after-sale service at home and abroad.

"To survive by quality, to develop by creditability, to satisfy the customers" are our guidelines.
