FEATURES:

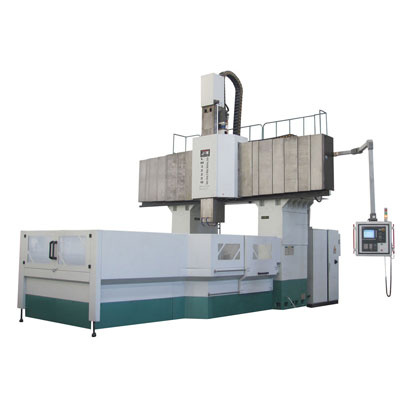

The machine tool possesses three coordinate axes in X, Y and Z and the fourth axes. (Here the fourth axis means the machine center with the fourth axis function and cable, if equipped the NC rotational table, can use as four axis synchronous movement. ) Each coordinate axis can perform the automatic positioning. The machine tool is capable of milling, drilling, reaming, tapping and other machining.
The machine is suitable for the multi-variety and medium and small batches of productions for making the various plate work-pieces, disk work-pieces, case work-pieces, moulds and other complicated parts, is suitable for machining the various pipe parts, plate parts and shell parts in the industries of refrigeration, petroleum and chemical, boiler, printing, packing and etc., and is also suitable for machining the cylinders, cases and so on in the industries of automobile, diesel engine and other industries. And the machine tool is equipped with the accessories horizontal milling head, the five face machining can be completed after once set-up of a work-piece.
SPECIFICATIONS: |
LM2217Q |
LM2717Q |
LM2722Q |
Table size |
2000 x 1400mm |
2500 x 1500mm |
2500 x 1800mm |
Goalpost width |
1700mm |
1700mm |
2200mm |
X,Y axis travel |
2200 x 1700mm |
2700 x 1700mm |
2700 x 2200mm |
Z axis travel |
800mm |
800mm |
800mm |
Table capacity (Max.) |
8T |
10T |
10T |
Distance between spindle and table |
150~950mm |
150~950mm |
150~950mm |
Spindle taper |
ISO50 |
Spindle speed |
30~4000 (30~6000)rpm |
30~3000 (30~6000)rpm |
30~4000 (30~6000)rpm |
Spindle motor power |
22kw |
22kw |
22kw |
Position accuracy |
±0.008/300mm |
Repeated position accuracy |
0.005mm |
Power supply |
55KVA |
55KVA |
55KVA |
|
|
|
|
SPECIFICATIONS: |
LM3217Q |
LM3222Q |
LM3226Q |
Table size |
3000 x 1500mm |
3000 x 1800mm |
3000 x 2000mm |
Goalpost width |
1700mm |
2200mm |
2600mm |
X,Y axis travel |
3200 x 1700mm |
3200 x 2200mm |
3200 x 2600mm |
Z axis travel |
800mm |
800mm |
800mm |
Table capacity (Max.) |
12T |
12T |
15T |
Distance between spindle and table |
150~950mm |
150~950mm |
150~950mm |
Spindle taper |
ISO50 |
Spindle speed |
30~4000 (30~6000)rpm |
Spindle motor power |
22kw |
Position accuracy |
±0.008/300mm |
Repeated position accuracy |
0.005mm |
Power supply |
55KVA |
55KVA |
55KVA |
|
|
|
|
SPECIFICATIONS: |
LM3717Q |
LM3722Q |
LM3726Q |
Table size |
3500 x 1500mm |
3500 x 1800mm |
3500 x 2000mm |
Goalpost width |
1700mm |
2200mm |
2600mm |
X,Y axis travel |
3700 x 1700mm |
3700 x 2200mm |
3700 x 2600mm |
Z axis travel |
800mm |
800mm |
800mm |
Table capacity (Max.) |
15T |
15T |
18T |
Distance between spindle and table |
150~950mm |
150~950mm |
150~950mm |
Spindle taper |
ISO50 |
Spindle speed |
30~4000 (30~6000)rpm |
Spindle motor power |
22kw |
Position accuracy |
±0.008/300mm |
Repeated position accuracy |
0.005mm |
Power supply |
55KVA |
55KVA |
55KVA |
|
|
|
|
SPECIFICATIONS: |
LM4217Q |
LM4222Q |
LM4226Q |
Table size |
4000 x 1500mm |
4000 x 1800mm |
4000 x 2000mm |
Goalpost width |
1700mm |
2200mm |
2600mm |
X,Y axis travel |
4200 x 1700mm |
4200 x 2200mm |
4200 x 2600mm |
Z axis travel |
800mm |
800mm |
800mm |
Table capacity (Max.) |
18T |
18T |
18T |
Distance between spindle and table |
150~950mm |
150~950mm |
150~950mm |
Spindle taper |
ISO50 |
Spindle speed |
30~4000 (30~6000)rpm |
Spindle motor power |
22kw |
Position accuracy |
±0.008/300mm |
Repeated position accuracy |
0.005mm |
Power supply |
55KVA |
55KVA |
55KVA |
|
|
|
|
SPECIFICATIONS: |
LM4228Q |
LM4232Q |
LM5226Q |
Table size |
4000 x 2500mm |
4000 x 2500mm |
5000 x 2000mm |
Goalpost width |
2800mm |
3200mm |
2600mm |
X,Y axis travel |
4200 x 2800mm |
4200 x 3200mm |
5200 x 2600mm |
Z axis travel |
1000mm |
1000mm |
800mm |
Table capacity (Max.) |
20T |
20T |
25T |
Distance between spindle and table |
250~1250mm |
250~1250mm |
150~950mm |
Spindle taper |
ISO50 |
Spindle speed |
30~4000 (30~6000)rpm |
Spindle motor power |
22kw |
Position accuracy |
±0.008/300mm |
Repeated position accuracy |
0.005mm |
Power supply |
55KVA |
55KVA |
55KVA |
|
|
|
|
SPECIFICATIONS: |
LM5228Q |
LM5232Q |
LM6226Q |
Table size |
5000 x 2500mm |
5000 x 2500mm |
6000 x 2000mm |
Goalpost width |
2800mm |
3200mm |
2600mm |
X,Y axis travel |
5200 x 2800mm |
5200 x 3200mm |
6200 x 2600mm |
Z axis travel |
1000mm |
1000mm |
10 00mm |
Table capacity (Max.) |
28T |
28T |
30T |
Distance between spindle and table |
250~1250mm |
250~1250mm |
250~1250mm |
Spindle taper |
ISO50 |
Spindle speed |
30~4000 (30~6000)rpm |
Spindle motor power |
22kw |
Position accuracy |
±0.008/300mm |
Repeated position accuracy |
0.005mm |
Power supply |
65KVA |
65KVA |
65KVA |
|
|
|
|
SPECIFICATIONS: |
LM6228Q |
LM6232Q |
|
Table size |
6000 x 2500mm |
6000 x 2500mm |
|
Goalpost width |
2800mm |
3200mm |
|
X,Y axis travel |
6200 x 2800mm |
6200 x 3200mm |
|
Z axis travel |
1000mm |
1200mm |
|
Table capacity (Max.) |
30T |
30T |
|
Distance between spindle and table |
250~1250mm |
300~1500mm |
|
Spindle taper |
ISO50 |
ISO50 |
|
Spindle speed |
30~4000 (30~6000)rpm |
30~4000 (30~6000)rpm |
|
Spindle motor power |
22kw |
22kw |
|
Position accuracy |
±0.008/300mm |
±0.008/300mm |
|
Repeated position accuracy |
0.005mm |
0.005mm |
|
Power supply |
65KVA |
65KVA |
|
