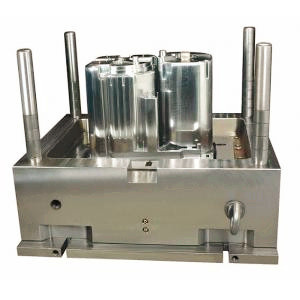

Gare Precision Injection Mold

Gare Precision Injection Mold
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Gare Precision Injection Mold

Simple Key Specifications:
SGS certification we got
1. Steel of Cavity and core: 2738
2. Mold base: 45# (Customized)
3. Cavity: 1X1Cavity
4. Mold gate way: Yudo hot runner
5. Cooling system: Enough cooling
6. Surface: Mirror polishing
7. Tolerance: 0.01mm, 2D/3D control
8. Full automatic
9. Mould life: 1, 000, 000 shots
10. Finishe time for first sample: 30 days.

Key Specifications/Special Features:

In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this mould. This rack choose PE material, then advice choose hard enough steel
1. Customized designs, sizes and frames are accepted
2. Mould steel: 2738 forging for cor and cav, 45# for mold base (customized)
3. Mould cavity: 1*1
4. Mould software: Choose UG for 3D design, AutoCAD for 2D drawing, mold flow for runner analyze
5. Mould size: 520 X 700mm (depends on client's machine upon changing mold size)
6. Mold fix machine: 450T on injection molding machine
Plastic material: PC (on normal choose PC)
7. Mold cycle time: 45 seconds/shot (without cool water when test this mold)
8. Mold doff way: Automatic by ejectors and air spring (Hasco standard)
9. Mold lifespan (minimum): 1, 000, 000 shots
10. Mold base: Copy standard mold base
11. Mold gate way: Hot runner (customized)
12. Mold packing: Standard wooden case
13. Minimum mold order should be one set
14. Mold shipment will be arranged within seven days after confirm samples and received balance
15. After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mold minimum life and technical Aegis.

Images:

We are ISO 9001: 2008 certificated manufacturer of custom plastic injection molds, molding parts, plastic injection molding, custom plastic products, custom plastic parts.

We can customize all kinds of plastic injection mold based on your drawings\specs, product range from electronics, outdoor goods, car components, device precision parts etc, strong technical capacity is our biggest strong-point, we never leave any problem with customers after mould is exported, 0% repair rate is what we are persuing.

Our Quality Commitment:
(1) Highly production stability, almost 0% repair in mass production.
(2) Dimension tolerance exactly in ISO standard unless specified
(3) No delay with delivery date, Fineking can work with a contract with panelties for dalay per day

Why Us:
(1) Price Stability: We work with legal contracts and always give a stable price, no surprises after quoting.
(2) No Communication Problems: Our well-trained staffs are well-trained and are proficient in technical communication.
(3) Strong Technical Capacity: We can help y· Ou in product design and development for reducing production cost for you.
(4) Advanced Management: We are certificated with ISO 9001: 2008 quality management system.

Material of Core & Cavity Cav. Mould Base Mould life(shots) Surface/Texture
P20                                                                                718H                                                                        NAK80                                                                2316 SAARSRAHL AG 1.2311 1*1 LKM                                                                              LKM (HASCO 50#)                                                                            DME 300000                              500, 000                                    1000, 1000  EDM                                    MOLDTECH                                            High Polish

Machine Lead Time Special Advantage
Advance CNC, EDM, W-cut   30 Days Glossy Surface High Polish

Products Details:
Dimension (mm) Material Dimension control Tolerance
    2D/3D Device 0.02mm









Prod Model: GV-M-26
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mould Base: Lkm, Dme, 45# or C50
Cooling System: Water
Cavity: 1X1,1X2,1X4
Steel Of Cavity And Core: Nak80,2737,71
Surface: Mirror Polishing
Gate: Hot/Cold Runner
Tolerance: 0.01mm 2d/3D Control
Package: Wooden Box
Shaping Mode: Injection Mould
Application: Electronic
Installation: Fixed
Process Combination Type: Progressive Die
Shenzhen Good-Vision Technology Co, Ltd is the leading plastic moulds manufacturer in China, Based on the precision tooling, high technology and top mentality mould design. Jsl mould has established the main market in Spain, Brazil, Sweden, Australia, Ireland, U. S. A and etc.

Our products covers Plastic injection molding, Plastic blow molding, BMC/SMC/DMC/GMT glass fiber mold, Plastic injection molded products and Metallic punch products.

We use PRO-E, Solidworks, U. G., and Auto-CAD for moulds and products design, with very strong mould design and drawing reading ability. This ensures the good technical communications with clients, which can avoid any mistake occur.

We have utilized modern equipment such as CNC machining center, EDM machine and EDM wire cutting machine. Modern CAD/CAM/CAE systems, such as those using UG, ProE, Solidworks and Cimatron, are also in place to assure the quality of our molds and molded products.

There are more than 3000 square meters Anti-dust work shop in our factory, we do OEM and ODM IML, IMD products such like IML panel, IMD cover, we are strictly for contro quality, our management team are run in ISO9001-2008 system.

Our mission is to provide our customers high quality products and services. We aim to exceed our customers' expectations in terms of pricing, quality and on-time delivery.

Currently we are making IML and IMD products it like mobiphone housing, Switch pannel, Remote-Control, Touch pannel for home electronic products. And some specially technical like Thin wall injection, double injection and so on.
We are Located in: ShanKeng Industrial Park, No. 100 Keyuan West Road, Shanxia Village, Pinghu Street, Longgang District, Shenzhen, just 1 hour bus ride from Shenzhen International Airport and 2 hours from Hongkong International Airport.

The company owns modern standard Mold workshop and 100K-class Clean injection Room with an area of 10, 000 square meters. It has set up precision mold division, ordinary injection molding division, IML/IMD injection molding division, and silk screen division. By virtue of standard production and management mode, as well as precise mould processing equipment and advanced injection molding equipment, it provides customers of high quality consumer electronic plastic products by OEM and ODM. The company is committed to providing iPhone4 peripheral accessories and Ideal products for the iPhone4 users.

"High Quality, Good Faith, Sincere Service, Customer Supremacy" is the company's business philosophy. "Quality, Efficiency, Innovation" is its professional spirit. The company advocates the humanism of "Respect, Understanding, Encouragement, Progress, Innovation". It wishes to make Business cooperation with friends from all over the world.

Welcome to visit our factory, we are glad to meet you in China.
