Gold Mining Machine for Sale Rare&Precious Metal Melting Machine
Price: |
US $ 4000/Set |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |

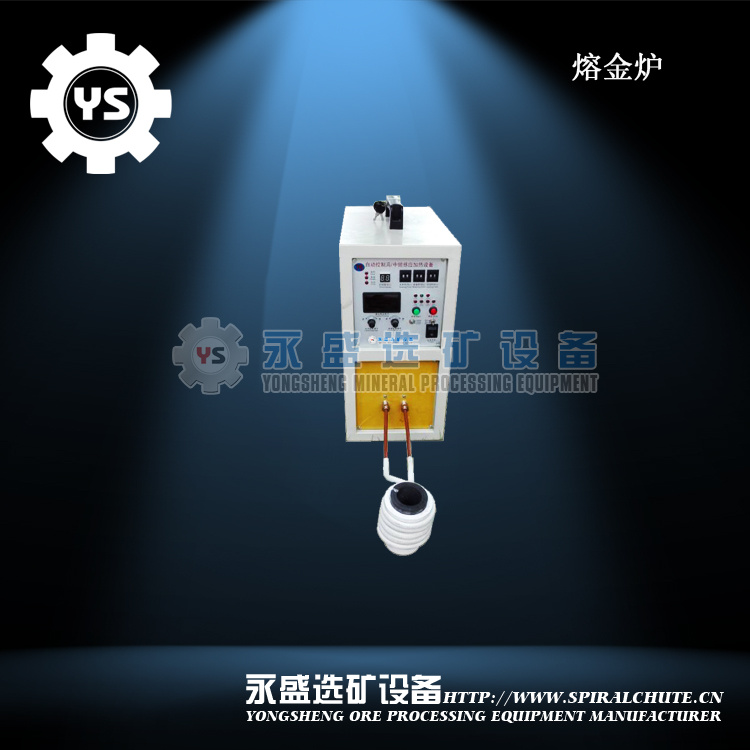

Brief Introduction of Gold Melting Machine:Working Principle:SIEMENS IGBT frequency conversion power module technology has adopted in this machine which can guarantee the melting point.As the AC power on, machine will generate strong frequency conversion power which will finally form a strong magnetic field as the power go through electromagnetic coil.Then as the magnetic field works, heating of work table will result in prompt heating of materials to be melt.Main Features:1.Prompt heating:Heating in 1s with adjustable heating time.2.Environmentally sound and energy saving:Over 95% heat efficiency.3.Safety&reliability guarantee:Short circuit protection, overheating proof.4.Convenient to use:1 m2 floor space&easy to move.5.Simple&easy assembly and operation:No need for additional adjustment.6.With electromagnetic agitator:Make your ore more evenly&metal solution purer.7.Main melting metals:Platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon, gold dust, electrolytic slime and so on.Models&Parameters:Models&Parameters |
Model | Portable | Cabinet |
YS-TG-15A | YS-TG-25A | YS-TG-35AB | YS-TG-15A | YS-TG-25A | YS-TG-35AB |
Voltage | Single phase 220V | Three phase 380V | Three phase 380V | Single phase 220V | Three phase 380V | Three phase 380V |
Power | 5kw | 5kw | 10kw | 5kw | 5kw | 10kw |
Effective Melting Quantity | 1 to 2Kilogram | 1 to 4Kilogram | 1 to 8Kilogram | 1 to 2Kilogram | 1 to 4Kilogram | 1 to 8Kilogram |
Melting Time | <3min | <5min | <5min | <3min | <5min | <5min |
Dimension | 49cm×24cm×48cm | 59cm×26cm×48cm | 59cm×26cm×48cm | 45cm×45cm×90cm | 45cm×45cm×90cm | 45cm×45cm×90cm |
Weight | 20Kilogram | 28Kilogram | 35Kilogram | 75Kilogram | 85Kilogram | 85Kilogram |
Application:This machine is used in rare&precious metal melting after concentrating.As metal melted, a jewelry&ornaments mould will make production of jewelry and ornaments possible.Thus this machine is widely used in jewelry make and ornaments production.Product Category:

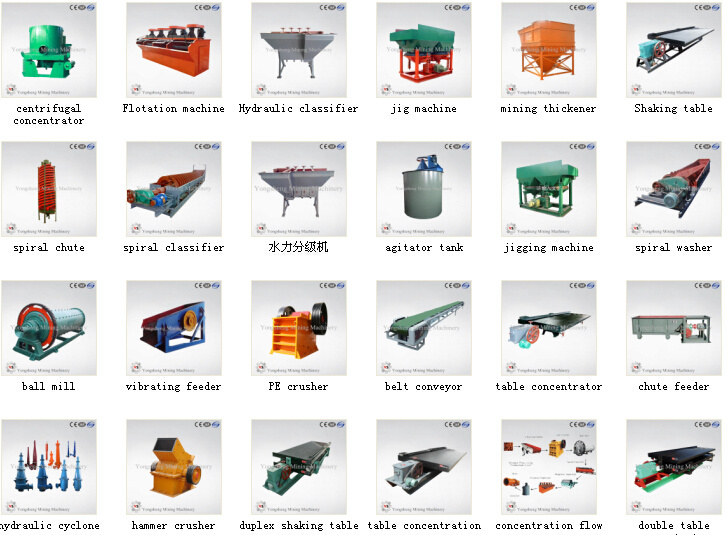

We are manufacturer and our main products includes shaking table, jiggers, spiral chutes, flotation machines, spiral classifiers, ball mills, agitation tanks, feeding machines, vibrating screen, crushers, sand pumps, magnetic separators, hydraulic grader, hydraulic cyclones, sand machines, laboratory sand pumps, laboratory mills, laboratory shakers, laboratory spiral chutes, laboratory crushers, laboratory floation machines, laboratory magnetic separators, laboratory mixing barrels, laboratory grinding machines and so on......

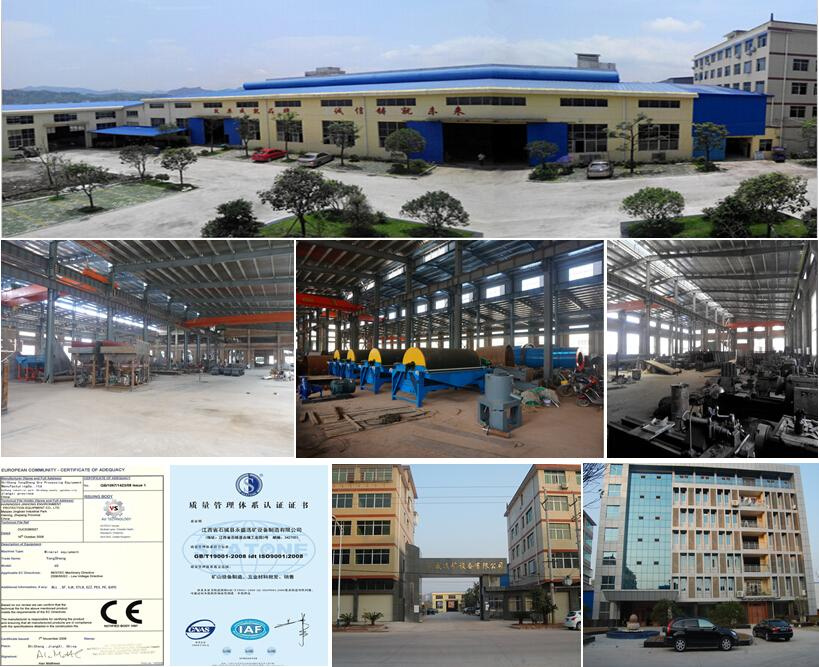

Factory Outlook:
Welcome to our factory!
Address:No.3 GuZhang Industry Zone, Shicheng County,Ganzhou city, Jiangxi province ,China
Contact:Roder +86 13184529682
Prod Model: |
YS-TG-25A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
Three Phase 380V |
Easy Operation: |
Adjustable Tempreture&Melting Process |
ShiCheng YongSheng ore processing mineral Equipment Manufacturing Co., Ltd. is an import-export trade Company Specialized in the production, sale, installation of mineral equipment, environmental protection equipment and other ore grinding Equipment. Our company has been approved for registration by relevant departments, and can provide users with project design, process design and uniform and non-uniform design services. Our machines are widely used to separate iron, copper, gold, silver, lead, molybdenum, tungsten, manganese and other rare and precious metals. Our products are now widely used in metallurgical, mining, chemical, construction, coal processing, refractory and research fields
We are the manufacturer. Our main product include shaking tables, jiggers, spiral chutes, flotation machines, spiral classifiers, ball mills, mixing tanks, feeding machines, vibrating screens, crushers, sand pumps, magnetic separators, hydraulic graders, hydraulic cyclones, sand machines, laboratory sand pumps, laboratory shakers, laboratory spiral chutes, laboratory flotation machines, laboratory ball mills, laboratory crushers, laboratory magnetic separators, laboratory mixing barrels, grinding machines and so on
Our company reputation insist "Customer is first"we can make product according to customers' requirement. Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
