Home Mould Products Graphite Cricible #16

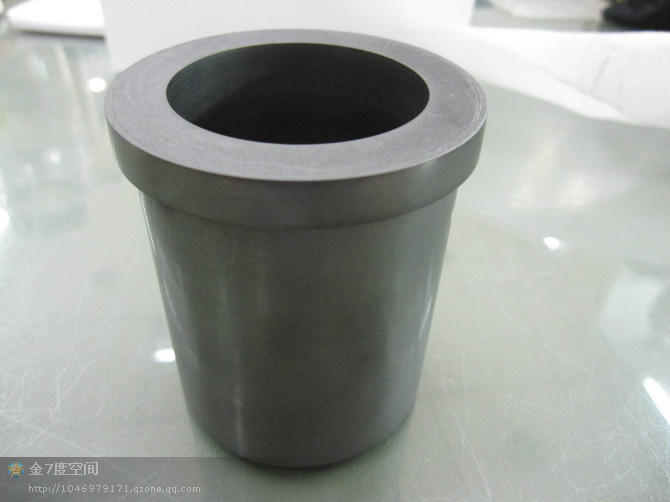

Graphite Cricible #16

Graphite Cricible #16
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Specifications
1. High density
2. Used for casting metal
3. Produced as your drawing
Size Top Diameter Bottom Diameter High Top Ply Bottom Ply
1# 70 46 78 9 12
2# 87 60 108 9 13
3# 102 71 120 10 13
4# 112 80 131 11 15
5# 121 83 141 11 15
6# 121 83 154 12 15
8# 137 94 169 13 17
10# 148 100 186 14 18
12# 156 107 192 14 19
16# 164 111 212 17 19
20# 183 120 232 18 22
25# 196 128 250 19 25
30# 208 146 269 19 25
40# 239 165 292 19 26
50# 257 179 314 21 29
60# 270 186 327 23 31
70# 280 190 360 25 33
80# 296 189 356 26 33
100# 321 213 379 29 36
120# 345 229 388 32 39
150# 362 251 429 32 40
200# 395 284 483 36 43
250# 430 285 557 40 45
300# 455 290 610 46 52
400# 526 318 661 47 53
500# 531 318 713 49 56
600# 580 380 610 45 55
750# 600 380 650 40 50
800# 610 400 700 50 60
1000# 610 400 780 55 65
1500# 720 450 790 60 70
2500# 875 640 1000 60 70

Prod Model: #16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standerd: Industry
Carbon Content: High-Carbon
Grade: UHP
Type: Graphite Crucible
Crystal Morphology: Flake Graphite
Forming Way: Extruded Graphite
Composition: SiC
Handan yongsheng carbon Co., Ltd. is a manufacturer which specilizes in making various carbon-graphite products. We have became the one of leaders among the carbon-graphite enterprises since our company established.

The company mainly produce graphite vane, graphite mould, graphite bearing, graphite bush, mechanical seal ring, graphite rod, graphite plate, graphite block, graphite crucible, and various carbon brush, carbon brush for powertools, silver carbon brush, etc. And we also supply high purity graphite material.

We have our own production line which has advanced equipment and first-class producing technics. We keep providing good quality product and reasonable price.

Nowadays there"s not only opportunity, but also competition. The company believes in the spirit of "equality and mutual benefit" and "abiding by contract and keeping promises" all along. We are looking forward to furthering our business relationship with friends both at home and abroad. And we will do our best to offer you satisfied products and great after-sale services.
