GRAPHITE BLOCK
We can provide a series of vibration molding specialty graphite from coarse to medium grain, available mainly as round and rectangular blocks with the grain size from 0.8 to 4mm. Simple-shape machined parts, such as graphite plates, bricks, discs and sleeves can also be provided. Highly homogenous structure, excellent consistence, and outstanding performance set our 0.8mm-grain graphite apart from other competitors in China and make them parallel with any world top grade in their line.
Application:They are mainly used in cement industries in kiln machines. These industrial graphite blocks are also used in various chemical industries like copper, zinc, aluminum extrusions industries, glass, cables manufacturing units, paper mills etc. We make our graphite carbon blocks available in the best quality and that also at the industry leading prices.
Test Item | Unit | JXB1 | JXB2 | JXB3 |
Electric Resistance | µΩm | 8.3 | ≤8.0 | ≤9.0 |
Bulk Density | g/cm3 | 1.72-1.74 | 1.70-1.72 | 1.68-1.70 |
Grain Size | mm | 0.8 | 0.8 | 0.8 |
Compressive Strength | Mpa | 40 | ≥35 | ≥32 |
Bending strength | Mpa | 17.5 | ≥14.5 | ≥14.5 |
Porosity | % | 18 | ≤20 | ≤22 |
Ash Content | % | 0.09 | ≤0.2 | ≤0.3 |
C.T.E. | 100-6/°c | 2.4 | 2.5 | 2.9 |
Size | mm | 400x400x1800-2600 650x400x1800-2600 760x500x1830-2000 950x500x1900 | 500x500x1800-2600 610x610x 1800-2600 850x400x1800-2600 1120x400x2200 | |

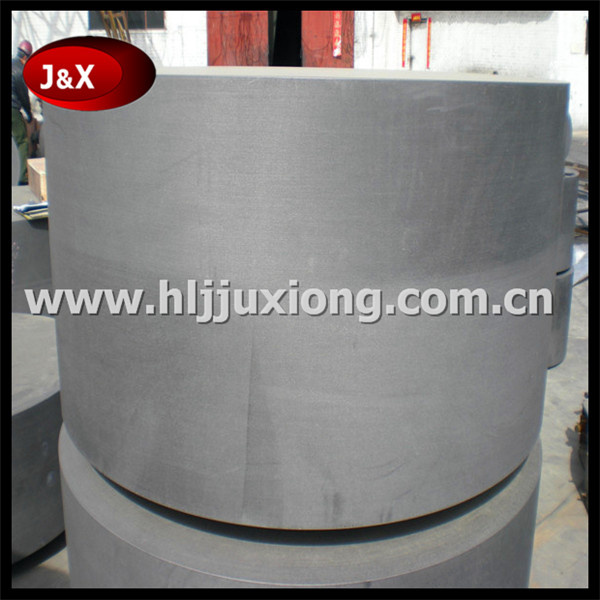

GRAPHITE DISC
Test Item | unit | JXD1 | JXD2 |
Electric Resistance | μΩm | 8.5 | 8.5 |
Bulk Density | g/cm³ | 1.72-1.74 | ≥1.70-1.72 |
Grain size | mm | 0.8 | 0.8 |
Compressive Strength | M pa | 34 | ≥32 |
Bending Strength | M pa | 15 | ≥14.5 |
Porosity | % | 18 | ≤20 |
Ash content | % | 0.11 | ≤0.3 |
C.T.E.(100°C) | 100-6/°C | 2.5 | ≤2.5 |
Size | mm | Max. diameter:1500mm Max. height: 600mm |
GRAPHITE BLOCK
We can provide a series of vibration molding specialty graphite from coarse to medium grain, available mainly as round and rectangular blocks with the grain size from 0.8 to 4mm. Simple-shape machined parts, such as graphite plates, bricks, discs and sleeves can also be provided. Highly homogenous structure, excellent consistence, and outstanding performance set our 0.8mm-grain graphite apart from other competitors in China and make them parallel with any world top grade in their line.
Application:They are mainly used in cement industries in kiln machines. These industrial graphite blocks are also used in various chemical industries like copper, zinc, aluminum extrusions industries, glass, cables manufacturing units, paper mills etc. We make our graphite carbon blocks available in the best quality and that also at the industry leading prices.
Test Item | Unit | JXB1 | JXB2 | JXB3 |
Electric Resistance | µΩm | 8.3 | ≤8.0 | ≤9.0 |
Bulk Density | g/cm3 | 1.72-1.74 | 1.70-1.72 | 1.68-1.70 |
Grain Size | mm | 0.8 | 0.8 | 0.8 |
Compressive Strength | Mpa | 40 | ≥35 | ≥32 |
Bending strength | Mpa | 17.5 | ≥14.5 | ≥14.5 |
Porosity | % | 18 | ≤20 | ≤22 |
Ash Content | % | 0.09 | ≤0.2 | ≤0.3 |
C.T.E. | 100-6/°c | 2.4 | 2.5 | 2.9 |
Size | mm | 400x400x1800-2600 650x400x1800-2600 760x500x1830-2000 950x500x1900 | 500x500x1800-2600 610x610x 1800-2600 850x400x1800-2600 1120x400x2200 | |
GRAPHITE DISC
Test Item | unit | JXD1 | JXD2 |
Electric Resistance | μΩm | 8.5 | 8.5 |
Bulk Density | g/cm³ | 1.72-1.74 | ≥1.70-1.72 |
Grain size | mm | 0.8 | 0.8 |
Compressive Strength | M pa | 34 | ≥32 |
Bending Strength | M pa | 15 | ≥14.5 |
Porosity | % | 18 | ≤20 |
Ash content | % | 0.11 | ≤0.3 |
C.T.E.(100°C) | 100-6/°C | 2.5 | ≤2.5 |
Size | mm | Max. diameter:1500mm Max. height: 600mm |
