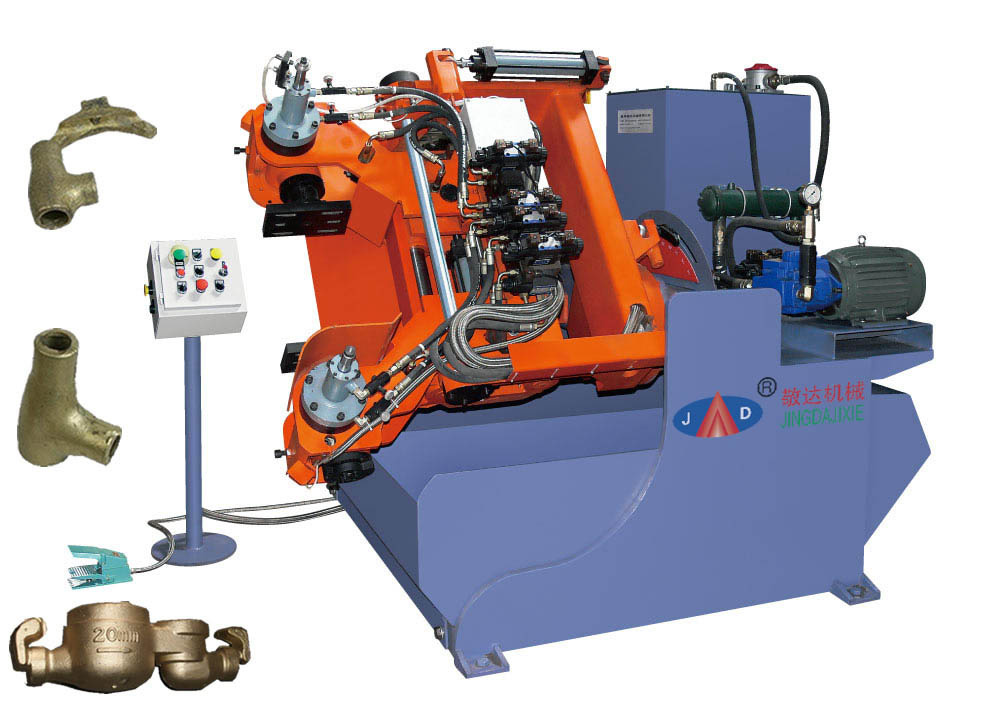

Gravity Die Casting Machine with Photos (JD-AB400)

Gravity Die Casting Machine with Photos (JD-AB400)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
JD-AB400 Gravity Die Casting Machine
I. Introduction
1. Application
JD-AB400 gravity die casting machine is used for producing copper alloy castings of large and medium size or castings of small size whose molds contains several cavities.
Maximum dimension of the equipment: 1300*1600*1350mm

2. Machine components
The machine consists of three parts, such as mechanical part, hydraulic part and electrical part. Material used in mechanical part is well-selected steel. Both pneumatic and electrical part use products of world-famous brands. Therefore we can assure you that our products are of high quality.

3. Main specifications and technical parameters:
(1) Maximum outlined diameter of mold: 400 mm
(2)Maximum weight of mold: 120 kg
(3)Maximum distance of mold baseplate: 480 mm
(4)Maximum clamping stroke: 250 mm
(5)Angle range of lateral casting: 0~90 deg
(6)Angle range of pre-casting: 0~110 deg
(7)Angle range of mold immersion: 0~90 Centigrade
(8)Oil pressure: 50~70 bar
(9)Power capacity: 3.75+0.75+0.75kw
(10)Three phase power: 380 V/ 50Hz
(11)Oil tank capacity: 160 L
(12)Capacity of mold immersion tank: 375L+375 L
(13)Machine weight: 1600kg
(14)Machine size( L× W× H): 1300mm× 1600mm× 1350mm

II. About the after- sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.

Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
Prod Model: JD-AB400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Outlined Diameter Of Mold: 400 mm
Maximum Weight Of Mold: 120 Kg
)Maximum Distance Of Mold Baseplate: 480 mm
"Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.

Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.

We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
