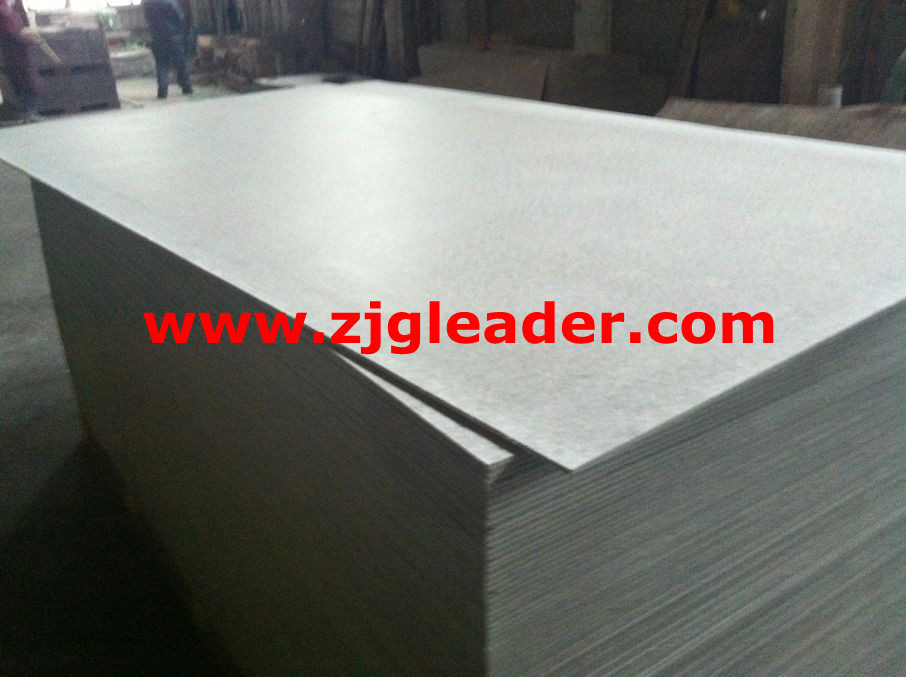

Green material fiber cement board
Composition: Wood fiber: 8%+Sio2: 35-45%+Ca materials: 15-30%+ Cement: 10-20%+Other Accessories: 5%.
Specifications:
1) Thickness: 4.5-20mm
2) Max. Width: 1, 220mm(Others could be also available according to your requirment)
3) Max. Length: 2, 440mm. 3, 000mm(Others should be also available according to your requirment)
Features:
1)Fire insulation: It is Class A non-combustible material
2)Waterproof and moistureproof
3)Heat insulation and sound absorption: Great thermal insulation performance since low thermal conductivity; Good sound insulation performance due to the high density.
4)Light and High strength
5)Economic and Beauty: With uniform color and surface, it can be used to building directly as interior an exterior wall partition, suspended ceiling, liner and so on.
6)Long service life
7)Easy processing: It can be cut, sawed, drilled, graved, painted, ceramic tile and wall paper pasted and so on.
8)Safe and harmless, cost-effective: It is 100% asbestos free and a typical green building material without formaldehyde, cinnamence, harmful dust and radiation produced during using
Application:
1. Internal and external wall body
2. Ceiling
3. Wall liner
4. Sound barriers
5. Composite wall panel
6. Furniture&toys moulding board
7. Aluminum plant
8. Furnace, electricity, insulation, heat insulation and other industrial boards
9. Access floor
Technical parameters: |
Item Unit |
Panel |
Panel |
Panel |
Density(g/cm3) |
0.95 ~ 1.10 |
1.10 ~ 1.25 |
1.25 ~ 1.40 |
Horizontal folding endurance Mpa |
10.5 |
11-16 |
20.9 |
Vertical bending strength Mpa |
8.55 |
11-13 |
17.9 |
Screw pull N/mm |
72.1 |
86.3 |
109.0 |
Coefficient of heat conductivity W/m.k |
0.175 |
0.168 |
0.150 |
Drying shrinkage rate % |
0.066 |
0.069 |
0.089 |
Bulking rate % |
0.193 |
0.195 |
0.199 |
water-content rate % |
2.7 |
3.1 |
3.3 |
Rate of moisture absorption (48 hours) % |
5.21 |
6.37 |
9.21 |
Frost resistance |
No chapping and slip cracking occur after 25 times of frost-smelting circulation under the tempeature of 25°C in which freezing lasts 1.5 hours and smelting 0.5 hour for each time. |
Inflammable |
Inflammable class-A(A1) material |
Zhangjiagang Leader Import & Export Co., Ltd. is the key member of Leader Group Industry Co., Ltd., been dedicated to the R&D, manufacture and international trade of fire-proof material, ceiling and wall partition system since 2002. At present, we have our own factories in Zhangjiagang City.
The main products we manufacture and export as below:
A. MGO board
(Common board, Sanded board, Slurry board)
B. Ceiling
(Perforated acoustic panel, PVC ceiling, Mineral fiber ceiling)
C. SIP sandwich panel
(MGO+EPS/XPS+MGO, FCB+EPS/XPS+FCB, FCB+EPS/XPS+MGO)
D. Cladding
(Pattern: Impression, Tile, Face brick, Timber grain, Sand rock, Broken stone, Broken brick, Ceramic brick, ODD brick, Culture stone)
E. Fiber cement board/Calcium silicate board
F. Melamine MGO board
(HPL, UV, Plywood)
G. Stone coated metal roof tile
(Angle hip, Eave flashing, Valley tray, Box barge cover)
H. Accessories
(Screw, Tape, T-grid, Steel stud)
Since 2007, we have invested over $10 million with 6 workshops and 6 automatic production lines in the production of construction materials, annual output is over 20, 000, 000 sqm. " Leader" brand of products are welcomed in Southeast Asia, the US, the Middle East and other countries and regions.
We produce your orders following ISO 9001: 2008 and CIS management guidelines. We constantly insist on the principle-quality and customers first that no substandard products can be delivered to clients.
Welcome to visit our company! For further information, pls contact us now, thank you!
