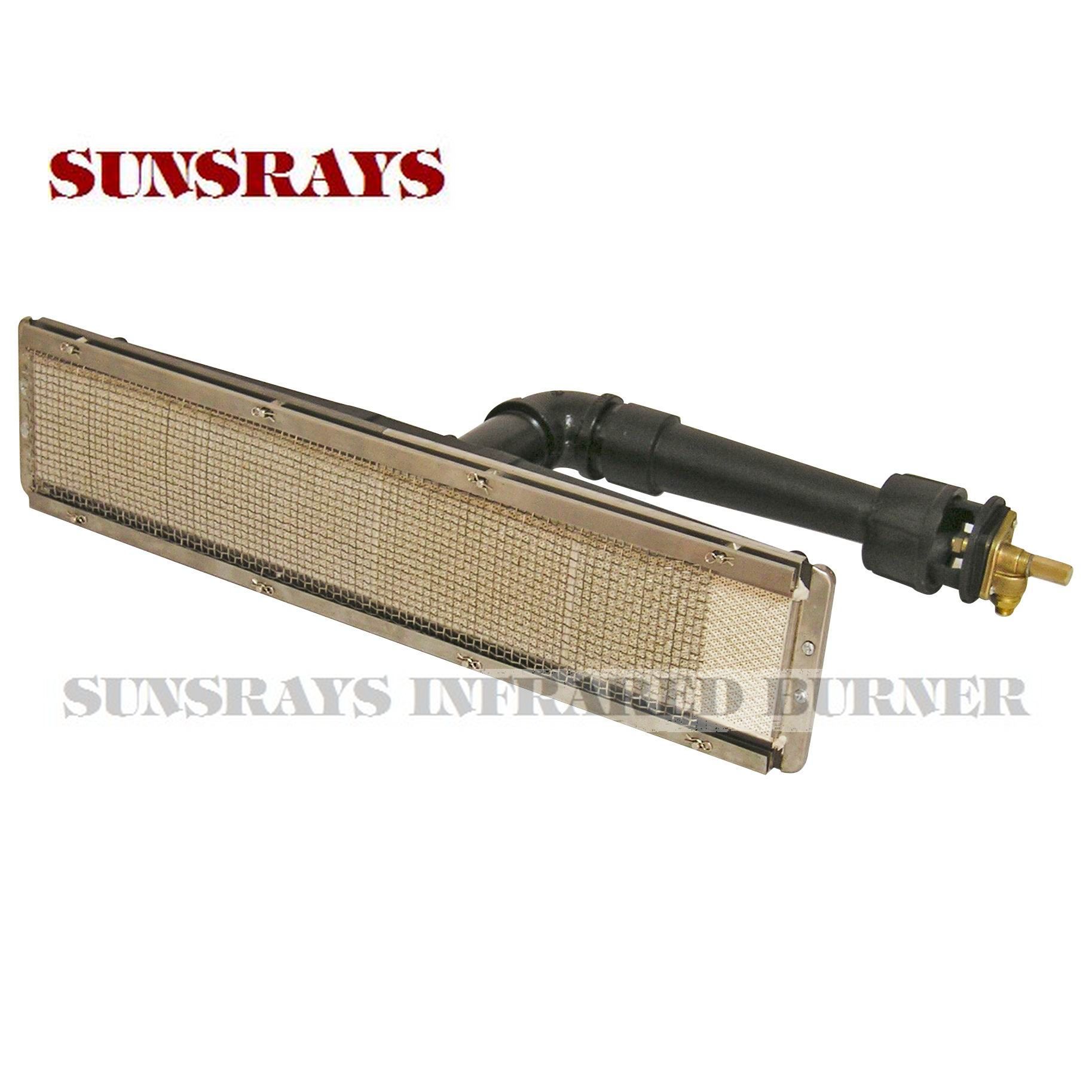

Item: Sunsrays gas infrared burner
Model No.: GR-1602
Dimensions(L*W*H): 560*135*185
Heat output(kcal/hr): 5400
LPG consumption(Kg/hr): 0.46
Weight(kg): 8
Using LPG or LNG
Coating industry: Forging heat coating, liquid, powder coating, pre-heating the water to deal with dry acid.
The food industry: Drying for processed food such as cookies, egg rolls, snow rice cakes, shredded squid, fish sauce, ham etc; Tea processing and baking. Bake ceramic mold industry, the health and embryos, the surface drying of glazed ceramic tiles.
Infrared burner (GR1602) work characteristics:
Safety: 2.8 kPa low pressure natural ejector way premixed, more secure and reliable.
Efficient: Strong imported ceramic plates heat storage capacity, wide adjustment range, good radiation effects; its surface temperature may be in the range of 475 to 950 degrees Celsius adjusted to better carry out the coating operations.
Saving: 1.63KW monolithic ceramic plate heating power, 0.12kg / hr monolithic ceramic plate ultra liquefied gas consumption.
Environmental protection: the entire system COX, NOx emissions below international standards related industries (in the standard system configuration and use of environment). Pide range of applications: the option of using natural gas, liquefied petroleum gas, artificial gas and other gas.
Precise control: by the drive, the actuator and valve, the furnace temperature throughout the system, PLC or OPTO22 central control module for precise control of the combustion.
