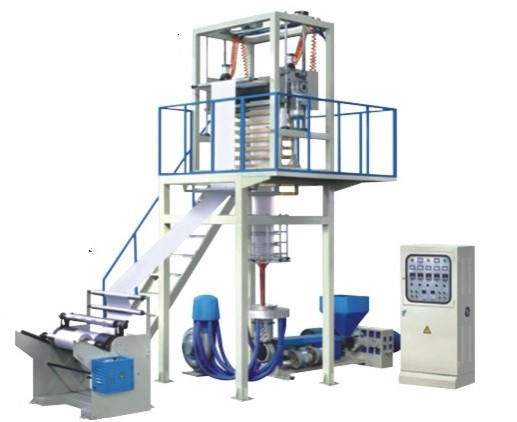

This HDPE, LDPE plastic packing film blown moulding machine main feature as follow:
1. Die head is layer type spiral mandrel, continuous 3600 rotation.
2. Screen pack changer design is reliable, safe in operation and change the fitter screen easier.
3. Various functional parts may be installed to the lies., such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
|
Model |
SJ45-600 |
|
Suitable material |
HDPE, LDPE, LLDPE |
|
Max. folding of film |
600mm |
|
Film thickness( HDPE) |
0.009-0.05mm |
|
Film thickness ( LDPE) |
0.025-0.11mm |
|
Max. extrusion output (HDPE) |
40kg/h |
|
Max. extrusion output (LDPE) |
45kg/h |
|
Average power consume |
18kw |
|
Cover dimension |
5000×2000×4000mm |
|
Extruder |
|
Screw diameter |
45mm |
|
Screw L/D ratio |
28:1 |
|
Screw material |
SACM-65/38CrMOLA |
|
Cylinder material |
SACM-65/38CrMOLA |
|
Cylinder cooling |
370×3 |
|
Driving motor |
7.5kw |
|
Temperature control |
3 set |
|
Type of die |
|
Die size |
50/80mm |
|
Temperature control |
2 set |
|
Air ring |
1 set |
|
Center steady stick |
1 |
|
Take-up unit |
|
Roller width |
650mm |
|
Height adjustable type |
600mm |
|
Take-up speed |
10-80m/m |
|
Take-up motor |
0.75kw |
|
Winding unit |
|
Type |
Surface friction/ cente4r rewinder |
|
Winding motor |
4kw |
|
Winding speed |
10-80m/min |
|
Parts for choice |
1. lift traction; 2. Rotary mould; 3. double cutting and rewinder; 4. surface treatment. |
