Product Description
Plastic Machine, Plastic Machinery, Plastic Pipe Extrusion Line, Plastic Pipe Production Line
Plastic HDPE Winding Pipe Production; Line/Extrusion Line/Extruder Machine

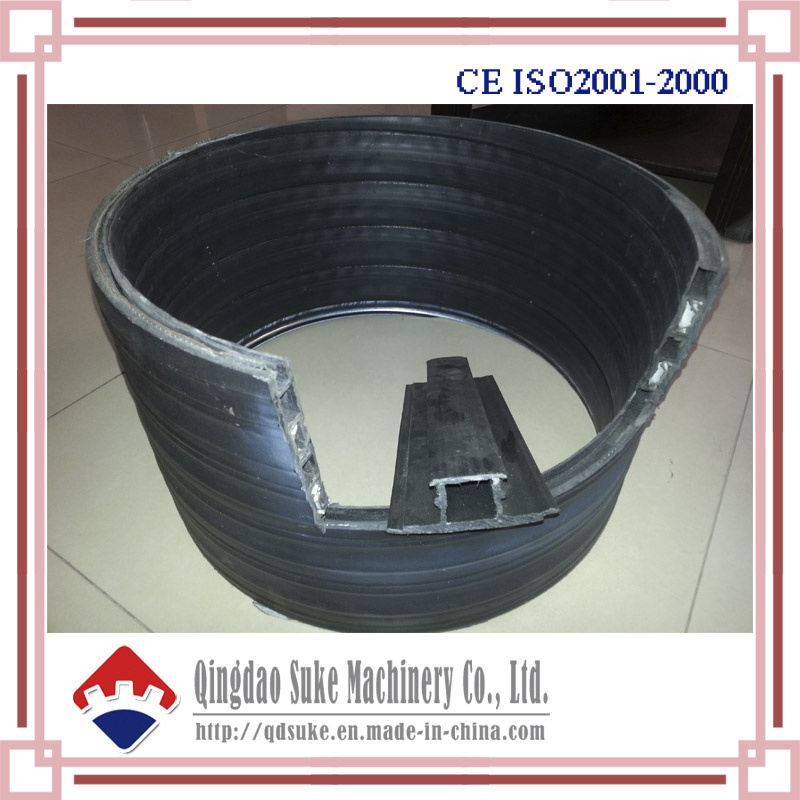

Features of HDPE Large Diameter Hollow Wall Winding Pipe
1). High Ring Stiffness
2). High Brunt Intensity and low weight
3). Good creep deformation resistance.
4). Outer pressure resistance.
5). Erosion resistance ( such as acid, alkali and salt etc. )
6). Long life of approximate 50 years. No pollution and so on.
Application of HDPE Large Diameter Hollow Wall Winding/Coil Pipe:
It has been widely used for sewerage and drainage in city, it will replace the cement pipe, cast iron pipe and other pipes. Its low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potential.
Features of HDPE Large Diameter Hollow Wall Winding Pipe Extrusion Line:
1. HDPE Large Diameter Hollow Wall Winding Pipe Production Line designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank, 2ND single screw extruder for melting glue material, spiral forming unit, cutting unit and stack unit.
2.1st single screw extruder for square shaped pipe and 2ND single screw extruder for melting glue material: Extrusion theory for low energy consumption and low temperature plastication compliant with material characteristic (heavier molecular weight), Unique screw design of distance-changing and separation of solid material and melting material, Unique design of loading system ensures large increasing of extrusion capacity. Special design of high mix-melting ensures through low temperature plastication.
3. Spiral forming unit: Adopts advanced multi-axes transmission box with feature of high transmission force and stable running performance. Unique design of composite die-head, rotational molding after combined feed, and two sets of extruder extrude PE for winding pipe, High quality of winding pipe produced by adopting the unique winding process for pipe forming, The glue extruder can be moved in up and down, left and right direction. PLC computer control system with touch screen interface can realize automatic and reliable operation
4. Cutting part: Saw cutting with desired length. OMRON or MITSUBISHI PLC computer control system with touch screen interface can realize automatic and reliable operation.
5. PLC computer control system with touch screen: With super high speed and large storage capacity, Multi control points: Forming pipe extrusion, melting PE adhesive extrusion, winding and cutting process can be auto-tail controlled synchronously, Separately controlling two extruder and winding unit in tandem with two touch screens.
6. It includes two parts.
The first part is PE Pipe Production Line. The function of it extrude PE/PP pipe or PE/PP Square Shaped Pipe ( according to your customer requirement ). It include as following equipment:
TSJ series Single Screw Extruder / Die Head ( outer mold and mandrill) / Calibration Sleeve / Vacuum Cooling Tank / Spray Cooling Tank
If you want more details about it please contact us, and I will do my best for you.
pipe diameter | output |
| Φ200-800 | 280 | 8X20X2.6 |
| Φ600-1200 | 500 | 10X23X2.7 |
| Φ1000-1500 | 600 | 28X18X6 |
| Φ1500-2000 | 700 | 30X20X7 |
| Φ2000-3000 | 800 | 32X20X8 |
Qingdao SUKE machinery Co. Ltd was founded in 2002 year. Our company is the first independent research and developed of PE double-wall steel hollowness pipe machine in China. The company main products is: PET sheet product machine/ WPC profiles machine/PERT-AL-PERT pipe machine/ PVC, PE, PP sheet ma chine...etc.
We have advanced machining system, strong technical reserve and perfect inspection system, with high-rank engineers of years' experiences in machine processing, electric automation and long-term sustaining cooperation with a number of colleges and universities. Through borrowing and researching advanced international technologies and engineering in plastic processing, we co-developed and manufactured products such as WPC(wood plastic composite), pipes, profiles, rods, sheets, reinforced bands, packing, stretched filament and ropes, cables, and plastic kneading and re-generation products, up to 10 categories, and 100 specifications, with high automation, high capacity, and stable performances. Our plastic products are involved into the fields such as industry, agriculture, woods, state defense, ocean, mineral, power of electricity, and urban building etc. And our machines are well sold in domestic markets, and also sold to Russia, Ukraine, Turkey, Iran, India, and many countries in South-east Asia, confirmed and appraised by customers from both home and broad, which already
Made sustaining collaborating partnership relations with us.
The company persists in the core idea of satisfactory of the customers and consistent innovation. With the advanced technology and manufacturing equipment, advantaged in creative and first class team, it provides customers with quicker response and high quality services.
