Heavy Thickness Aluminium Plate 5052 5083 5086 5754 5005
| Price: |
US $ 1000/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Ton |
| Pay Type: |
L/C,T/T |
Heavy Thickness Aluminium plate 5052 5083 5086 5754 5005
Aluminium plates are produced from aluminium slabs through the processes of re-heating, hot rolling, stretch leveling, or solid solution heat treatment (aging). Signi aluminium's high strength alloy aluminium plates hold a good reputation for homogenous chemical composition with good mechanical properties and strict tolerances on dimensions, and are widely used for the manufacture of precision molds and in the machinery industries.
Aluminum plate are gaining greater application in the transportation industry as substitute materials to reduce weight and thus conserve energy. In addition to the traditional usages in aviation and ship-building, aluminum plate are also utilized in the automobile and motorcycle industries. Furthermore, aluminium armored plates are the necessary materials for the body parts of armored vehicles.
|
Hot rolled plate |
|
As one of China' s leading producers of flat rolled products, Signi' s aluminium sheet is produced from its own cast slabs or continuous cast coils, rolled down to customised thickness, gauge and tolerances. Our hot rolled plates are durable and deliver long lasting performance. Application areas: Electrical busbars and ducting, ships, boates, tanks, defence and industrial uses, aircrafts. |
|
Specifications |
|
Alloys (AA) |
Temper |
Thickness range (mm) |
Length range (mm) |
Width range (mm) |
1050, 1060, 1070, 1080, 1100, 1200, 3003,
3105 and 8011 |
F and O |
6 _ 300 |
1000 _ 10000 |
500 _ 2700 |
5052, 5A02, 5A03, 5A05, 5251, 5181, ,
5083, 5086,
6061, 6082, 6063, 7075, 2024 |
F and O
H111, H112, T4, T6 (For 6061, 6063), T651(Stretched plates) |
6 _ 300 |
1000 _ 10000 |
500 _ 2700 |
|
Stretched plates |
|
Thickness limit |
6 _ 70 mm |
|
Length limit |
2000 _ 10000 mm |
|
Chemical composition |
|
Alloy (%) |
5052 |
5083 |
5086 |
5754 |
6061 |
7075 |
|
Si |
0.25 |
0.40 |
0.40 |
0.40 |
0.40_ 0.80 |
0.40 |
|
Fe |
0.40 |
0.40 |
0.50 |
0.40 |
0.70 |
0.50 |
|
Cu |
0.10 |
0.10 |
0.10 |
0.10 |
0.15_ 0.40 |
1.2_ 2.0 |
|
Mn |
0.10 |
0.40_ 1.0 |
0.20_ 0.7 |
0.50 |
0.15 |
0.30 |
|
Mg |
2.2_ 2.8 |
4.0_ 4.9 |
3.5_ 4.5 |
2.6_ 3.6 |
0.8_ 1.2 |
2.1_ 2.9 |
|
Cr |
0.15_ 0.35 |
0.05_ 0.25 |
0.05_ 0.25 |
0.30 |
0.04_ 0.35 |
0.18_ 0.28 |
|
Ni |
_ |
_ |
_ |
_ |
_ |
_ |
|
Zn |
0.10 |
0.25 |
0.25 |
0.20 |
0.25 |
5.1_ 6.1 |
|
Ti |
_ |
0.15 |
0.15 |
0.15 |
0.15 |
0.20 |
|
Each (Others) |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
|
Total (Others) |
0.15 |
0.10 |
0.10 |
0.15 |
0.15 |
0.15 |
|
Al |
Remaining |
Remaining |
Remaining |
Remaining |
Remaining |
Remaining |
|
Single number indicates maximum content. |
|

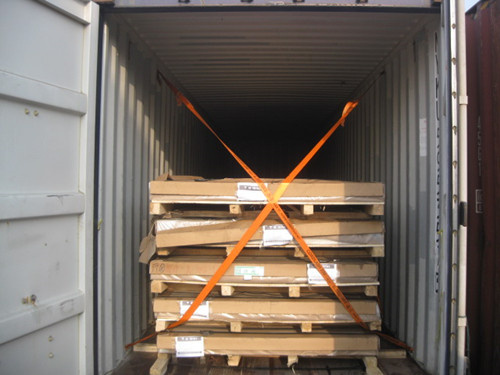

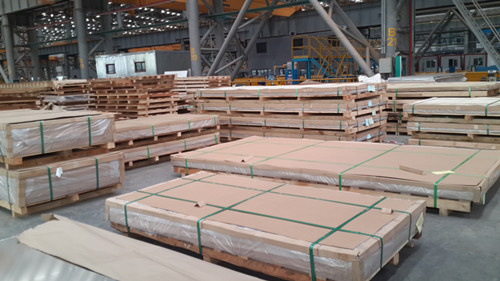

Packing |
|
Sheet: Sheets are placed in wooden boxes on wooden skids with runners along the length of the sheet. They are wrapped in HDPE with hardboard on top and bottom of the stack. Hoop iron strapping runs along the length of the sheets. Silica gel packets are put in the boxes for moisture protection. |
| Prod Model: |
5052 5083 5086 5754 5005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Grades: |
5 Series |
| Alloy: |
Alloy |
| Tempers: |
F and O,H111, H112, T4, T6 ,T651 |
| Applications: |
Mould,Tooling,Buses,Ship,Boat,Tanks,Armor,Aircraft |
| Thickness: |
6 _ 300mm |
| Length: |
1000 _ 10000mm |
| Width: |
500 _ 2700mm |
| Brand Name: |
Signi Aluminium |
| Place Of Origin: |
Zhengzhou China (Mainland) |
| Port Of Loading: |
Qingdao,Shanghai |
| Surface Treatment: |
Mill Finish |
| Shape: |
Flat |
| Temper: |
T3 - T8 |
| Grade: |
7000 Series |
| Certification: |
EN |
| Type: |
Aluminium Plate |
As one of the leading aluminum industrial corporation in China---"Henan signi aluminium Co., Ltd. ", we would like to take this opportunity to introduce us to you. We are Specialized In Producing
And Marketing Aluminium Hot -rolled Thick Plate, Aluminium circle/disc for cookware, Brazing aluminium sheet/strip, Aluminium strip for transformer winding, Color coated aluminium sheet/
Strip/coil, ROPP Cap Materials, Pharmaceutical Cap Materials, Aluminium Drilling Entry For PCB, Aluminium Tape For Aluminium Plastic Tube, Aluminium Strip For Framework Of Umbrella, Aluminium Base Plate For PS Board, Aluminium Bright Finish Tread Plate, Aluminium Checkered Plate, And Household Aluminium Foil, Aluminium Pharmaceutical Foil, Aluminium Packing Foil, Air-conditioner Foil, Aluminium Fin Materials, etc.
These Products Are Generally Applied To Moulding, Vehicles, Ships, Boats, Cookware, Brazing, Transformer winding, Air-conditioner, Washing Machine, Refrigerator, Cosmetic Package, Printing, Building Decoration, Aluminium ROPP Cap, Bus Floor, And Telecommunication Cable etc. Fields. Our Annual Production Is 250, 000 Tons, We Can Produce Almost Products Of 1-8 Series Aluminium Alloy. Especially The Hot-rolling Plates, Extra-wide Extra-thick Hard-alloy Aluminium Sheet, Brazing aluminiu sheet/strip, Aluminium circle, Aluminium strip for transformer winding, Color coated aluminium sheet/strip/coil, Embossed Aluminium Sheet Fill The Gap In The Domestic Market And They Are Widely Used In Packaging, Electronics & Electrics, construction, Transportation, Oil Reserve, Aeronautics & Astronautics And Light Industries etc. It Has Established A Long-term Cooperation With 500 Domestic And Foreign Enterprises. All Qualified Examined By Construction Materials By The State Quality Supervision Center And We Have Got ISO 9001: 2008 And CCS, So We Can Adapt To Meet Customer' S High Requirement Of Quality.
With reasonable prices, high quality, wide range products lines and good service, we have exported to US, Brazil, Chile, Germany, UK, Italy, UAE etc 31 countries, and we also would like to establish business relations with you, which we believe will bring both of us mutual benefit and common development.
