Hiboo Manufacture Tungsten Carbide Square Ball Nose End Mills

Name: Hiboo Manufacture Tungsten Carbide Square Ball Nose End Mills
Brand: themouldinfo.com
SKU: 646434315
Availability: InStock
Rating: 4.9 (45 reviews)

Price:	US $ 2.2-50/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Changzhou Hongjian Tools Co., Ltd.

Showroom Product Company Profile

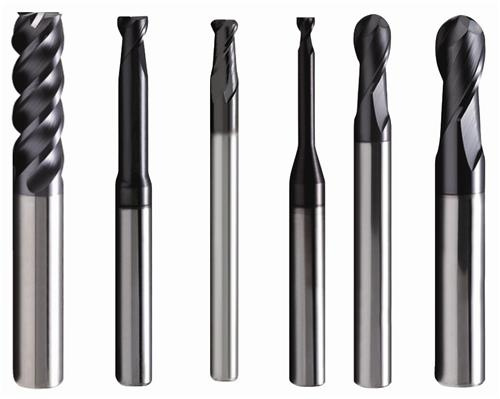

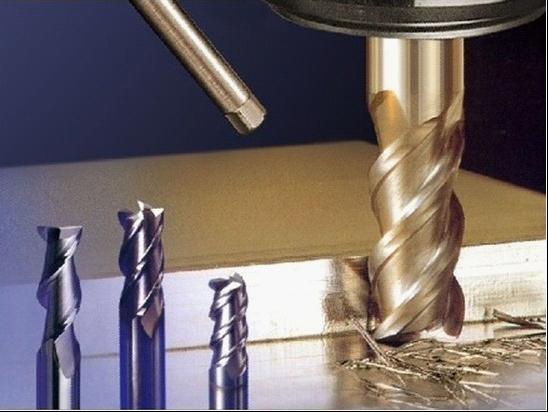

Hiboo Tungsten Carbide End Mills

Solid carbide square end mills
Solid carbide ball nose end mills
Solid carbide roughing end mills
Solid carbide Multi-flutes end mills
Solid carbide End mills for Aluminum

1. Raw Material

HRC45	HRC55	HRC60	HRC65
YG10X	YG10.2 &WF25(Taiwan)	K44 & K40	Kennametal/Sandvik
Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2	Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2	Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2	Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2

2.Super Coating

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

3. Made by ANCA Grinding Machine, Top from TaiWan
4. Each end mill is inspected by Zoller measuring and inspected machine.

5. Working scope : For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and for the woodworking industry.

6.The following Specification for your refer, We also provide the OEM or ODM service

Square End

(Order No)	Cutting	Flute	Shank	A.0.L
(Order No)	d	l	D	L
1.0×3×4D×50L×4F	1	3	4	50
1.5×4×4D×50L×4F	1.5	4
2.0×6×4D×50L×4F	2	6
2.5×8×4D×50L×4F	2.5	8
3.0×8×4D×50L×4F	3	8
3.5×10×4D×50L×4F	3.5	10
4.0×11×4D×50L×4F	4	11
3.0× 8×6D×50L×4F	3	8	6
3.5×10×6D×50L×4F	3.5	10
4.0×11×6D×50L×4F	4	11
4.5×13×6D×50L×4F	4.5	13
5.0×13×6D×50L×4F	5	13
5.5×13×6D×50L×4F	5.5	13
6.0×15×6D×50L×4F	6	15
7.0×16×8D×60L×4F	7	16	8	60
8.0 ×20×8D×60L×4F	8	20	8	60
9 ×20×10D×75L×4F	9	20	10	75
10×25×10D×75L×4F	10	25	10
11×25×12D×75L×4F	11	25	12
12×30×12D×75L×4F	12	30	12
14×35×14D×100L×4F	14	35	14	100
16×40×16D×100L×4F	16	40	16
18×40×18D×100L×4F	18	40	18
20×45×20D×100L×4F	20	45	20

Ball Nose End

(Order No)	Cutting	Shank	Flute	A.0.l
(Order No)	d	D	l	L
R0.5×2×4D×50L×2F	1	4	2	50
R0.75×3×4D×50L×2F	1.5	4	3	50
R1.0×4×4D×50L×2F	2	4	4	50
R1.25×5×4D×50L×2F	2.5	4	5	50
R1.5×6×4D×50L×2F	3	4	6	50
R1.75×7×4D×50L×2F	3.5	4	7	50
R2.0×8×4D×50L×2F	4	4	8	50
R2.5×10×6D×50L×2F	5	6	10	50
R3.0×12×6D×50L×2F	6	6	12	50
R3.5×14×8D×60L×2F	7	8	14	60
R4.0×16×8D×60L×2F	8	8	16	60
R4.5×18×10D×75L×2F	9	10	18	75
R5.0×20×10D×75L×2F	10	10	20	75
R5.5×22×12D×75L×2F	11	12	22	75
R6.0×24×12D×75L×2F	12	12	24	75
R7.0×28×14D×100L×2F	14	14	28	100
R8.0×32×16D×100L×2F	16	16	32	100
R9.0×36×18D×100L×2F	18	18	36	100
R10×40×20D×100L×2F	20	20	40	100

7.Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .

8. Payment Term
T/T ,Western Union , MoneyGram,L/C

9.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest

Prod Model:	SQUARE END MILLS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	1-20mm
Length:	50-150mm
Helix:	30/35 Degree
Coating:	Tialn/Altin/Nano
HRC:	45/55/60/65
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Point to Point Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools
Processing Precision:	0.002

We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.

Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.

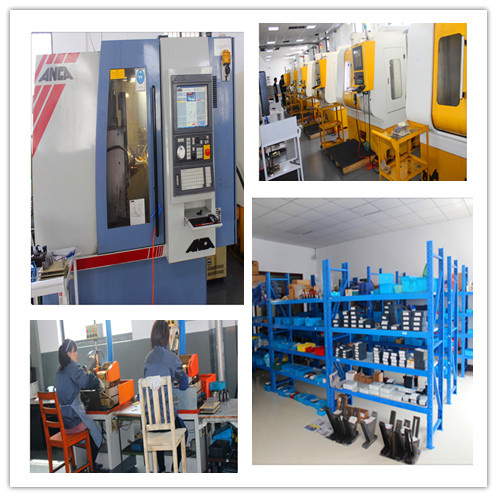

Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.

We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
