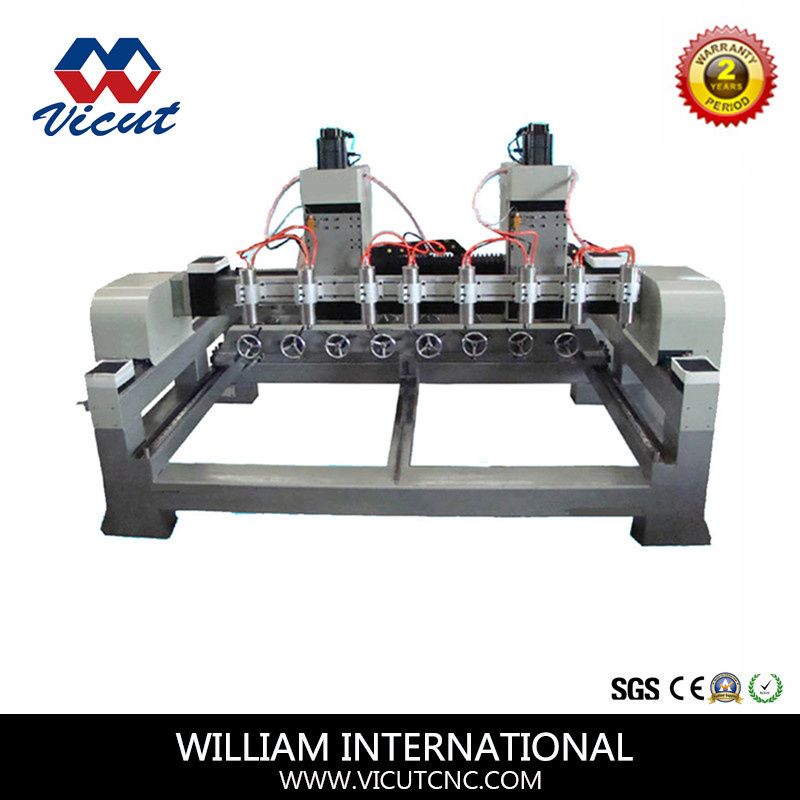

CNC Wood Router with Rotary Axis(R Series)
Features:
1. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time.
2. Z axis plat width is 900mm, ensures the balance during working to avoid vibration. (VCT-7090R-4H Z plat is 300mm)
3. Use gear rack locking system instead of common screws to adjust and fix the rotary device, more tight and stable.
4. XYZ axis use PMI25MM linear square rails, ensures stable work. (VCT-7090R-4H XYZ axis use PMI 20mm linear square rails. )
Applications:
Perfectly be used in manufacturing furniture, cabinet, handrail, crutch, wood crafts, doors, windows, acrylic signs, guitar and other musical instruments, etc.
Machine Details Show:
1. Base Frame: The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2. Multiple Cooling Spindle: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc; We offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Series of tools are available, for example, diameter 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3. Ball Screw: Use TBI ball screw for Z axis, anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy.
4. Gear rack: XY axis use high accuracy gear rack. The combination for ball screw and gear rack makes machine working more accurate and stable.
5. Servo Motor: AC Panasonic Servo motor for more smooth motion and triple working speed and they require no regular maintenance. 6. NC Studio Controller: PC based NC Studio Controller with more friendly human/machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control. Better anti-interference performance due to control signal adopting differential signal input/output, featured as power failure protection function, linear interpolation, circular interpolation, intelligent look-ahead, reverse cutting, backlash compensation, breakpoint memory and block skip, etc.
7. Rotary Axis: Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters; We can put different number of rotary axis according to specified requirement.
8. Control Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
9. Central Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
10.4 AXIS Software: You can use power-mill software to make processing of 3D files which was scanned with 3D scanner. We can make 4 axis movements, AXYZ axis can move at the same time.
Optional parts:
1.3D Scanner: A fast and easy to operate device for massive production based on complicated three-dimensional samples. Good for woodworking, small molds, plastic products, shoe last and soles mold, sculpture, artifacts, toy, tooth, jewelry design, core carving, fine pieces design, small toy parts, etc.
2. Nebulizer Cooling System: It sends oil mist to machining surface, it is important for tool cooling and lubricating.
Which machine is right for your business?
Our Engraving and CNC Routing Systems are capable of doing a variety of applications. Desired size, shape & production volume are factors in determining which machine is right for you. Contact us today & have one of our technical consultants assist you in finding a machine that best fits your needs.
| Model | VCT-7090R-4H | VCT-3512R-6H | VCT-2512R-8H | VCT-2013R-2Z-8H |
| Machine Size(X*Y) | 1000×940mm (3.3'x3.1') | 3500 x 2000mm
(11.6'x6.6') | 2600 x2000mm
(8.5'x6.6') | 2400×2000mm
(7.9'x6.6') |
| 3D Rotary Working Size | 900mm(length) x 170mm(rotary diameter) | 1200mm(length) x 350mm(rotary diameter) | 1200mm(length) x 250mm(rotary diameter) | 1300mm(length) x 200mm(rotary diameter) |
| Spindle Power | 1500W×4PCS | 2200W×6PCS | 2200W×6PCS | 2200W×8PCS |
| No. Of Rotary | 4 PCS | 6 PCS | 8 PCS | 8 PCS |
| Motor Driver | Stepper Motors | 7pcs Panasonic Servo Motors
(2 pcs support rotary, 1pcs for X, 1pcs for 2Z, 2pcs for Y axis) |
| Rotary Transmission | Belt Transmission | Gear box (reduction rate: 1:25) |
| XYZ Transmission | TBI Ball Screw for XYZ axis | TBI Ball Screw 40mm for Z axis, High precision Gear Rack for XY axis |
| Max Engraving Speed | 12000mm/m | 15000mm/minute |
| Air Cylinder Support | Yes (300MM long air cylinder) |
| Oil Lubrication system | Yes |
| Tool Diameter | 4,6, 8, 12mm |
| Body Structure | Cast Square Tube |
| Guiding Rails | XYZ Imported Linear Square Rails |
| Reposition Accuracy | <0.03/300mm |
| Spindle Speed | 6000~24000rpm |
| Controller | 4 axis NC Studio Controller( PC control ) |
| Format of instructions | G code or HPGL |
| Voltage | 380V/60Hz or 220V/50HZ |
| Net Weight | about 500KG | about 2000KG | about 1800KG | about 1600KG |
| Packing size(L*W*H) | 1485x 1300x1750mm( 3.38CBM) | 4200x2200x2200mm(20CBM) | 2700×2200×2200mm(13.1CBM) | 2700×2200×2200mm(13.1CBM) |
