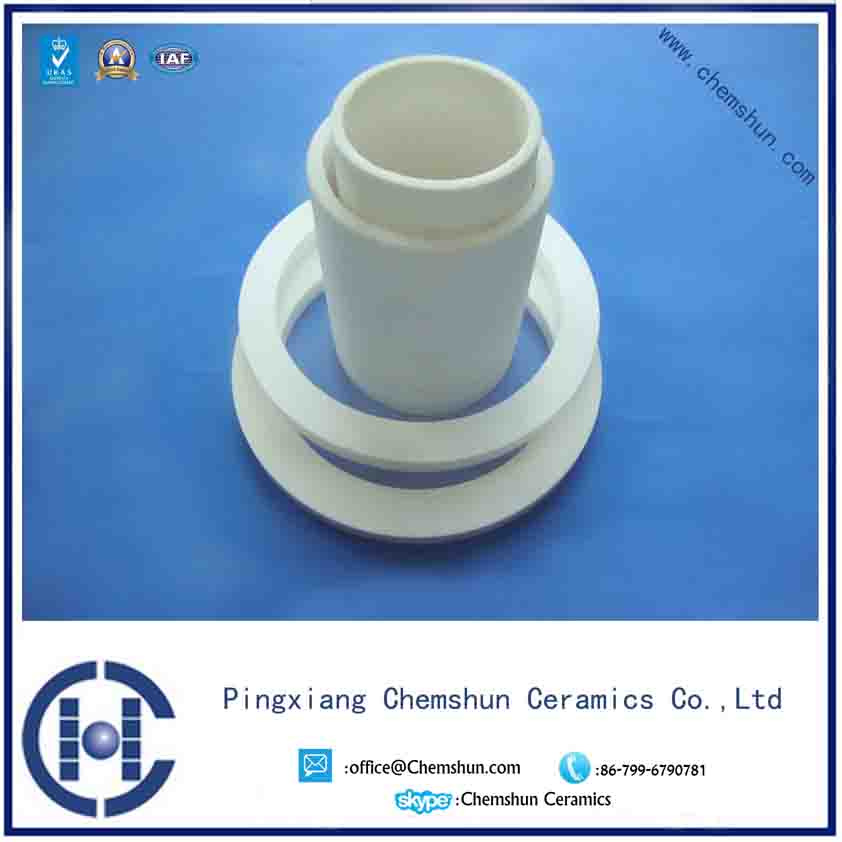

Alumina Ceramic Tube, Ceramic Pipe
We pingxiang chemshun ceramics Co., Ltd are a professional manufacturer and exporter of
wear resistance ceramic product. Our product including the alumina tiles(alumina plain tile,
alumina weldable tile, alumina trapezoidal tile, alumina curved tile), alumina mosaic piece
(alumina mosaic square tiles, alumina mosaic hexgonal tile, alumina rectangle mosaic tile,
alumina dimple tiles), alumina cylinders(alumina column) and alumina pipes(alumina tubes,
alumina sleeve, alumina rods, alumina sleeve bush, ceramic lined pipe, T type tube, straight tube,
Y shaped tubes). The mentioned product output is over than 25000ton/year.
We have advanced facility and strictly quality contral system.
The product sells popular in the world market.
We can produce and custom the different shape alumina ceramic tubes
Alumina T-shape tube
Alumina Y-shape tube
Alumina three way tube
Alumina straight tube
Alumina cone tube
Ceramic Lined Elbows/Bend
We have different sizes and mould for alumina ceramic tubes
1.ID45mm
2.ID112mm
3.ID59mm
4.ID126mm
5.ID134mm
6.ID75mm
7.ID95mm
8.ID150mm
Chemshun Ceramics advantage:
We can afford the standard and pre-engineered tiles;
We can afford the fabricated and lined equipment (finished product) according to customer requirement.
We have professional technical team to afford the CAD design drawings and develop new products for the pre-engineered tiles.
We have professional installation team to afford install service.
We have good process as per international standards.
We can offer 95% alumina ceramic wear-resistant products and grinding balls can be used in dry grinding environment.
We can decrease stream-to-stream time for users and reduce the cost of devices maintenance.
We can give you the lower price than inernational counterparts, and the delivery time is shorter than theirs.
We can be responsible for each cargo, and we are strict with quality control.
We can offer free samples to let our customer experience it first.
We can give you discounts when your quantity is bigger.
We can visit our customers regularly and talk with them in time if there is any problem.
We can contact our customers when we have new development.
Chemshun Ceramics wear-resistant product feature:
- Excellent wear and abrasion protection property.
- Excellent corrosion resistance property
- Excellent heat resistance property
- Excellent impact resistance property
- Excellent for ballistic protection
- high hardness
- light weight
- adhesive firmly
- high temperature resistance
- low cost
Chemshun Ceramics wear-resistant product application industries:
- Mining
- Mineral processing (mineral beneficiation)
- Power generation
- Cement
- Petro-Chemical Refining and Production
- Coal washery
- Steel
- Defense (personal & vehicle armour).
Common items equipment need wear linings are:
Agitators; Bends; Branches; Chutes; Classifiers; Cones; Cyclones; Distribution Box; Ejectors; Fans; Feeders; Hopper; Launders; Manifolds; Mills; Orifice; Pipes; Pipe Bends; Pipe fitting; Pulley lagging; Silos; Splitter Boxes; Spoons; Square Bends; Square to Round; Tanks; Troughs; Transfer points; T-Pieces; Y-Pieces etc.
We can supply you all kind of standard and customized ceramic products. Once you have any inquiry or need any product from us please feel free contact us.
Welcome you to visit our factory!
| Performance Index | 92 series | 95series |
| Al2O3 (%) | ≥ 92 | ≥ 95 |
| Moh' s Hardness | 9 | 9 |
| Water Absorption Rate(%) | < 0.01 | < 0.01 |
| Flexural strength, 20C, Mpa | 275 | 290 |
Bending
strengh(Mpa) | 255 | 275 |
| Bulk density(g/cm 3 ) | ≥ 3.60 | ≥ 3.65
|
