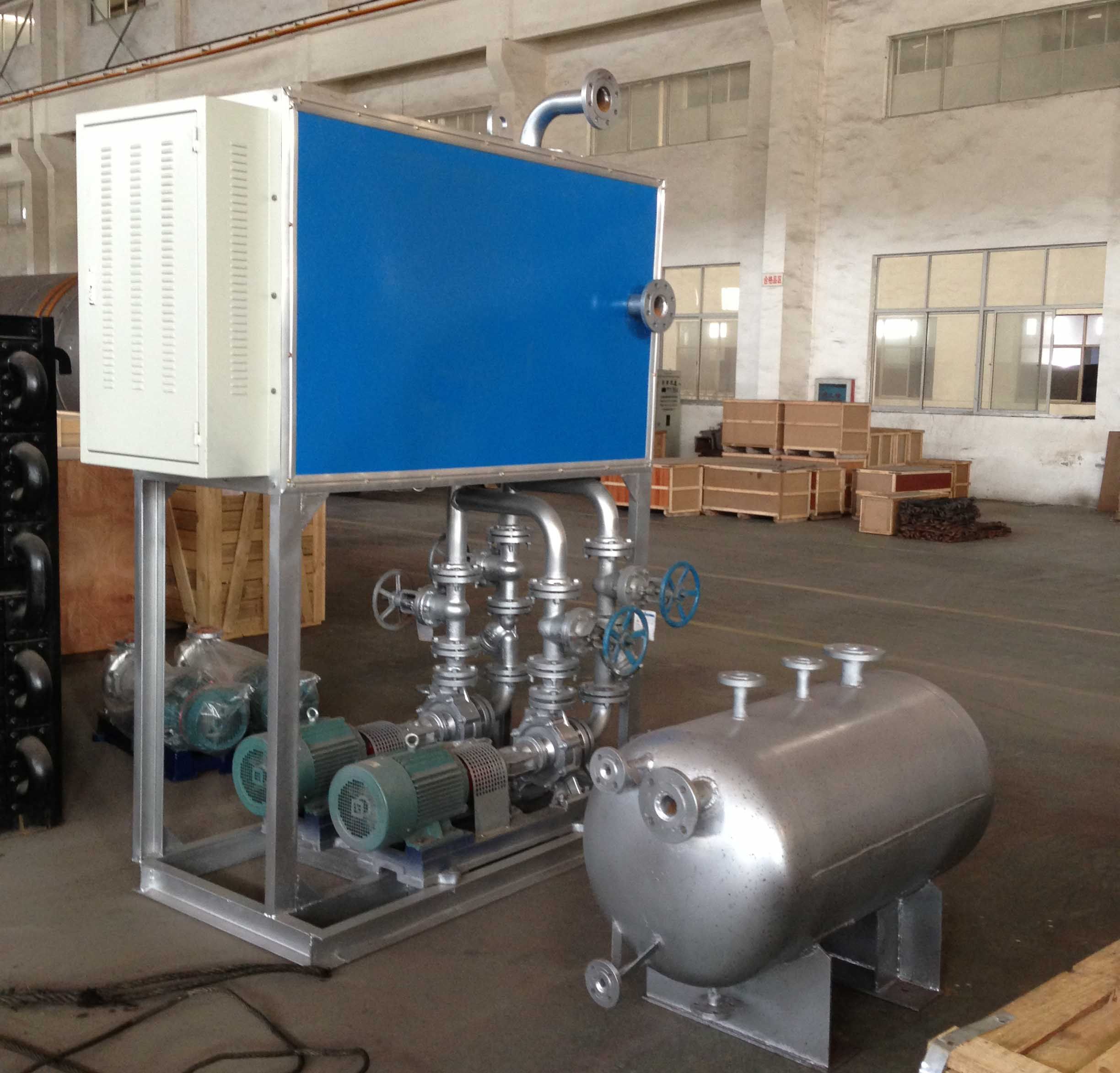

Electric Thermal Oil Heater operates in a closed loop circulation system with minimal pressure. The primary circulating pump provides the flow in the system to take the heat from the electric heater and transfer it to the users. Electric Thermal Oil Heater can reach 320° C(600° F), HOS are custom designed for many process applications such as Roller, Presses, Mold, Jacketed Vessel, Exchanger, Mixers, etc. HOS series thermal fluid system is the most compact temperature control system. The whole system includes an electric heater, centrifugal pump, expansion tank, control center, strainer, stop valves, platinum resistance thermometer sensor, pressure gauge with electric contact, alumina silicate fibre insulation and connecting piping mounted on a welded steel base.
SPECIFICATIONS:
* Electrically operated
* Low-pressure (<0.5MPa) and high-temperature
* High thermal efficiency
* High temperature precision (± 1° C)
* Horizontal centrifugal pump
CONTROL PANEL:
* Oil Low Level Alarm (Expansion Tank)
* Over Temperature Alarm
* PWR
* Meter ON/OFF
* Main Heat Indicator
* Main Heat ON/OFF
* Auxiliary Heat Indicator
* Auxiliary Heat ON/OFF
* Pump On Indicator
* Pump Fault Indicator
* Pump Start
* Pump Stop
SAFETY PROTECTION:
* Pressure Detection: Pressure gauge with electric contact which show real pressure of entire system was equipped on the piping. Control system will alarm immediately when pressure fall into a certain value, and the Heater will stop at the same time.
* Oil Low Level Detection: Expansion tank is equipment with a ball float level controller, Control system will alarm immediately when level fall into a certain value, and the Heater will stop at the same time.
* Other Protection: Over Temperature Alarm, Automatic Interlock Protection.
Changzhou Olymspan Thermal Energy Equipment Co., Ltd was established in 1998. It locates in Wujin District Changzhou City and it' S an ecological environmentallu-friendly society company. We are a leading manufacturer specialized in boilers, pressure vessels and environmental protection equipment, and also the first one and the only one company join WRO( World Renderers Organization). Our company has achieved Class A2 Pressure Vessel Production License, Class B Boiler Production License and Class A Boiler Component manufacturing qualification from State Quality Inspection Administration.
Oil-fuel/Gas-fuel horizontal organic heat-carrier boiler
YY(Q)W horizontal oil(gas)-fuel boiler is a kind of forced circulation oil(gas)-fuel organic heat-carrier boiler. The heating surface of this series of boiler is compact. The heating surface consists of inner, (middle) outside disc tubes. The inner ones will be radiantly heated while the middle and the outside ones will form the convection heating surface. The fuel will be burnt in the combustor formed by the disc tubes. And the most heat will be absorbed by the radiant heating surface, then the air of high temperature will enter the convection heating surface to exchange heat. At last, the air and smoke of low temperature will be
Discharged directly to the atmosphere through the chimney.
Features:
1. The heat efficiency is high and the structure is special. The general heat efficiency can reach up to 90%.
2. The horizontal design is easy and convenient to operate.
3. With the disc tubes, the heating surface can be heated fully and the heat load of the tube can be lowered.
This makes the conductive oil safer.
4. The size of the hearth matches the flame. The heat exchange rate is rather high.
5. The control system is accurate and the temperature of the conductive oil can be controlled within ± 1º C.
6. We have the interlock and other feedbacks if there's any emergency.
