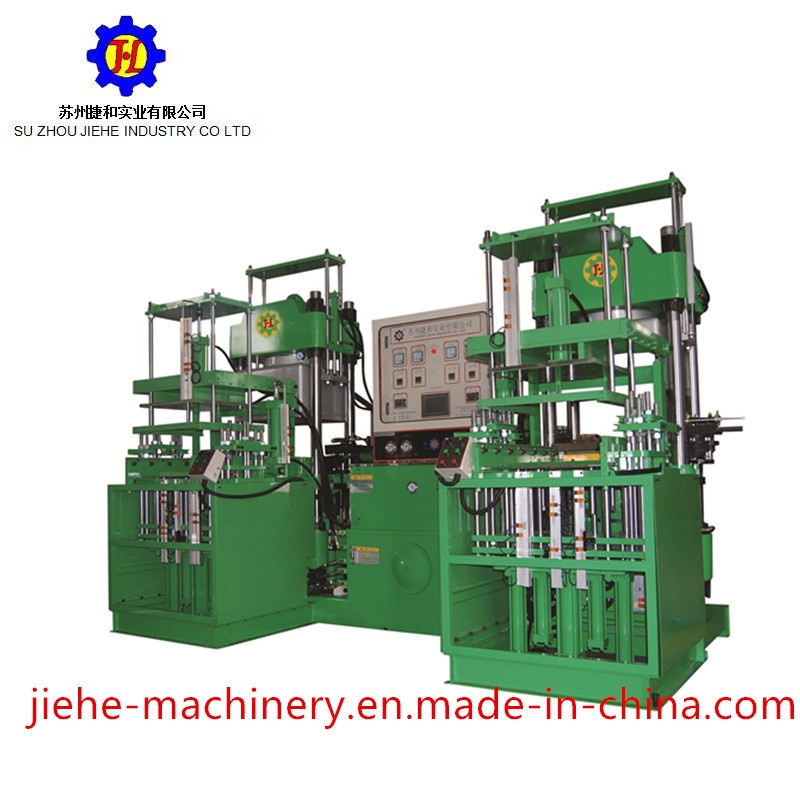

Automatic multi-purpose skeleton oil seal machine:specialized in oil seal
Our machine applys to produce all kinds of rubber or silicone material product such as phone case, silicone band,wrist band,silicone home supplies,sealing rings through compression molding or injection molding.
characteristics:
1.suitable for two-layer or three-layer mold
2.every operations running through the touching screen, safe and simple
3.a self-adjusting oil-way system to ensure the stable performance and reduce noise
4.adopt double powers, double oil pumps, double motors and double coolers to promote production efficiency
5.lift-up opening mold
6.A guard rail has been used to ensure the security of your operators while operating
7.adjustable speed of mold opening
Technical parameters
| type | 100t | 200t | 250t | 300t | 350t | 500t |
| stroke(mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| heating plate size(mm) | up:400*380
down:400*400 | up:503*508
down:560*560 | up:600*600
down:600*650 | up:600*600
down:600*650 | up:700*700
down:700*750 | up:1000*1000
down:1200*1000 |
| diameter of cylinder(mm) | 250 | 355 | 400 | 400 | 450 | 560 |
| horse power(hp) | 5.5*2 | 10*2 | 10*2 | 10*2 | 15*2 | 15*2 |
| double shaft thermal electricity(kw) | 15.6 | 27 | 34 | 34 | 38 | 86 |
| vacuum pump(kw) | 2 | 3 | 3 | 3 | 3 | 4 |
| total power(kw) | 23 | 45 | 52 | 52 | 65 | 112 |
| weight(kg) | 6500 | 9000 | 11500 | 11500 | 13500 | 45000 |
| dimension:L*W*H (mm) | 1750*200*2100 | 3000*2400*2350 | 3400*2600*2400 | 3400*2600*2400 | 3500*2800*2600 | 4790*3860*2880 |
Suzhou Jiehe Industry Co., Ltd is located at Xiangcheng District, Suzhou, Jiangsu, China and covers an area of 12000 square meters. Our company was founded by a group of professional engineer who is well experienced in rubber manufacturing machinery. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
Anything else? please contact us
Suzhou Jiehe Industry Co., Ltd is located at Xiangcheng District, Suzhou, Jiangsu, China and covers an area of 12000 square meters. Our company was founded by a group of professional engineer who is well experienced in rubber manufacturing machinery. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
A good start comes from the high quality. Suzhou Jiehe attaches great importance to the details of the whole process of production and it aims to offering the highest quality to our customers. Our company specializes in producing rubber injection molding machine, vacuum hydraulic machine, plate rubber vulcanization machine, performing machine, framework oil seal machine, silicon cutting machine and so on.
Our after-sale service network is always at your side and it also has service hotline to tackle with your complaint and feedback timely. We also supports technical service in terms of the problem results from the machine. We insist that our products are the best choice to the manufacturers who operate rubber electronic parts, auto parts, conductive rubber, seal type, sports equipment, medical equipment and various containers.
We will constantly follow the policy of taking advanced innovation to promote development, brand strategy and fist class service. And we will try our best to satisfy our customers.
Our products:
Suitable For:
O-rings, Gasket, Packings, Keypad, Roller, Pharmaceutical stopper, Piston of syringe, Automotive parts, Anti-vibration products, Silicone product and many other rubber articles.
Suitable manufacturer:
Electronic industry, electric buttons, automobile-purpose rubber, rubber for common industries and household purposes, bottle blocks, medical rubber, trademark rubber, diamond blades tool, military&defense industry toy industry.
