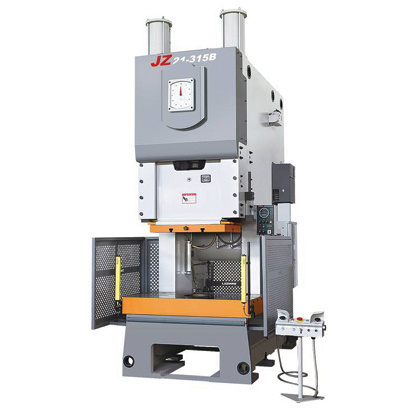

High Performance Press with Wet Clutch and Hydraulic Overload Protector

Name: High Performance Press with Wet Clutch and Hydraulic Overload Protector
Brand: themouldinfo.com
SKU: 711233565
Availability: InStock
Rating: 4.5 (35 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Xuzhou L & B Foreign Trade Corporation Ltd.

Showroom Product Company Profile

Welded body with steel plate and high intensity.
Combined wet multi discs friction clutch and brake.
Cluster gear adopts the flooding oil lubrication.
Six-face rectangle lengthen guide.
Equipped with hydraulic overload protecting device.
JZ21-45 adopts manual shut height adjustment with scale display.
JZ21-45 can equip with die set height adjustment motor, the value will be displayed by digital.
JZ21-63 and above type adopts electric shut height adjustment with digital display.
Equipped with lifting balance cylinder.
Duplex valves imported.
Electric compelling grease lubrication system.
Balancing cylinder adopts manual lubrication system.
One set of blowing device.
Electronic cam control.
Controlled by PLC with international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
Equipped with optional air cushion device, photoelectric protector, which can used to work with various automatic equipments.

			JZ21-45	JZ21-63	JZ21--80	JZ21-110	JZ21-125	JZ21-160	JZ21-200
Capacity		kN	450	630	800	1100	1250	1600	2000
Nominal Stroke		mm	4	4	5	6	6	6	6
Slide Stroke		mm	100	120	140	160	160	160	180
SPM	Fixed	min -1	80	70	60	50	50	40	35
SPM	Variable	min -1	70-90	60-80	50-70	40-60	40-60	35-50	30-40
Max. Die Height		mm	270	300	320	350	350	350	390
Die Height Adjustment		mm	60	80	80	80	80	110	110
Between Slide Center & Frame		mm	230	300	300	350	350	380	390
Bolster (FB×LR)		mm	440×810	580×900	580×1000	680×1150	680×1150	740×1300	760×1400
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)		mm	φ180×30 ×φ160	φ200×40 ×φ180	φ200×40 ×φ180	φ260×50 ×φ220	φ260×50 ×φ220	φ300×50 ×φ260	φ300×50 ×φ260
Bolster Thickness		mm	110	110	120	140	140	150	160
Bolster Opening (Dia./FB×LR)		mm	300×300	390×460	390×520	420×540	420×540	480×600	φ470
Slide Area (FB×LR)		mm	340×410	400×480	420×560	500×650	540×680	580×770	600×800
Shank Hole (Dia.×Dpth)		mm	φ40×60	φ50×80	φ50×80	φ60×80	φ60×80	φ65×85	φ65×90
Between Columns		mm	550	560	640	760	760	850	870
Main Motor Power		kW	5.5	7.5	7.5	11	11	15	18.5
Outline Size (FB×LR×H)		mm	1390×1200×2400	1580×1210×2520	1640×1280×2780	2130×1450×3150	2130×1490×3150	2530×1630×3280	2500×1580×3320
Net Weight		kg	3450	5400	7000	9840	10400	14920	17000

			JZ21-200B	JZ21-250	JZ21-250B	JZ21-315	JZ21-400
Capacity		kN	2000	2500	2500	3150	4000
Nominal Stroke		mm	6	8	8	8	10
Slide Stroke		mm	200	200	250	200	200
SPM	Fixed	min -1	35	30	30	30	25
SPM	Variable	min -1	30-40	25-35	25-35	25-35	20-30
Max. Die Height		mm	450	430	500	430	430
Die Height Adjustment		mm	110	120	120	120	120
Between Slide Center & Frame		mm	390	420	420	420	420
Bolster (FB×LR)		mm	760×1400	800×1400	800×1400	800×1400	800×1400
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)		mm	φ300×50 ×φ260	φ320×50 ×φ280	φ320×50 ×φ280	φ320×50 ×φ280	φ320×50 ×φ280
Bolster Thickness		mm	160	170	170	170	180
Bolster Opening (Dia./FB×LR)		mm	φ470	370×570	370×570	440×580	440×580
Slide Area (FB×LR)		mm	600×800	650×850	650×850	650×850	690×900
Shank Hole (Dia.×Dpth)		mm	φ65×90	φ70×90	φ70×90	φ70×90	φ70×90
Between Columns		mm	870	960	960	920	960
Main Motor Power		kW	18.5	22	22	30	37
Outline Size (FB×LR×H)		mm	2500×1580×3420	2730×1640×3550	2730×1640×4060	2770×1650×3550	2830×1680×3890
Net Weight		kg	17350	23500	24500	25000	29500

Prod Model:	JZ21series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method:	Mold Forging

Xuzhou L&B Foreign Trade Co., Ltd is the export company of Xuzhou L&B Machine Tool Co., Ltd, a professional manufacturer and exporter specialized in various kinds of metal working machinery and relative equipments since 2000, our products include: Mechanical Press, Hydraulic Press, Shearing Machine, Bending Machine, Slitting Line, Cut to Length Line, Metal Moulds etc.

In the past 13 years, L&B machines have been exported to dozens of countries and regions all over the world, we have built long-term business relations with some well-known enterprises and accumulate good reputation in the international market, the annual gross sales has already more than twenty million US dollars every year. Some of our machines have CE or ISO9001 certificate, which can meet the safety standard for some countries.

We are ready to cooperate with customers according to our good experience and welcome to visit our company at any time, it is our great pleasure to supply good machinery with best price and sincere service.
