Machine name

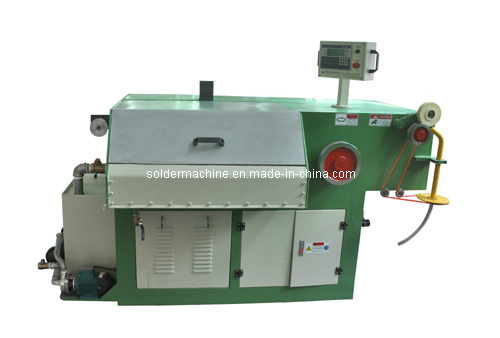

High precise silver wire drawing machine
Application:
Apply to make tin base tiny wire drawing.
Features:
1) inlet and outlet Diameter: 3.8 - 1.6mm
2) Good quality with single transducer speed control
Place of Origin: China
Model No.: VT-22D
Machine frame:
Adopt digital boring machine for hole boring to ensure the concentric of the axis and the machine frame.
Dies seat: Adopt West Germany technology (Inlay type), assure the drawing center distance to avoid the wire breakage.
Drawing axes: Made of S45C medium carbonizes steel with high frequency modified treatment, which can be more wear well.
Roller: Adopt S45C forging steel with high density to be more wear well.
About our company
Victory Technology Internation Ltd is a foreign Enterprise, which is specialiszed in equipment manufacture &develop for solder powde, solder paste, solder wire, solder bar /stick, silver wire and metal spraying materials, pure zinc, zinc alloy wire ect.
We have been making experience and technologies for electronic solder equipmengt, along with mature solder product producng technologies and formula with more than 20 years history, In 2004, our vivtory has been covering of 33, 000 square meter standard modernized factory building, being the largest electronic solder machine production base.
Our workshop
Spare parts of this machine
|
parameter |
VT-22D |
|
Inlet wire diameter |
3.8MM |
|
outlet wire diameter |
1.6MM |
|
main motor power |
22KW |
|
voltage |
380v |
|
cooling method |
steeped |
|
speed control |
pre-fixed |
|
wire speed |
0~50m/min |
|
die No |
22 |
|
machine elongation rate |
8% |
|
machine dimension |
2200*1070*1200mm |
|
machine weight |
1.5T |
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
