Dengfeng Mold (Hongkong) Co., Limited specializes in making plastic mold and injection mold. The scope of our business covers the plastic ware of Communication, Household Appliance, automobile, and electronics. Web: http://www.df-mold.com
Our products include a variety of vacuum cleaners, and plastic components. These products are widely available to world-class large companies. We have won a high reputation among clients. Our company provides processing or researching and development and manufacturing services. We are very interested in the development of new products to meet market demands.

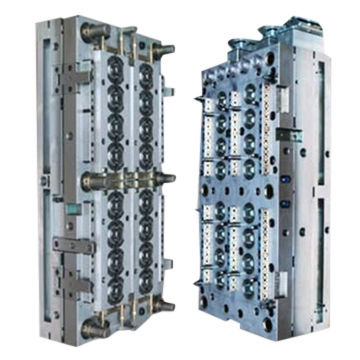

Complete plastic injection mold and plastic injection products:
Can be made according to customer's requirements.
Good Skilled in making plastic materials such as ABS, PP, POM, NYLON, HDPE, PVC, HIPS, TPU and TPR etc.
Lead time: 15-70 workdays according to different products.
Process various styles according to customers'' demands.
Making plastic components for home appliance, office equipment, furniture parts and electrical products
Customized designs and specification are welcome
Assemble working services and surface treatment
Supply with competitive price, high quality and strict delivery time.
Super Gear mould details:
1. Critical to fit and/or function;
2. Color to be natural, shade is unimportant;
3. Draft to be included in dimensional tolerance;
4. Parts to be supplied from vendor in trays, one part per cell to prevent damage to teeth. Parts must never be placed into bins or bags: They must be kept in trays. One part per cell, until individually removed for assembly.
5. Tolerance indicated applies within dimensions indicated: Remainder may be +0.2/-0.03
6. Shspe of roots of teeth to be as produced by specified basic rack.
7. Gear to be inspected in area indicated:
| No. | BASIC SPUR GEAR DATA | (NOM) OR MAX | ( ±TOL) OR MIN |
| 1. | NUMBER OF TEETH | 20 |
|
| 2. | NORMAL MODULE | 0.8 |
|
| 3. | NORMAL PRESSURE | 20° |
|
| 4. | STANDARD PICH DIAMETER(THEORETICAL) | 16 |
|
| 5. | AGMA QUALITY | C8.5 |
|
| 6. | ^ TEST LOAD (KG) | 0.4 | 0.08 |
| 7. | NORMAL CCIRCULAR TOOTH THICKNESS ON STD.PITCH CIRCLE | 1.3149 | 0.0210 |
| 8. | FLANK ANGLE | 20° |
|
| 9. | TIP-TOP-REFERENCE LINE | 1.184 |
|
| 10. | TOOTH THICKNESS AT REF LINE | 1.2566 |
|
| 11. | TIP RADIUS | 0.2818 | (FULLRADIUS) |
| 12. | INSPECTION DATA |
|
|
| 13. | OUTSIDE DIAMETER | 18 | 0.1 |
| 14. | ROOT DIAMETER | 13.7920 |
|
| 16. | MAX NORMAL TIP RADIUS | 0.12 MAX |
|
| 17. | ..TEST RADIUS(TIGHT MESH WITH STANDARD MASTER GEAR) | 8.0792 | 0.0674 |
| 18. | ..TOTAL COMPOSITE TOLERANCE | 0.078 |
|
| 19. | ..TOOTH TO TOOTH COMPOSITE TOLERANCE | 0.078 |
|
| 20. | LOCATIOIN CENTER DISTANCE |
|
|
| 21. | WATING GEAR P/N | 10J1814 |
|
| 22. | OPERATING CENTER DISTANCE |
|
|
DF Mold (HK) Co., Ltd is a famous Chinese mold manufacturer in southeast of China. She grows from 2007 year a small workshop until today. DF-mold has great achievements in mold design and manufacturing: From the starting 5 officers until now more than 100 employees. From 0.5M USD turnover to now more than 20M USD, from 50 SQM workshop to now bigger than 2500SQM building area, from low quality plastic mold to super quality mold… During this years, DF-MOLD has manufactured more than 8000 sets of plastic molds.
From 2007 year, DF-MOLD has established partner relationship with so many companies such as Huawei, RIFENG, Honda, Lexmark etc...During the cooperation with our partners, DF-MOLD has established her quality standard for design and manufacturing. The standard has caused great improvements for quality from that time. DF-MOLD well knows what the European & America requirements for mold, and her teams have gained a very top quality conception and mentality. We upholds the principle of "Using science and technology as the driving force, building of core competitiveness and leader for the industry pioneers". Then we will continue to strive together with our business partner on the basis of mold equality, mutual benefit, and sincere cooperation. As we known "Only by being an honest person and diligent in working, can he build a brand with value" The people of DF-MOLD is basis in southwest of China with a global view to expand its business horizon in industry field. We look forward to be your long term strategic partner.
