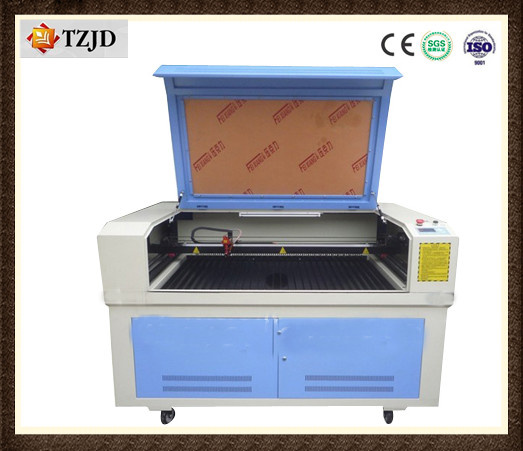

High precision Laser Cutting & Engraving machine
1. Laser Engraving Machine adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type, and the life time of the laser tube can be over 10000 hours.
2. The mechanical structure is strong and stable, making the machine to run at high precision.
3. The electrical ability is stable, the engraving speed is high, and the precision is high.
4. Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot
5. LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.
6. USB Interface, with mass storage device; Improve working-speed & working efficiency7. Taiwan HIWIN linear guide rail.
Applicable industry:
Label processing, Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, mould industry, packing industry, etc.
Applicable Materials:
Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, artificial leather, glass, marble, crystal, etc.
| Model | TZJD-9060 |
| Working area | 900mm*600mm |
| Laser power | 60w/80w |
| Laser type | CO2 Sealed laser tube , 10.6μm, water-cooled |
| Cooling type | Water-cooling/Water chiller |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-50000mm/min |
| Total power | 2KW/H |
| Drive motors | Stepper/Servo(option) |
| Laser output control | 0-100% set by software |
| Min. engraving size | Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm |
| Highest scanning precision | 4000DPI |
| Locating accuracy | ≤+0.01mm |
| Controlling software | DSP control system |
| Operating software | LaserCut |
| Graphic format supported | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color separation | Yes |
| Drive system | High-precision 3-phase stepper motor |
| Auxiliary equipments | Exhaust fan and air exhaust pipe, red-dot position system, focus lens & reflection mirrors, auto-focus device, up & down device. |
| Power supply | Ac110v/AC220V±10%, 50HZ/60HZ |
| Working environment | Temperature:0-45, Humidity 5-95%(No condensate water) |
| Packing size | 1.65m*1.26m*1.46m |
| Net weight | 400KG |

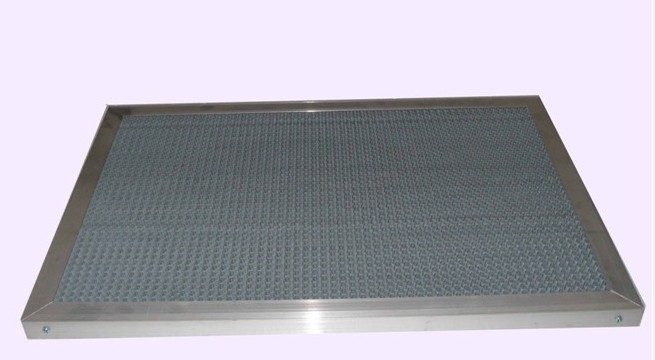

| Machine available | rotary device, honeycomb worktable, etc. |
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.
Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.
Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
