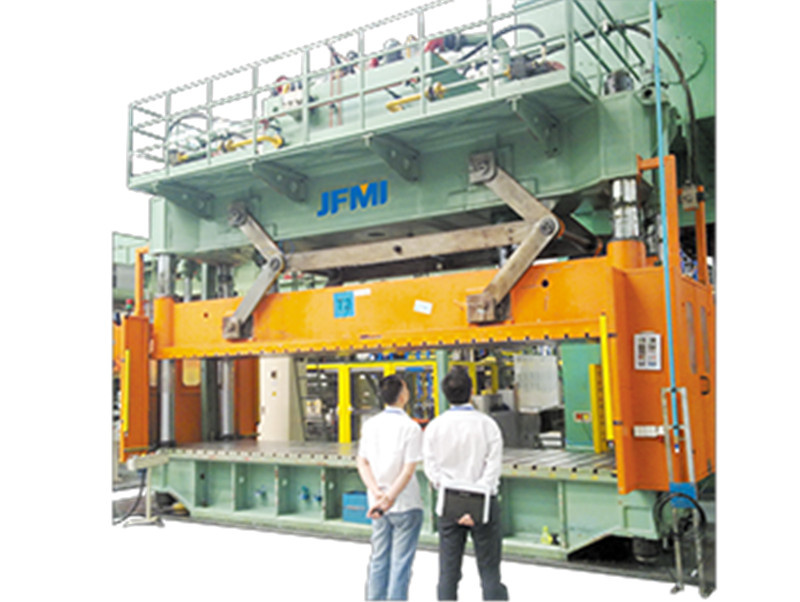

High Precision of Multistation Hydraulic Machine with ISO9001

High Precision of Multistation Hydraulic Machine with ISO9001
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
 Multistation hydraulic machine.Multistation hydraulic machine
ItemUnitYJ32T-200
Type
Four column
Nominal forcekN2000
Return forcekN460
Pressure of hydraulic  systemMpa25(actually Max. pressure 20.4)
Daylightmm1600
Stroke of slidemm900
Speed of slideIdlemm/s≥450
Pressingmm/s40-80
Returningmm/s400
Size of table in availableL-Rmm6000
F-Bmm1400
slide bottom in availableL-Rmm6000
F-Bmm1400
Height between table and floormm~800
Main  powerkW~120


Item
UnitYJ32T-400YJ32T-400
Type
Four columnFour column
Nominal forcekN40004000
Return forcekN460460
Pressure of hydraulic  systemMpa25(actually Max. pressure 20.4)25(actually Max. pressure 20.4)
Daylightmm16001600
Stroke of slidemm900900
Speed of slideIdlemm/s600-800≥450
Pressingmm/s40-8040-80
Returningmm/s400400
Size of table in availableL-Rmm30006000
F-Bmm12001400
slide bottom in availableL-Rmm30006000
F-Bmm12001400
Height between table and floormm~825~900
Main  powerkW~190~190


Prod Model: YJ27 D/E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use: Sheet Metal Drawing,Bending,Blanking,Extrusion
Forging Forming Method: Mold Forging
Yangzhou JFMMRI Metalforming Machinery Co., Ltd. is located in the beautiful Hanjiang Economic Development Zone of Yangzhou. We are a new modern enterprise invested by Jinan Foundry and Metal Forming Machinery Research Institute and Yangzhou Metalforming Machine Group Co., Ltd.

Our company produces a variety of straight-side mechanical presses of less than 1250 tons with one, two or four points for current or special use, and all kinds of hydraulic machines of below 3000 tons for current or special use, and related automated production lines. The technologies of our products have reached advanced level. All our products are applied extensively in many fields, such as automobile, agricultural vehicle, light industry, home appliance, building material, military industry, and shipping. We can satisfy users completely in different level.

Using the peculiar advantages in design, development, debugging and machining in forging and stamping industry, we innovate continuously on the existing foundation of sale and service network, to offer optimum manufacture in the lowest price to the market and finally realize the benefits for both sides of supply and demand. Our company has always paid great attention to technical innovation since our company was set up in 2002, and we have R&D center and have developed more than 120 items of new products successfully. Our products have maintained continuous increase in sale, output, profit tax and market share, and especially are appreciated by foreign investment companies and domestic capital enterprises.

Our staff will adhere to the pursuit of "exceeding ourselves", and persist in implementing the management concept of "developing new products to survive, expanding the market for success, reinforcing the foundation for the development, and innovating the management for the efficiency", to build the brand of "Yangzhou JFMMRI". We are willing to work together with all colleagues and friends to improve your machinery equipment level. Taking the industrial revitalization of nation as our responsibility, we strive to improve the overall quality of the enterprise, and provide high quality products and services for our new and old customers.
