Specifications

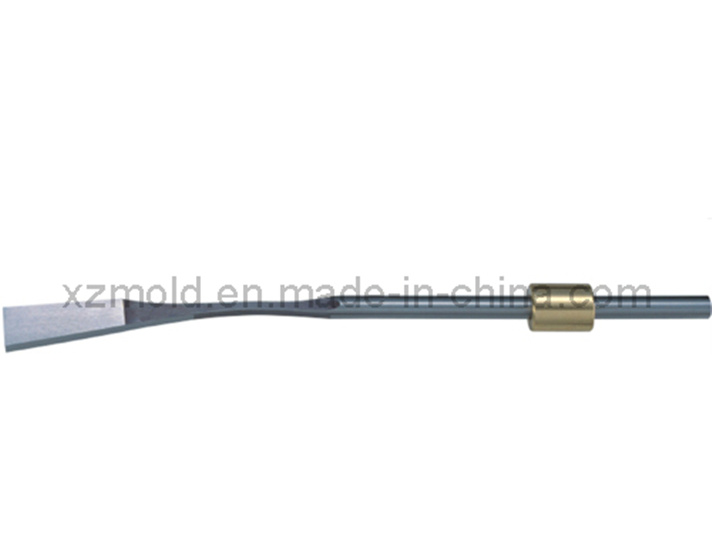

FLEXIBLE SPRUNG CORES
| 1. Four separat movements in one componet. |
| 2. Injection molding 1 million models. |
| 3. Easy to install. |
| 4, It's made from spring steel, release elasticity at bottom as standard ejector pins, and fulfill it's function by ejector plate. |
| 5.Titanium coating. |
| 6.Mininum space required. |
| 7.No need for complex mechanical systems. |
Using example:
| 1, The length of component which use to sustain sling ejector pin must be tthe same as the size of "H". |
| 2, The lenght of adjust part must at least 1/3 of the size of "C'. |
| 3, the size of protrude part in sling ejector pins must equal or small than the size of "C". |
| 4, the thickness of locating plate of the sling ejector pin must more than 15mm at any time. |
Our Flexible Sprung Cores are compatible with:
| CUMSA Std.: PP06, PP08, PP10, PF06, PF08, PF10, PF12, PW06, PW08, PW10, MP04, MP05, MP06, MP07, ED06, ED08, ED10, ED12, MD04, MD05, MD07, EE. 06, EE. 08, EE. 10, EE. 12 |
|
| PF. 044150 PF. 054150 PF. 064200 PF. 0642WB PF. 084200 PF. 0842WB PF. 104200 PF. 1042WB PF. 124200 PF. 1242WB |
| PP. 060622 PP. 060822PP. 080825 PP. 081025 PP. 081225 PP. 101430 PP. 101630 PP. 101830 |
| PW. 060622 PW. 060630 PW. 060822 PW. 060830 PW. 080825 PW. 081025 PW. 081030 PW. 081225 PW. 081230 PW. 101430 PW. 101630 PW. 10183 |
|
| MP. 044150, MP. 054150, MP. 064150, MP. 074150 |
| ED. 068200, ED. 088200, ED. 108200, ED. 128200 |
| MD. 047150, MD. 057150, ED. 067150 |
| EE. 060175, EE. 082175, EE. 103175, EE. 124175 |
|
| PROGRESSIVE Std.: FCDA FCA FCR |
| FCA: FCA35× 24L6; FCA35× 32L6; FCA45× 40L7; FCA45× 48L7; FCA9× 6L160; FCA9× 8L160; FCA11× 10L200; FCA11× 12L200; |
|
| FCR: FCR35× 24L6; FCR35× 32L6; FCR45× 40L7; FCR45× 48L7; FCR9× 6L160; FCR9× 8L160; FCR11× 10L200; FCR11× 12L200; |
|
| FCDA: FCDA35× 24L6; FCDA45× 48L7; FCDA9× 6L160; FCDA11× 12L200; FCDA12× 14L200; FCDA12× 16L200; |
1.Factory information:
| Company:Dong guan city Xiang zhen mold parts Co.,Ltd |
| Web: www.xzmold.com |
| Location:Dong guan,China (close to Hong Kong,Shen Zhen,Guang Zhou) |
| Software:PDF,Auto-CAD,Pro-E,UG etc are available |
| Employee:100-200 |
| Manufacture in:High precision mold parts/Hot-runner and related parts/CNC/EDM parts/Grinding parts/Customized mold parts |
2. Equipment and Inspection measurement:
| Description | Machine type name | Origin from and brand | Quantity | Precision level(mm) |
| Processing equipment | CNC Processing | Taiwan | 3 | ±0.01 |
| CNC Lathe | Japan | 2 | ±0.003 |
| WEDM (Low speed wire cutting) | Japan | 2 | ±0.005
±0.002 |
| WEDM (high-speed wire cutting) | China | 2 | ±0.005
±0.01 |
| Flood grinder | China | 1 | ±0.002 |
| EDM | Taiwan | 2 | ±0.005 |
| ID Grinder | Taiwan | 3 | ±0.001 |
| Depth drill | Taiwan | 3 | ±0.02 |
| Automatic grinder | Taiwan | 2 | ±0.001 |
| Centerless Grinder | Taiwan | 12 | ±0.001 |
| Surface Grinder | Japan | 2 | ±0.001 |
| Surface Grinder | Taiwan | 5 | ±0.001 |
| Vertical hydraulic Heading Machine | China | 2 |
|
| Semi-automatic Heading Machine | Taiwan | 3 |
|
| Manual Heading Machine | Taiwan | 2 |
|
| Automatic forging machine | Taiwan | 1 |
|
| Bench grinders | Taiwan | 2 |
|
| Punch Grinder | Taiwan | 6 | ±0.002 |
| Lathe | China | 4 | ±0.01 |
| 32 type Lathe | Taiwan | 4 |
|
| 25 type Lathe | Taiwan | 3 | ±0.01 |
| 15 type Lathe | Taiwan | 10 | ±0.01 |
| Milling Machine | Taiwan | 6 | ±0.01 |
| Liquid nitriding furnace | China | 1 |
|
| Tempering furnace | China | 2 |
|
| Oxidation furnace | China | 1 |
|
| Inspection equipment | Rockwell hardness | Shanghai | 1 | ±0.5° |
| Height gage | Japan | 2 | 0.001mm |
| Microscope | Shanghai | 2 | 0.0001mm |
| Three-dimensional | Germany(Zeiss) | 1 | ±0.002 |
| 2.5 dimension | Taiwan | 1 | ±0.001 |
| Digital Projector | Taiwan | 1 | ±0.002 |
| Vickers hardness tester | Taiwan | 1 |
|
| Concentricity device | Taiwan | 2 | ±0.001 |
| Digital Micrometer calipers | Taiwan | Multiple | Conventional |
| slide calliper rule | Taiwan | Multiple | Conventional |
| Height Gauge | Taiwan | 1 | Conventional |
| Roughometer | Japan | 1 | Conventional |
3.Precision parts information:
| Accuracy for EDM | Clearance angle | R0.03mm |
| Surface Roughness | Ra0.05mm |
| Accuracy for Grinding | Clearance angle | R0.02mm |
| Shape tolerence | ±0.001mm |
| Accuracy for surface | Ra0.05mm |
| Minimum thickness | 0.1mm |
| Minimum groove | Wide 0.01mm;Depth 0.25mm |
| Material | Japan:SKD61/SKD11/SKH51/SUJ2 |
|
| Germany:1.2343/1.2344 or as Customer's request. |
|
| Size | Standard as DME/Hasco/Punch etc or Customized |
|
| MOQ | 10Pcs/Type |
|
| Price | EXW/FOB/CNF/CIF |
|
| Payment | T/T or %advance-%against shippment |
|
4.Why choose us:
*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
Quick Delivery
Quick Response (7/7)
Warranty: Depend on product type.
Stardand parts:500K---2M cycles
5. How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first
6. Contact Info:
Sales Manager:Nancy
Tel: +86 769-83516188 ext 8831
Fax: +86 769-83510866/83510966
Dongguan City Xiangzhen Mold Parts Co., Ltd. is a professional manufacturer of standard components and plastic molds.
The ranges of our products include standard (HASCO, DME and JIS) and customized high-precision ejector pins, ejector sleeves, shoulder ejector pins, blade ejector pins, core pins, guide posts, bushings, punching parts, fixtures and other parts.
We not only produce these standard components, but also help solve problems in the production of plastic molds and die casting parts.
Our factory is equipped with Taiwanese CNC working centers, NC gun drilling machines, centerless grinders, cylindrical grinding machines, internal grinding and honing machines, high-speed precision desk-top lathes and surface grinding machines.
We follow the spirit of "teamwork" and establish close and cooperative partnership with our customers. The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We sincerely welcome you to visit our company or contact us for cooperation!
We have significantly essential support from local customers that are leading mould manufacturers and reputable foreign agents in mould industry.
