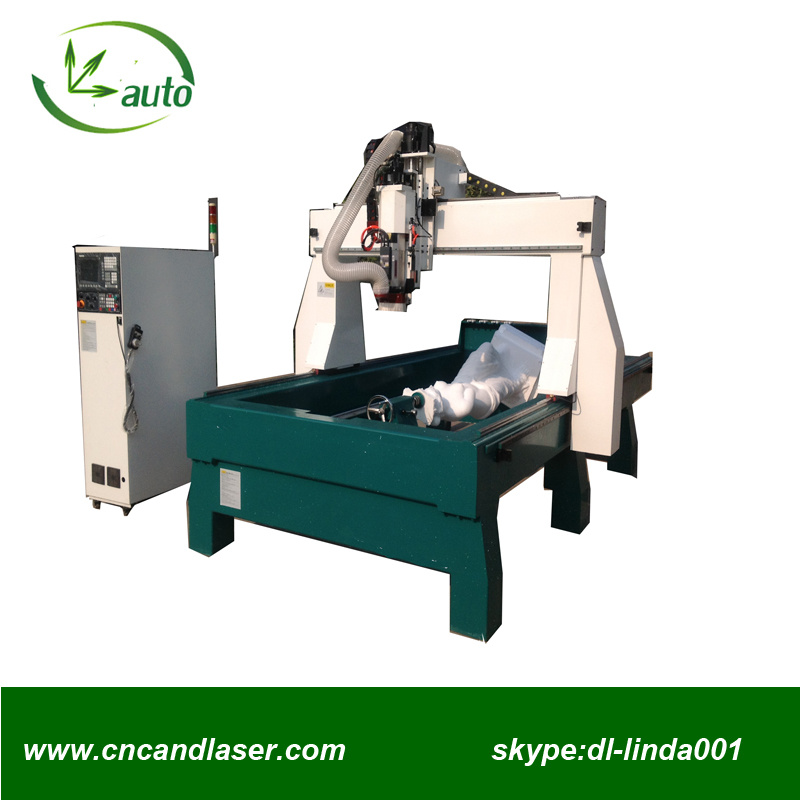

What is the details of our 4 axis sculpture carving machine ?
1.welded lather bed of profiled steel,stabilizing treated under high temperature
2.Adopt air cooling spindle and parge power motor ensure the quickly processing for hard materials
3.400-1000mm height Z axis and movement gantry to burden heavy and thickness foam/plastic products
4.Double high Z axis drive and Gantry movement with high precision rack gear transmission, and imported square linear
guide rail that ensure high accuracy, fast speed, heavy duty with long service life
5.Professional design and high quality machine parts provides this with low break down rate
6.Diamond cutting tools are very durable for cutting,perfectly meet your business requirements.
7.All dust-proof and water-prof design
8.Those items are very suitable for making deep foam,plastic,stone,wood mould works,surely also can widely used for flat
material such as flat stone,wood , aluminum,copper,PVC and other hard and soft material.
(Other size can be customized according to specific requirements).
Option Spindle: 3KW/5.5KW water cooling; 1.5KW/2.2KW/3KW/6KW Air cooling.
Option Parts : Rotary Axis, Multi-Spindles,ATC system(auto tool changer).
What is the Specifications of our 4 axis sculpture carving machine ?
X,Y,Z,working area | 1500*3000*500mm(Other size can be customized) |
Lathe bed structure | T-extrusion,Thick Steel frame |
Table surface | Aluminium T-slot with clamps |
X structure | Rack and pinion, HIWIN linear square rail |
Y structure | Rack and pinion, HIWIN linear square rail |
Z structure | Ball screw, HIWIN linear square rail |
Resolution | ±0.02mm |
Reposition accuracy | ±0.05mm |
Max. rapid | 0-60000mm/min |
Max. working speed | 0-30000mm/min |
Spindle power | 9kw italy HSD air cooling ATC spindle(option: 6kw air cooling) |
Tool magazine | Linear type auto tool changer system,8 tools |
Spindle speed | 0-24000rpm |
Working mode | Japan YASKAWA servo motor and driver |
Working voltage | 3 phase, AC380V /220V, 50HZ/60Hz |
Command code | G code(*uoo,*nc,*mmg, *plt) |
Operating system | 4 axis WEIHONG control system |
Collet | ER32 |
Software | PowerMill |
Running circumustance | Temperature: 0°C~45°C |
