Technical Description
| Mould Closing System |
|
| Work Stations | 8 |
| Clamping Force (kg) | 150000 |
| Mould-Opening Stroke (mm) | 350-400 |
| Standard Thickness of Mould (mm) | 100-210 |
| Mould Plate Size (mm) | 2(290*550) |
| Height of Injection Nozzle (mm) | 60 |
| Method of Heating | electric |
| Heating Power (kw) | 8.04 |
| Injection System |
|
| Injectors (set) | 2 |
| Diameter of Screw (mm) | 60 or 70 |
| L/D Ratio of Screw | 23 |
| Max Injection Capacity (cc) | 920-1100 |
| Injection Pressure | 0-1100 |
| Injection Speed (cm/sec) | 10 |
| Rotating Speed of Screw (r.p.m) | 0-190 |
| Temperature Control (section) | 4 |
| Electricity Consumption |
|
| Heater Barrel (kw) | 12.1 |
| Motor for Injector Moving (kw) | 1.5 |
| Heating Board of Mould (kw) | 102.4 |
| Hydraulic System (kw)(50hz) | 59 |
| Vacuum Pump (kw) | 2.2 |
| Cooling Fan of Barrel (HP) | 1 |
| Total Electricity (kw) | 180 |
| Oil Tank Size (L) | 1000 |
| Machine Weight (kg) | 29000 |
| Machine dimension(m) | 8.5 *4.5*2.76 m |
Detailed Description :
Its daily productivity is 2*18*8*24=6912 pairs by theory calculation.for 1 pair in 1 mould,For 2pairs in 1 mould is 6912*2=13824 pairs per 24hours
Note:
1.Its product range includes EVA mid-soles,rainboots,slippers,sandals, clogs,sport protectors and various kinds of shoes and shoe accessories and depends on the EVA shoe mould.
2.The clamping force can be increased from 150 to 210 tons, according to your requirement.

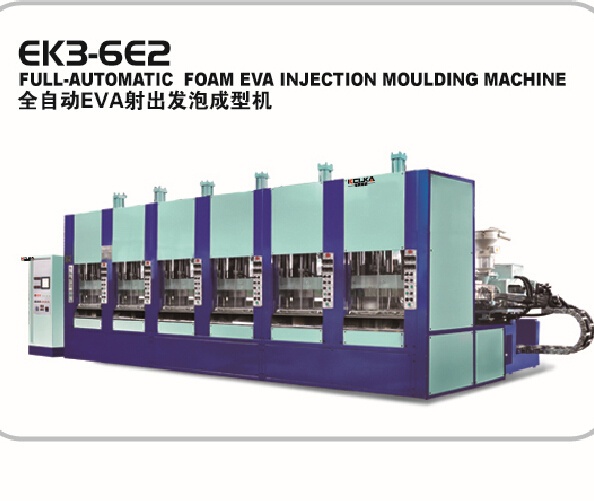

3.The foam EVA injection molding machine is fully hydraulic and automatic operation except taking out product.
4.It is PLC controlled, its humanized parameter computer operation interface provide quick and exact terms of production.
Character:
1.Low operation height,Operation height in accord with human engineering
2.Extra height opening stroke
Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and
3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM
4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly
5.Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design
6.No need water circulation for mould station
7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space.
Term:
All quotations are without value-added tax.
Delivery date:Within 60 days After receiving the 30% earnest money
Payment term: Advance payment at order 30%, 70% before shipment
Delivery State: Machines were taken apart and packed in suitable package that fits container shipping
For the machine experiment and installation, our technician will be sent to your
factory. And you are requested to afford the cost of their trip and payment .
Also Our technician will manage all the machine things for you and at the same time train your workers on how to use and maintain the machine.
Guarantee Time: One-year warranty and lifelong service. During guarantee period, the cost of any spare parts or new accessory should be borne by the seller, and the freight for delivery of spare parts will be on the buyer's account.
New KCLKA machine Manufacture Limited Corporation, a subordination of Sheng Da Machine Manufacture institution, is a high-tech-exploring and designing company, specializing in making various kinds shoe machines.
Jinjiang KCLKA Machinery Manufacture Co., Ltd is located in Jinjiang City which is called the "Shoes Industry City" in China. Our company specializes on shoe-making machines together with researching, manufacturing and technology support. The innovation is the soul of our company, every member in KCLKA is deeply aware of that. We hold the idea of "Creating value, Breaking through achievement and Leading innovation". Our company has made great contributions to this field of our country. Right now, there are already more than 20, 000 square meters modern workshop in our factory.
Our company has been absorbed in the machine making soles, sandals, slippers, strap, rain boots, etc. For instance, Full automatic EVA injection moulding machine and PVC/TPR rotary injection moulding machine etc. Our machine is suitable for many sorts of material, such as EVA. TR, TPR, TPU, E-TPU, PVC.
Our company provides high quality merchandises, professional services and advantageous price. During the innovation and competition, we have established the sales structure in and out of China and also fulfilled our technique service system. We have many sales service networks in Beijing, Shanghai, Shenyang, Chengdu, Shijiazhuang, Guangzhou, Dongguan and Wenzhou. We have built our correspondent networks in overseas countries, with branches in Thailand, Vietnam, Malaysia, Iran, the Middle East, South America and other countries and other regions.
In recent years, we successfully export products to Indonesia, Nigeria, Vietnam, Mexico, Ethiopia, Guatemala, Russia, Poland, Turkey, Iran, India, Algeria, South Korea, Egypt, etc. All of our products are well-assessed by our clients.
"We walk alongside the world", we will constantly pursuit the perfectness. Hereby, we sincerely welcome all friends from all over the world, to be KCLKA guests and start the cooperation with us.
