High-Quality EVA Slipper Shoe Products Injection Mouldingmachine

High-Quality EVA Slipper Shoe Products Injection Mouldingmachine
Price: US $ 88000set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,Western Union

Technical Description
Mould Closing System

Work Stations6
Clamping  Force  (kg)170000-230000
Mould-Opening Stroke (mm)350
Standard Thickness of Mould (mm)100-210-230
Mould Plate Size (mm)2(290*550)
Height of Injection Nozzle (mm)60
Method of Heatingelectric
Heating Power (kw)8.04
Injection System

Injectors (set)2
Diameter of Screw (mm)60/70
L/D Ratio of Screw23
Max Injection Capacity (cc)920-1100
Injection Pressure1100
Injection Speed (cm/sec)10
Rotating Speed of Screw (r.p.m)0-190
Temperature Control (section)4
Electricity Consumption

Heater Barrel (kw)12.1
Motor for Injector Moving (kw)1.5
Heating Board of Mould (kw)76.8
Hydraulic System (kw)(50hz)40.5
Vacuum Pump (kw)2.2
Cooling Fan of Barrel (HP)1
Total Electricity (kw)50/70/150
Oil Tank Size (L)1000
Machine Weight (kg)23800
Machine size (m)6.5*4.5*2.8
Output ( Pairs/day)5000~800010000

Feature:

1.Low operation height,Operation height in accord with human engineering
2.Extra height opening stroke

Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and
3.available for 2plates mould,Mould thickness adjusting mechanism
Mould adjusting scope: 100-200MM

4.Rapid mould opening ,Act by toggle mechanism which opens the mould rapidly
5.Speedy injector movement
Driven by linear-track, allowing speedy moving and precise positioning,Energy saving design

6.No need water circulation for mould station
7.Space saving design,Put oil tank together with injection base, which makes the structure compact and saves more space.

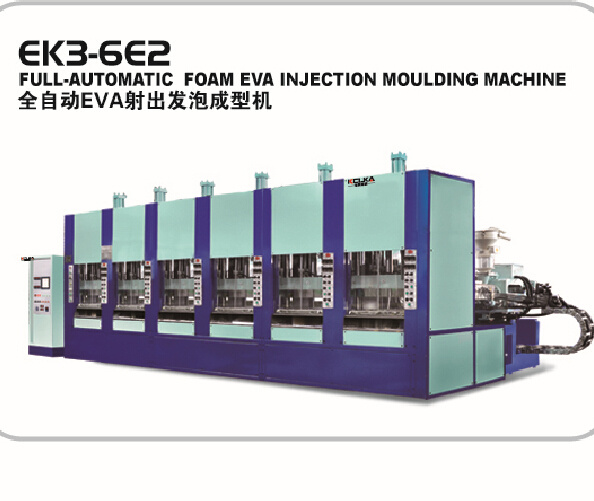

Prod Model: EK3-6E2
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Working Station: 6 Stations
Material: EVA
Working Type: Injection Moulding
Use: All Kinds of EVA Products
Type: Injection Blow Molding
Structure: Vertical
Plastic Type: Thermoplastic
Plasticizing Way: Screw Type
Clamping Way: Hydraulic
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
New KCLKA machine Manufacture Limited Corporation, a subordination of Sheng Da Machine Manufacture institution, is a high-tech-exploring and designing company, specializing in making various kinds shoe machines.

Jinjiang KCLKA Machinery Manufacture Co., Ltd is located in Jinjiang City which is called the "Shoes Industry City" in China. Our company specializes on shoe-making machines together with researching, manufacturing and technology support. The innovation is the soul of our company, every member in KCLKA is deeply aware of that. We hold the idea of "Creating value, Breaking through achievement and Leading innovation". Our company has made great contributions to this field of our country. Right now, there are already more than 20, 000 square meters modern workshop in our factory.

Our company has been absorbed in the machine making soles, sandals, slippers, strap, rain boots, etc. For instance, Full automatic EVA injection moulding machine and PVC/TPR rotary injection moulding machine etc. Our machine is suitable for many sorts of material, such as EVA. TR, TPR, TPU, E-TPU, PVC.

Our company provides high quality merchandises, professional services and advantageous price. During the innovation and competition, we have established the sales structure in and out of China and also fulfilled our technique service system. We have many sales service networks in Beijing, Shanghai, Shenyang, Chengdu, Shijiazhuang, Guangzhou, Dongguan and Wenzhou. We have built our correspondent networks in overseas countries, with branches in Thailand, Vietnam, Malaysia, Iran, the Middle East, South America and other countries and other regions.

In recent years, we successfully export products to Indonesia, Nigeria, Vietnam, Mexico, Ethiopia, Guatemala, Russia, Poland, Turkey, Iran, India, Algeria, South Korea, Egypt, etc. All of our products are well-assessed by our clients.

"We walk alongside the world", we will constantly pursuit the perfectness. Hereby, we sincerely welcome all friends from all over the world, to be KCLKA guests and start the cooperation with us.
