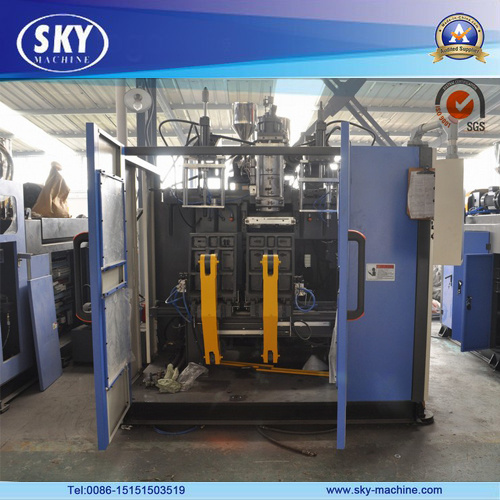

High Quality Extrusion Blow Moulding Machine

High Quality Extrusion Blow Moulding Machine
Price: US $ 30000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
High Quality Extrusion Blow Moulding Machine
1, Model: SKY-70D
2, Product volume: 5L
3, Computized

SKY70D-5L High Quality Extrusion Blow Moulding Machine, This double station machine can be equipped with 1 to 4 fold die head, For the production of articles from 5ml up to 5liters made out of PE, PP, PETG and PVC, suiting for the packaging of cosmetics, petroleum, chemicals, pharmaceuticals, Food products and toys. This machine is designed for producing high quality articles With small size.

Description:
For bottles from 5ml up to 5L
With 1 to 4 fold die head
Max clamping force 65KN
Linear rolling motion guider equipped
Easily operation by PLC+touch screen
Imported hydraulic component
Offer two layer, three layers and visual stripe
Equiped with automatic deflashing funtion
Parison programmer can be adopt

Parameter:
Dry cycle 700*2 PCS/H
Screw diameter 70mm
Screw L/D ratio 24
Screw drive power 22KW
HDPE output 90KG/H
Oil Pump Power 7.5KW
Clamping force 65KN
Mold stroke 164-524mm
Template size 320*380mm
Max Die diameter 140mm
Machine size3.2*2.2*2.5m
Machine weight 7.8T
Prod Model: SKY-70D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: HDPE,LDPE,PP,PS,PVC,TPV
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Raw Material: HDPE
Computerized: Computerized
Certification: CE
Type: Extrusion Blow Molding Machine
Zhangjiagang Sky Machine Co., Ltd is one of the world's leading beverage machinery manufacturers. With over ten years of manufacturing experience, we can offer the following production lines and equipment: Bottled Water Production line, Juice production line, Barreled Water Production, Beverage Filling Machines, Water Treatment Equipment, Fruit Juice Beverage Auxiliary Equipment, Carbonated Beverage Auxiliary Equipment, Latter Packaging Equipment, and Bottle Blowing Machines. Our vast line of beverage machinery is available for countless users to meet all your customers' needs.

With our self-sufficient import and export qualifications, we can satisfy all global customers with our high-quality beverage machinery and perfect performances in both our financial standings and practical services. Throughout our years in the industry, our company has earned an admirable reputation across the globe for our advanced technology, superior quality products, and efficient after-sale service. Our beverage machinery, including Beverage Filling Machines and Soft Drink Filling Machines, has been exported to many countries, such as Japan, Russia, Indonesia, and Malaysia etc.

Quality of our beverage machinery is our primary focus. Working by the principle of "Quality First, Customer First", we take the utmost care at every stage of the manufacturing process, thereby assuring our customers a totally hassle-free performance for years of operation. We have gained vast recognition and acclaim from all our valued customers for the beverage machinery and services that clearly exceed the expectations of our clients'.

Excellent materials are very essential to our high quality beverage machinery. Our Beverage Filling Machines, Soft Drink Filling Machine, etc. Are made from top grade SUS304 and SUS316, all electric elements adopted by world-known and trusted brands such as Omron, Siemens, Mitsubishi, and Schneider. All parts are processed by CNC lathe and milling machines, guaranteeing the precision of every product.

We sincerely invite businesses around the world to establish a professional relationship with us based on trust, benefits and the promising possibility for future development. Providing high quality Beverage Filling Machines, Soft Drink Filling Machine, etc. For our customers is our endless pursuit.
