Mould Manufacturers and Factories

Home Mould Products High Quality Pneumatic Cylinder Screen Printing (TM-300E)

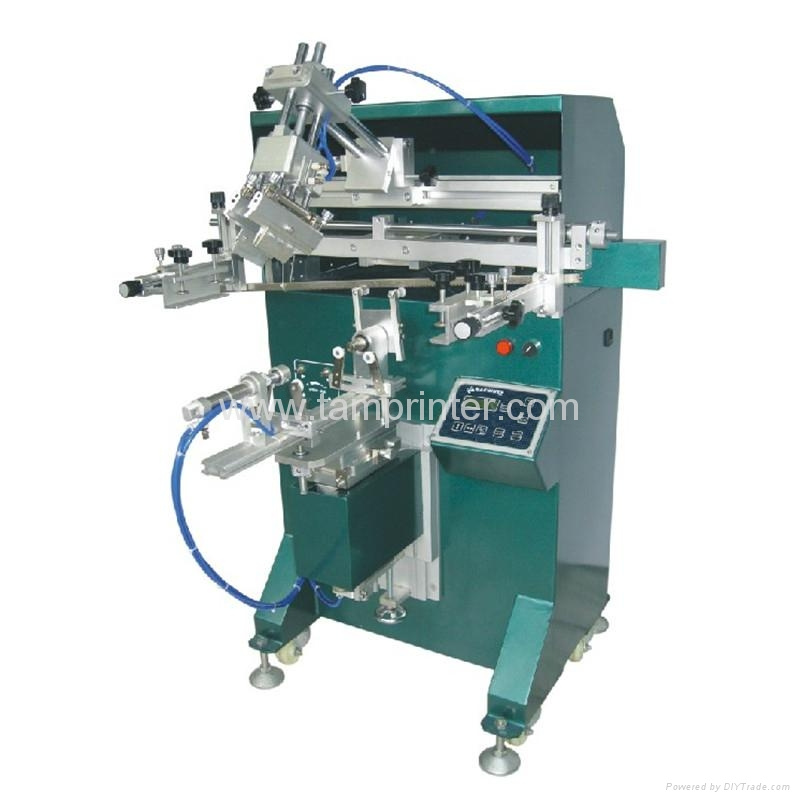

High Quality Pneumatic Cylinder Screen Printing (TM-300E)

High Quality Pneumatic Cylinder Screen Printing (TM-300E)
Price: US $ 1890/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Applications:

It mainly applies to the printing process and pre-postpress of plastic and hardware products. Our equipment is also applicable to other material as glass, ceramic, wood, leather, cloth, etc.

Features:
1. The screen printers with microcomputer control, utility function, easy setting and operation.
2. Adopt the component from Germany, the function can be trustiness.
3. The oil return and scraper double mould, meet the every kind of the printing requirements.
4. The printing route and the speed can adjustment, satisfied with the all kinds of printing requirements.
5. The slide speed can adjustment independently, it is convenient and fast.
6. Use the import axes and sleeve made the screen scraper placidity slide printing.
7. Can balance the scraper by itself, to ensure the printing pressure equipment.



Random accessories:

One Tool box one piece of Chinese specifications one set of tongs one set of Allen key. One set of Philip's head screw, one of the located air cylinder.




Machine working video:
http://www.tamprinter.com/sdp/1963483/4/pd-6621680/11667825-2570314/TM-300E_Pneumatic_cylindrical_screen_printing.html

Max printing diameter

≤95mm

Work piece  inclination

About +14°---- -7°

Max printing speed

1200pcs/hr

Air consumption

110litre/min(6bar)

Power

110/220V 60/50Hz

Dimensions (LXWXH)

700X760X1300mm

Weight

80kg

Prod Model: TM-300E
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Printing Diameter: Less Than 95mm
Work Piece Inclination: About +14 Degree;---- -7 Degree;
Max Printing Speed: 1200PCS/Hr
Air Consumption: 110litre/Min(6bar)
Power: 110/220V 60/50Hz
Dimensions (Lxwxh): 700X760X1300mm
Weight: 80kg
Style: Screen-process Printing Press
Structure: Flat-bed cylinder press
Color & Page: Single-Colour Printing Press
Print Interface: USB2.0
System Supported: Windowsxp32
Type: Cylinder Screen Printers
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2005. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.

Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Major market: America market.

Business scopes:

1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer );

2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;

3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts;

4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc;

5. Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam;

6. Import and export business of the above items.


Applications:
It mainly applies to the printing process and pre-postpress of plastic and hardware products. Our equipment is also applicable to other material as glass, ceramic, wood, leather, cloth, etc.

Involved in the industry:
Electronics, toys, gifts, clothing, stationery, cosmetics, washing products, chemicals, food, health product, pharmaceutical and packaging etc.

Advantages:

1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.

2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.

3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.

Our first-class products and considerate services have won more than 80 countries, acceptance in Europe and the United States, Canada, Southeast Asia, the Middle East and other customer, and we enjoyed a high reputation in the market. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.


The value rules of our company:
Our vision: to become well-known brands in the industry.

Our belief: excellence, legendary achievements.

Our aim: to sustained profitability, the Foundation Changchun.

Our customer concept: improve customer satisfaction, and create a win-win situation.

Our product concept: safety, energy saving, environmental protection, easy to use.

Our opinion on talent: loyalty, integrity, professional spirit, dedication.

Our style: leading front among the people enough to be the first rate of people, self-discipline enough to convince the people.

Our criteria: compliance with commitments, do what we say.

Our motto: self-discipline to learn, know one line.

Our slogan: Healthy Living, happy work.

To me, the past is black and white, but the future is always color.
