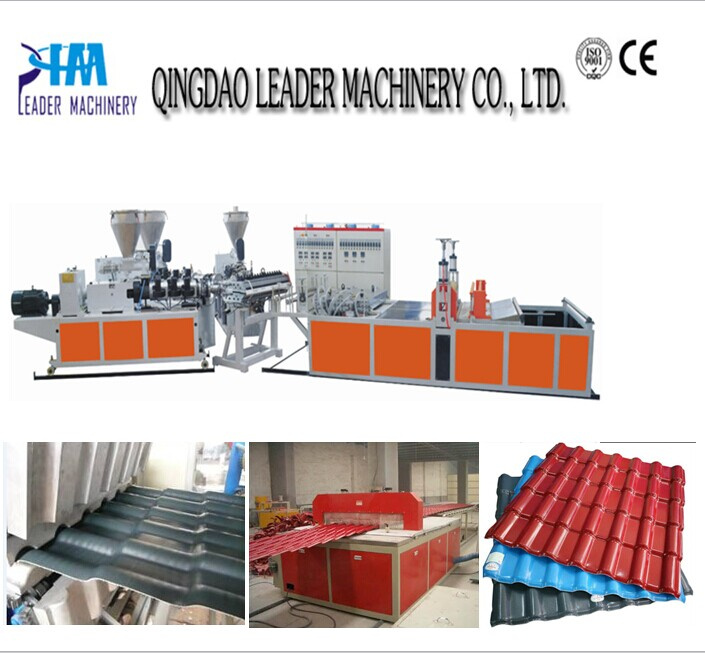

High Quality Roof Machine Roof Making Machine
Price: |
US $ 135000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Pvc+PMMA glazed tiles processing machine for roofingPART 1: INTRODUCTION AND APPLICATION:Wave plate has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.
PART2: SHEET SPECIFICATION:1. Width: 720, 880, 1040mm
2. Thickness: 1-4mm
3. Can be co-exrtusion ABA, AB, ABC
4. ASA or PMMA co-extrusion
PART 3: PRODCUTION FLOWS:High speed mixer--conical twin screw extruder--co-extruder--co-extrusion die head--embossing and cooling rollers--forming machine--saw cutting machine--stacker--pneumatic pressing machine for ridge tiles moulds
PART 4 MAIN TECHNICAL DATAExtruder model | SJSZ80/156 + SJ65/30 |
Capacity | 350kg/h+50kg/h |
Sheet specifications | Width: 720/880/1040mm Wave pitch:160mm Wave length:220mm Wave height:30mm Thickness:1-3mm |
Emboss rollers | 1400mm*Φ300mm |
T-die head | JC-Times brand |
Corrugation forming machine max haul off power | 20KN |
Haul off speed | 0.3-5m/min |
Cutting machine | Pneumatic saw cutting |
Stacker | 6m |
Ridge tiles forming machine | With end cover, slope ridge for step roof, T ridge for step roof, top ridge for step roof |
Other accessory machines | High speed mixer, plastic crusher, plastic pulverizer etc |
PART 5 DELIVERY, PAYMENT AND OTHERS1. delivery time: 60 working days after receiving the deposit 2. payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.3. Packing details: wooden pallets and cases with stretching films 4. Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.5. Service: we will send 1-2 engineers to customers' factory to help them install, test the machine and also train their workers, but customers should bear the round tickets, accommodation, and salary etc.
Prod Model: |
SJSZ80/156 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Extruder Model: |
Conical Twin Screw 80/156 |
Sheet Width: |
720,880,1040mm |
Sheet Thickness: |
1-4mm |
T-Die Head: |
Jc-Times |
Calibrating Board: |
Hydraulic Control |
Main Electrical Components: |
ABB, Omron, Rkc, Schneider, FUJI, Delix etc. |
Guaranteed Time: |
12months |
Quality Control: |
Customers Come to Our Factory to Check |
Product Type: |
PVC Board |
Board Layers: |
Multilayer |
Automation: |
Automatic |
Computerized: |
Computerized |
Certification: |
ISO9001:2008 |
