Product Description
Description:
Rubber floor tile vulcanizing press machine is specially producing rubber floor tile, each layer vulcanizing two sets of mould, turns configuration of sulfide, can effectively improve the production efficiency. At the same time configuration manual push-pull mould device, it is more convenient to operate.

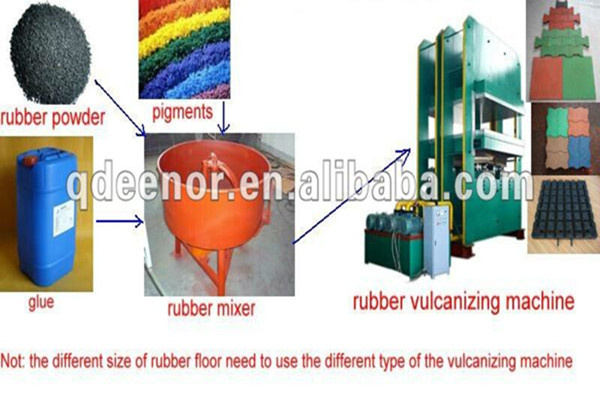

The material of tile is rubber powder/granule, glue, pigment. After you order this type of machine we will provide you the details of formula.
All of our tile making machine include one top mould and two bottoms moulds with
We can also design and produce according to customer's requirement. We can product all kinds of non-standard rubber machinery, we can design by your requests. If you are interested in our products or have any questions please contact us freely. We will try our best to meet your requirement at first time.
Model | XLB-D/Q 350X350X1(2) | XLB-D/Q 400X400X2 | XLB-D/Q 500X500X2 | XLB-D/Q 600X600X2 | XLB-D/Q 750X850X2(4) |
Nominal pressure(MN) | 0.25 | 0.50 | 0.60/0.80 | 1.00 | 1.60 |
Plate size(mm) | 350X350 | 400X400 | 500X500 | 600X600 | 750X850 |
Plate clearance(mm) | 125 | 125 | 125 | 125 | 125 |
Working layer number | 1(2) | 2 | 2 | 2 | 2(4) |
Plate unit pressure(Mpa) | 1.56 | 3.1 | 3.2 | 2.8 | 2.5 |
Piston stroke(mm) | 250 | 250 | 250 | 250 | 250(500) |
Motor power(kw) | 3.0 | 2.2 | 2.2 | 2.2 | 3.0 |
Overall dimension(mm) | L | 1200 | 1400 | 1650 | 1410 | 1900 |
W | 400 | 550 | 600 | 680 | 950 |
H | 1300 | 1500 | 1600 | 1750 | 2000 |
Weight(kg) | 800 | 1300 | 1500 | 3500 | 6500(7500) |
