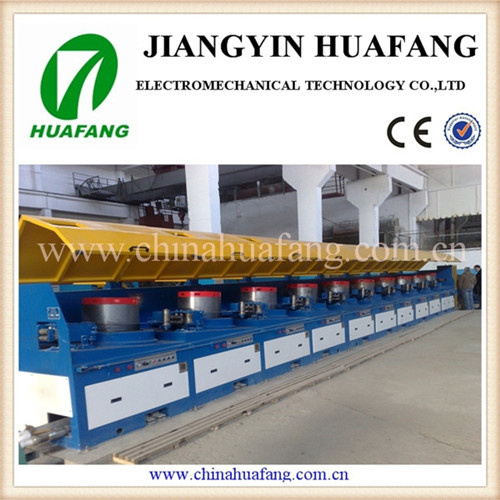

Technical parameter of high quality straight-line wire drawing machine:
1, capstan: Φ560;
2, max. Inlet wire: Φ6.5mm;
3, min. Outlet wire: Φ1.7--2.0mm;
4, designed speed: 15m/s;
5, actural speed: 10m/s;
6, total reduction: 90.5%;
7, spoole: DIN1000;
8, motor: AC 37Kw inverted motor;
9, noise: 80dB(A);
10, operation direction: From left to right.
Located in the south of Jiangyin city of Jiangsu Province, Jiangyin Huafang Electromechanical Technology Co. Ltd, Ltd. Is a rapidly developing group enterprise mainly engaged in the R&D and manufacturing of mechanical equipment. Huafang boasts top-notch technicians, advanced processing apparatus and testing methods. Ever since the establishment of company, we have been always keeping a close eye to the development trend of the mechanical skills in the international wire rods industry, and drawing on the advanced technologies from both home and abroad, to provide customers with high quality mechanical equipment with high performance/price ratio.
