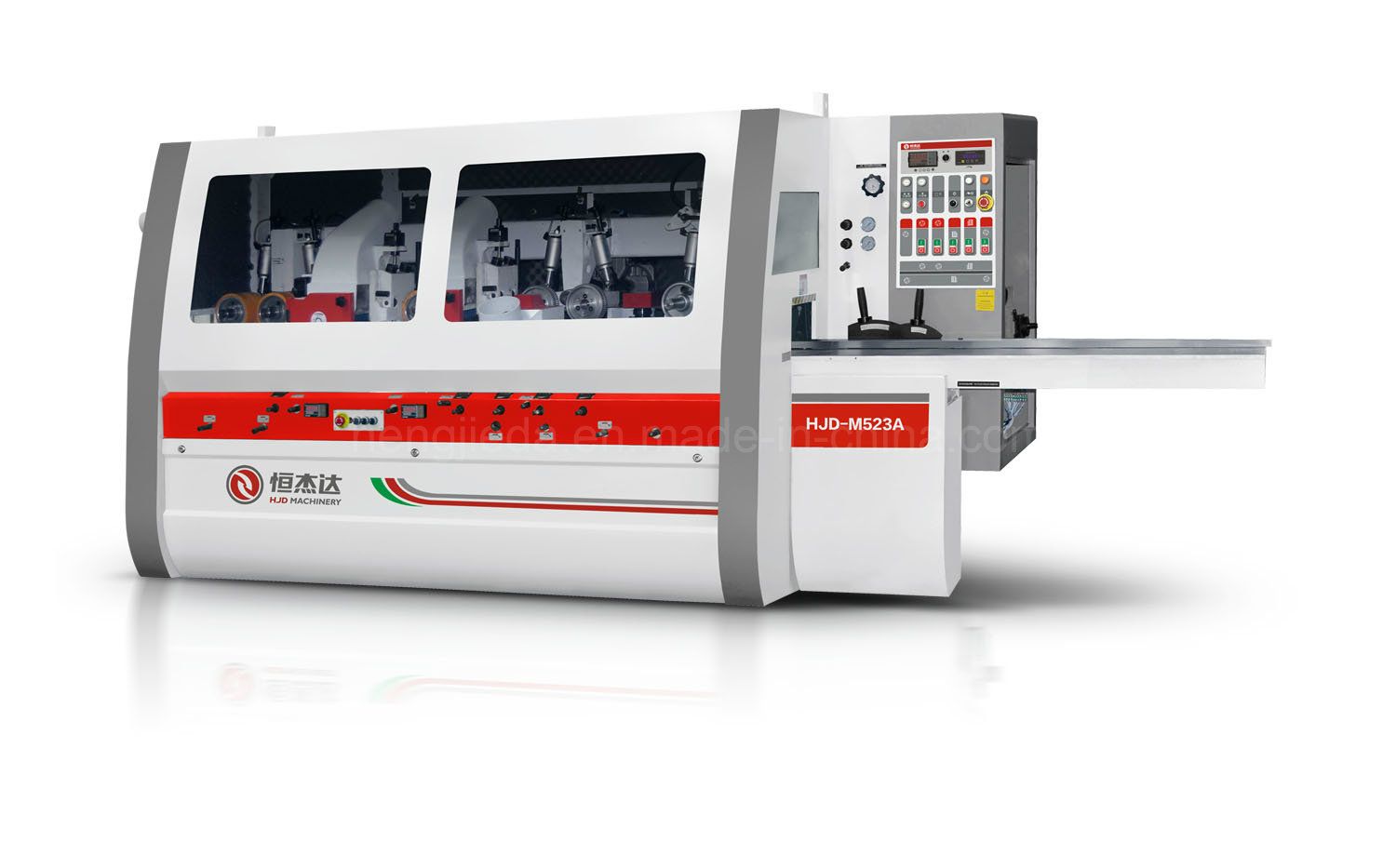

High Speed 40m/Min Four-Side Moulder Plander Woodworking Machine(HJD-M523D)
1. Each principal axis adopts independent drive to electric motor, features strongercutoff force
2. Adjusts for principal axis integrates at central or frontal side, features easy operation
3. Special hardware mold steel countertops durable
4. Full rigid work surface easy maintenance
5. Equips with auxiliary unit alarming lack of material, it effectively improvises smoothfeed-in while lack of material
6. Active roller below improves feeding effciency
7. Equips with world-class electric element, features superior stability
8. With fully sealed safety protective cover, this effectively avoids flying logging debrisand noise blocked, and evenacts as safety protetion
9. Pneumatic pressing feeding roller section by section by section adjusts for pressing force, it favors forsmooth feed-in of dfferent thickness of timber
10. Adopts central charging system, features convenience and promptness
11. The universal shaft system is designed specislly for machining various complicated products
machine parameter
Working width
25-230mm
Working Thickness
8-150mm
Working Table Length
1950mm
Feeding Speed
7-28m/min
Main Shaft Diameter
40mm
Main Shaft Revolution
6000r/min
PneumaticSource Pressure
0.6MPa
Motor Power
1st Lower Shaft
7.5kw/10HP
1st Upper Shaft
11kw/15HP
Right Vertical Shaft
7.5kw/10HP
Left Vertical Shaft
7.5kw/10HP
Top Spindle Lifting Motor
/
Left shaft adjusting
/
2nd Upper Shaft
7.5kw/10HP
2nd Lower Shaft
7.5kw/10HP
Universal spindle
/
Motor Power
Feeding beam lifting
0.75kw/1HP
Feeding motor
5.5kw/7.5HP
General Power
47.25kw/63HP
Hydraulic feed motor
/
Cutter Diameter
Right Vertical Shaft
φ125-φ180mm
Lelf Verticl Shaft
φ125-φ180mm
1st Lower Shaft
φ125
1st Upper Shaft
φ125-φ180mm
2nd Upper Shaft
φ125-φ180mm
2nd Lower Shaft
φ125-φ180mm
Universal spindle
φ140mm
Remarks/mm
Feeding Wheel Diameter
φ140mm
Dust outlet Diameter
φ140mm
Physical Dimension(L×W×H)
3710×1635×1735mm
Jasmine
Foshan HJD Machinery Manufacturing CO.,LTD
Mobile: +86 13425939049
Foshan City Shunde District Heng Jie Da Machinery Manufacturing Co., Ltd. is located in Beijiao Town, Shunde District, Foshan City, Guangdong Province, adjacent to Lunjiao Town which is known as "China Woodworking Machinery Town". It is a high-tech enterprise specializing in production of woodworking machinery and has many senior engineers who have been engaged in R&D of woodworking machinery for several decades. This factory covers 150000 Square meters and with over 10 years rich experience in this woodworking machinery line. The equipment comes from Taiwan, Germany and Italy.
In the tenet of "Develop by Credit, Survive by Quality", the company makes constant improvement on parts and guarantees that the accuracy of every working procedure is in the best state by right of its precision machining equipment, sound detection equipment and solid technical power. The key parts are imported from Europe, America, Japan and Taiwan, which ensure the high precision of the whole machine, and make a guarantee for international top quality and cheap price.
With the aim of manufacturing internationally first-class wood working machinery by advanced technology, The company has passed the ISO9001: 2008 international quality system certification, and superb technical woodworking machinery manufacturing world-class goal. The company's products have obtained European CE certification, the company's products are sold to the East, Scandinavia and South America. Moreover, in the corporate philosophy of "Quality First, Service Supreme", it sincerely provides top-quality products and perfect after-sales services for customers. Welcome to contact us for common splendid future!
