Features
1, High speed, muting operational screw and linear guide, low thermal deformation and high precision.
2, Triaxial linear guide, high positioning accuracy, heavy-load cut, high speed displacement to save un-processing time.
3, The herringbone column design increase the stability of the machine
4, The wide base with high rigid guarantees the stability of the machine and not to deform
5, The superior cast-iron is used to stable material mixture which is not deformed to guarantee the quality of the machine
6, The machines are elaborate and high-speed in operation which is suit for various processing in different filed
|
Model |
VMCT-858H |

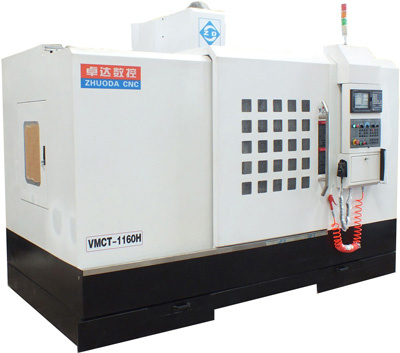

VMCT-1160H |
|
X/Y/Z travel |
800/580/600mm |
1100/600/600mm |
|
Spindle nose to table surface |
150-750mm |
150-750mm |
|
Spindle center to column surface |
550mm |
650mm |
|
Worktable size |
950*550mm |
1300*600mm |
|
Maximum table loading capacity |
600kg |
1000kg |
|
Type of spindle |
BT40 |
BT40 |
|
Spindle speed |
50-800rpm |
50-800rpm |
|
Spindle horse power |
7.5kw |
11kw |
|
X/Y/Z horse power |
2.0kw/2.0kw/2.0kw |
3kw/3kw/3kw |
|
(X/Y/Z)G00 rapid traverse |
18/18/15 m/min |
18/18/16 m/min |
|
G01cutting feed |
1-10000 mm/min |
1-10000 mm/min |
|
Automatic tool changer system |
Carousel/Arm |
Carousel/Arm |
|
Number of tools |
16/24 |
16/24 |
|
Size of machine (L*W*H) |
2660*2220*2600mm |
2750*2400*2700mm |
|
Setting accuracy |
± 0.005/300 |
± 0.005/300 |
|
Repeat setting accuracy |
± 0.003/300 |
± 0.003/300 |
|
Weight of the machine |
6500kg |
8500kg |
Chengdu zhuoda numerical control technology Co., Ltd is a professional manufacturer of different types of CNC mahining centre, integrating development and production together. Our main product include vertical CNC machining centre, vertical CNC milling machine, gantry CNC maching, 4axes CNC machine cntre and 5 axes CNC machine centre.
Chengdu zhuoda was establed in 2006, and after 6 years' development, Chengdu zhuoda has build a long-term cooperative relationships with many stated-owned enterpries like ULVAC orient (chengdu)Co., Ltd, chengdu aorotech manufucturing Co., Ltd etc.
From now on, we have 48 employees and three office in sichuan province. We are not a big manufacturer, but we are a professional manufacuter. We firmly believe in the tenet of "Only be professional that we can be better, only be honest that we can go further", and welcome you to be our friend.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us and we will reply your enquiry within 24 hours. We are looking forward to forming successful business relationships with new clients around the world in the near future.
